12/24V 180W Large Power DC Motor Professional Regulator Driver Board CW CCW Current Controlled by PID
Features:
- Support the motor voltage 9V to 24V, maximum continuous load current 10A (for 30 seconds), 7.5A (a long time), 10A fuse
- Support the potentiometer, 0 to 5V analog signal with TTL level,-5V ~ 5V differential analog signals, RS485 variety of control modes
- Motor loop current PID regulator control, current control accuracy of 0.1A, to support motor soft-start, start current size, the size of the braking current can be configured. Stall current does not exceed the rated current of motor stall, you can automatically adjust the motor circuit to protect the motor
- Support the the motor reversing two-way speed control support PWM, torque, closed loop variety governor
- Supports up to 18kHz PWM frequency, this frequency is close to the human ear hearing ceiling, motor speed clamor cry
- A minimal PWM deadband, the effective range of only 0.5us, PWM: 1.125kHz, 0.2% to 99.8% when 18kHz, 1% to 99.8%
- Support RS485 multi-machine communication control block driver board (a host through two signal lines); support 9600 ~ 115200bps variety of baud rate, slave address supports 128
- Support the motor reversing limit external trip switch to stop the forward and reverse
- The extremely small size, only 5.5cm × 5.5cm
Package Contents:

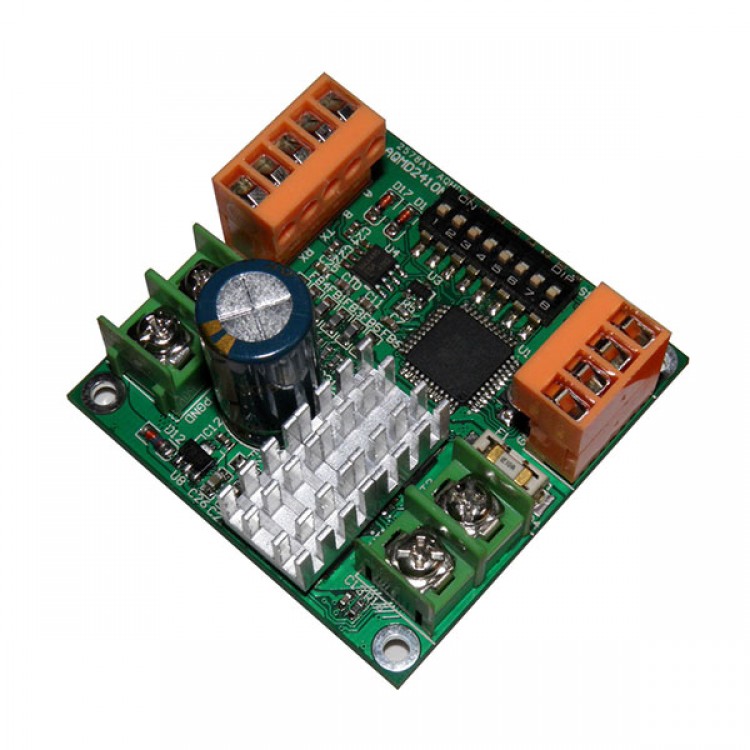

- 1pcs AQMD2410NS DC motor drive board
