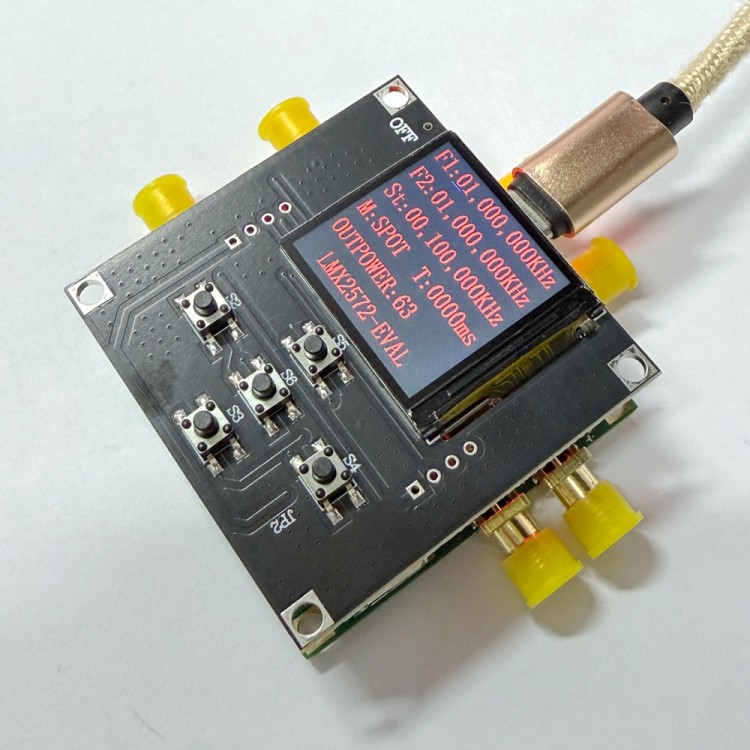

12.5MHz-6.4GHz ADL5801-LMX2572 PLL Down Frequency Mixer Module with STM32 Main Control Board for Spectrum Receiver

Description:
- Function: includes down mixer unit channel and direct local oscillator output channel.
- Frequency range: 12.5M-6.4GHz (local oscillator can be directly used as a signal source)
- Integrated ADL5801 down mixer (including input 10M-6G RF balun) and LMX2572 phase-locked loop local oscillator

Specification:
- Local oscillator LO output frequency range: 12.5MHz - 6.4GHz
- RF input frequency: 10MHz - 6GHz
- Mid-frequency LF output: LF-600MHz
- Frequency mixing loss: 0dB (The RF input and IF output of the active mixer are both amplified.)
- Connector type: SMA female connector

Package Included:
- 1 x Frequency Mixer Module
- 1 x STM32 Main Control Board
