- The product is a real-time data acquisition module testing 12-channel AC current.
- Use high precise current transformer to isolate and sense signal.Standard RS-485 bus interface & MODBUS-RTU protocol.
- Widely used in street lamp monitoring,automatic inspection of production,LED light aging testing.
Features:
- 24-channel synchronous sampling,independent AD,0.1s sampling and updating all channel
- High precise,12 bit AD sampling
- Good stability
- Current through-hole input,convenient.

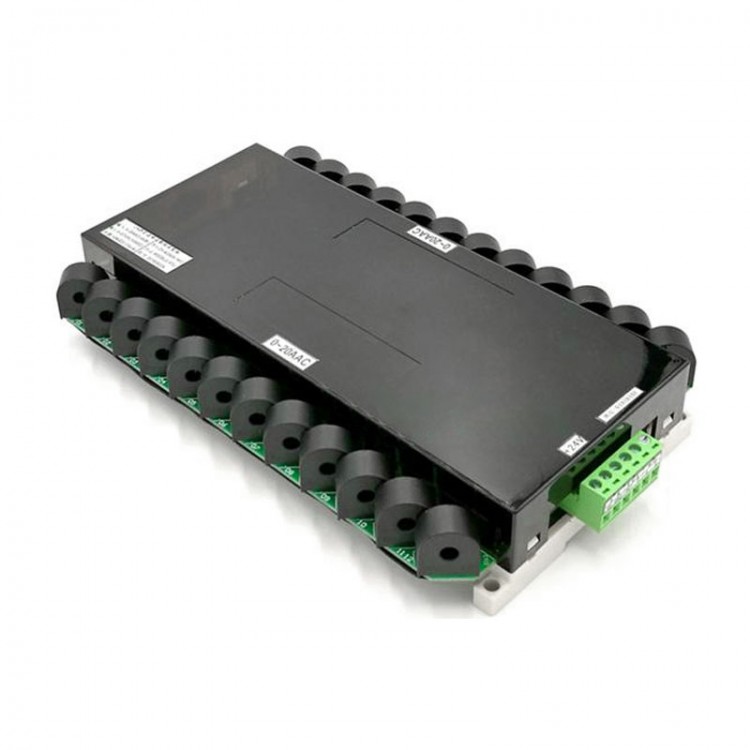

Model: ZH-40122A (12-channel current,through-hole input)
Parameter:
- Accuracy:0.5%FS
- Current range:0-5A/0-10A/0-15A/0-20A AC
- Current input hole:Φ5mm
- Working temperature:-20℃～+60℃
- Data update time:100mS
- Isolated pressure resistance:>2500V DC
- Auxiliary power supply:24V DC(15V~30V)
- Rated power consumption:2W
- Output interface:RS-485
- Data output:24-channel AC current
- Communication baud rate:4800,9600,19200,28800 bps
- Data format:no testing,8 data bits,1 stop bit.
- Communication protocol:MODBUS-RTU protocol
Note: Aperture of mutual inductor is 5mm,the current input passes mutual inductor through-hole.The current cable and aperture must be less than 5mm.
