5G WiFi Module 2.4G&5G Dual Band IoT Development Board for Flipper Zero WiFi Deauther Expansion

5G WiFi Module 2.4G&5G Dual Band IoT Development Board for Flipper Zero WiFi Deauther Expansion

Description:

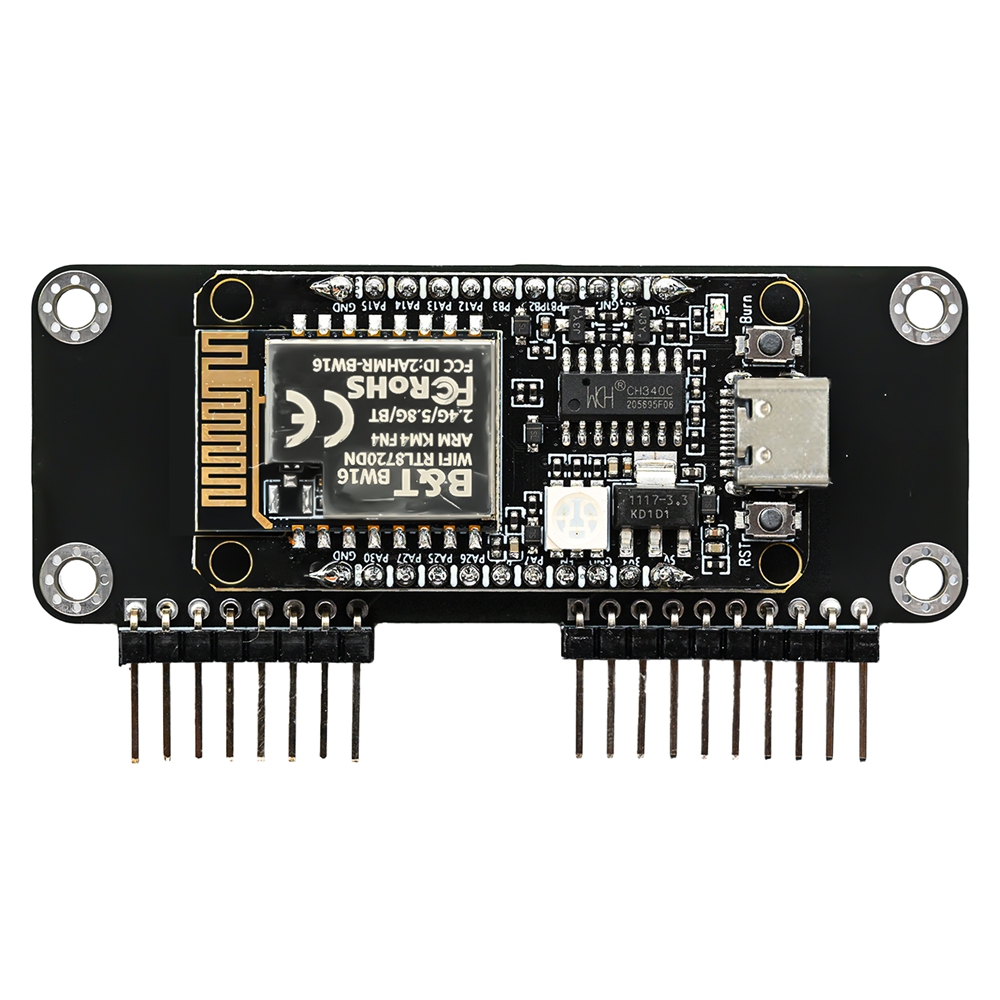

- This module is built on the BW16 dual-band WiFi development board, designed specifically for Flipper Zero GPIO expansion. It comes pre-flashed with 5G WiFi Deauther firmware, supporting both 2.4GHz and 5GHz frequency bands. Perfect for ethical hacking, network testing, and cyber security learning.

Features:
- Flipper Zero Compatible - Seamless GPIO connection, plug and play
- Pre-flashed with 5G WiFi Deauther Firmware - Ready to use out of the box
- Supports 2.4GHz & 5GHz WiFi - Broader testing and attack scenarios
- Based on BW16 Module - Stable performance and reliable connectivity
- Compact and Low Power - Ideal for portable testing setups
- Upgradeable Firmware - Stay up to date with the latest features

Specification:
- Applicable module: BW16
- Encapsulation: DIP-22 (2.54 space standard pin)
- Product size: 50.4 x 25.4mm
- Antenna type: onboard PCB antenna
- Spectrum range: 2400 - 2483.5MHz or 5180 - 5825MHz
- WiFi: support 802.11 a/b/g/n
- Bluetooth: BLE5.0
- Working temperature: -40℃ to 85℃
- Storage temperature: -40℃ to 125℃, <90%RH
- Power supply range: power supply voltage of 5V, current > 500mA
- Supported interface: UART/GPIO/ADC/PWM/IIC/SPI/SWD
- IO ports number: 13 x GPIOs including (TX0/RX0 and TX1/RX1)
- Safety: AES/DES/SHA
- Flash: default 2MB

Package Included:
- 1 x 5G WiFi Module

Note:

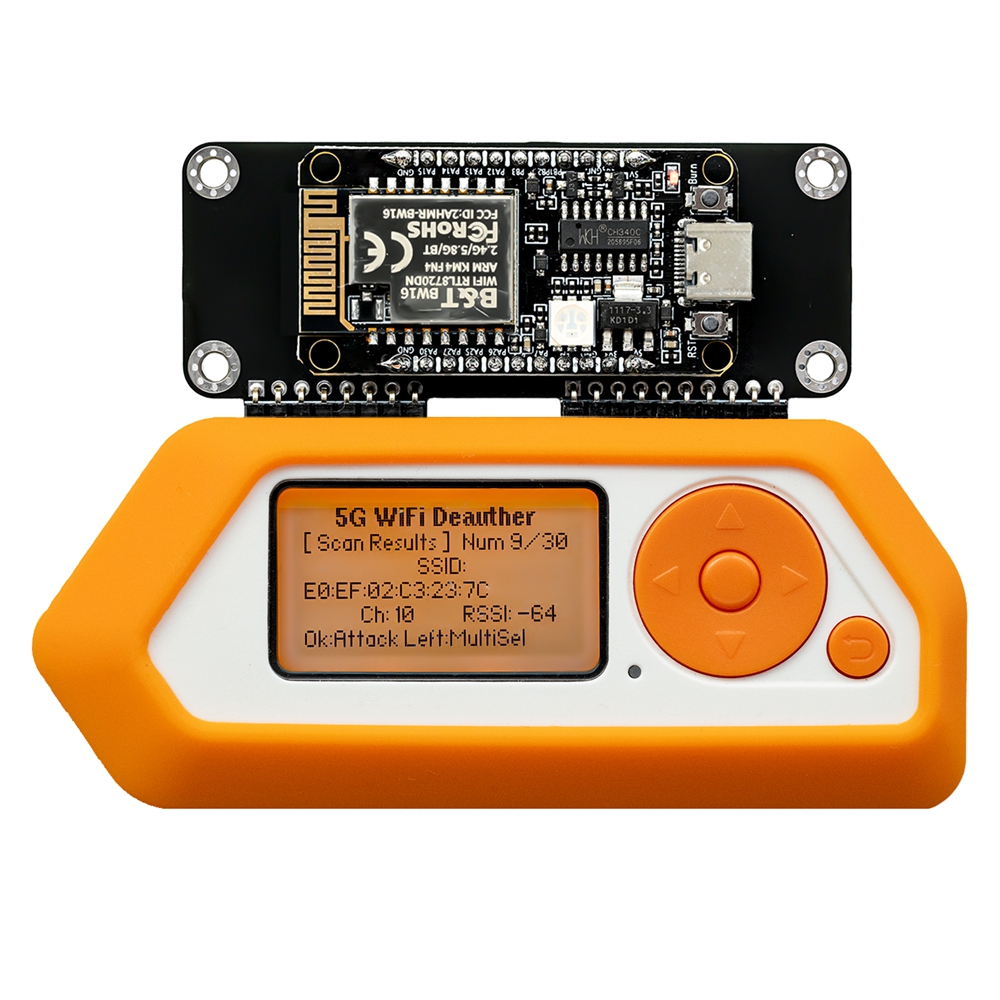

- The Flipper Zero displayed in the picture is not included. This WiFi module is an add-on module only.
