Development Board Kit Wifi Bluetooth Programming Kit w/ 32G SD Card For Python Raspberry Pi 3B+

Development Board Kit Wifi Bluetooth Programming Kit w/ 32G SD Card For Python Raspberry Pi 3B+

Features:
- Looking at its appearance, WIFI and Bluetooth modules are encapsulated, and logo metal shell is added, which further reduces the cost of FCC testing, making the wifi module for the Raspberry Pi conformance test lower cost and also plays a protective role
- CPU performance is improved. The use of a brand-new package outside the CPU provides better heat dissipation performance and also protects the CPU chip. The performance of single-core and multi-core CPU is improved, and the running speed is faster. 1.4GHz 64-bit quad-core processor
- PoE function provided by independent PoE HAT. The new 4Pin PoE power supply pin provides the possibility of a new power supply solution. Independent PoE Ethernet power supply, greatly improving network transmission efficiency and stability
- Dual-band 2.4GHz/5.0GHz wireless low energy Bluetooth 4.2. The wireless network is upgraded to dual-frequency 2.4GHz/5.0GHz, with faster transmission speed. It is more in line with the main picture of smart home, so that the development board has a direction to expand to the smart home. Bluetooth has been upgraded from 4.1 to the current mainstream 4.2

Parameters For Raspberry Pi 3B+:
- SOC: BCM2837B0
- CPU: 64-bit 1.4GHz quad-core
- Bluetooth: Bluetooth 4.2
- Wifi network: 802.11AC wireless 2.4GHz/5GHz dual-band Wifi
- Wifi antenna: Antenna solution for Zero W
- Wired network: Gigabit Ethernet
- Ethernet Poe: Powered by additional HAT Ethernet (Poe)
- Temperature test under the same conditions: 81℃ (CPU comes with a heat sink)
- Power Management IC: Microchip LAN7515

Hardware Parameters For Raspberry Pi 3B+:
- BCM2837B0SoC, integrated quad-core for ARM Cortex-A53 (for ARMv8) 64-bit at 1.4GHz CPU
- Main interface: HDMI, 3.5mm analog audio and video jack, 4xUSB 2.0, Ethernet, MicroSD slot
- Other interfaces: CSI camera interface, DSI display, 40pin, extended dual-row pin (PoE) interface
- Wired network: Gigabit Ethernet (via USB2.0 channel, maximum throughput 300Mbps)
- Wireless network: 2.4GHz and 5GHz dual-band Wi-Fi, support 802.11b/g/n/ac
- Memory: 1GB for LPDDR2 SDRAM
- Bluetooth: Bluetooth 4.2 & Bluetooth Low Energy (BLE)
- Storage: Micro-SD
- Power supply interface/requirement: microUSB (5V/2.5A standard)
- Dimensions: 85 x 56 x 19.5mm/3.3 x 2.2 x 0.8"; 50g/0.11 lb

Application Scenarios:
1. Become a computer for Raspberry Pi. Use the motherboard for Raspberry Pi, a LCD screen, a mouse, and a data cable to assemble a low-cost computer
2. Computer AI vision robot. Use the motherboard for Raspberry Pi and a camera gimbal to build a desktop robot, use programming for Python, and play with AI robot vision for Raspberry Pi
3. Build a smart car of your own. Use the powerful functions and multi-purpose expansion of the board to personally assemble a smart remote control car of your own and experience the joy of life it brings
4. Creative DIY in life. DIY a small language robot to realize intelligent language dialogue. It can also be turned into a BT downloader, solar charger, etc. You only need to install an LED display and a few dedicated Bitcoin mining USB devices on your computer, and it can become a low-power automatic "excavator" that will bring you unexpected gains

Package Included:

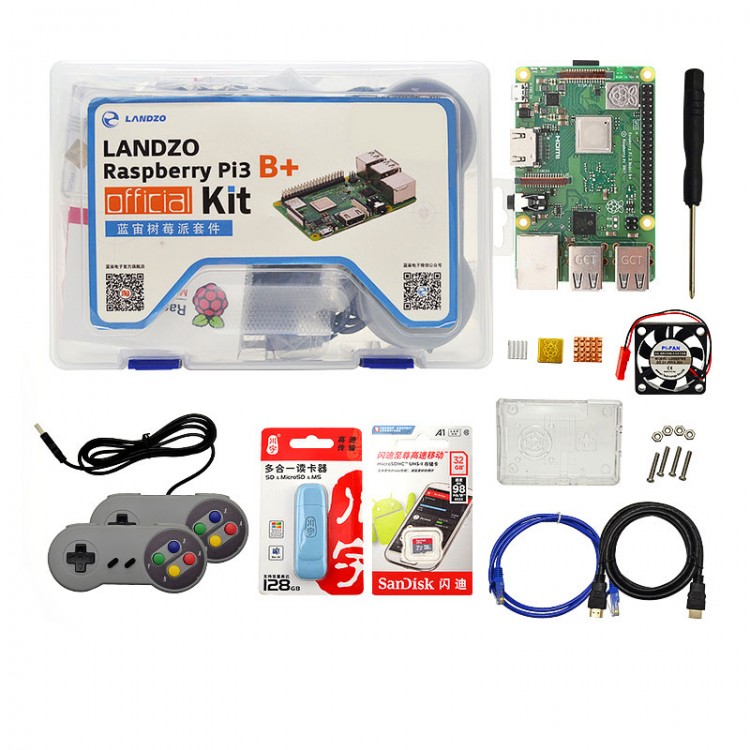

- 1 x Development Board Kit For Raspberry Pi 3B+

Note:
- In order to run, a motherboard, a power supply and a TF card are needed. Only a motherboard cannot be run.
