XIAOR GEEK TH Robot Car Kit for Raspberry Pi (Car + Basic Kit + 4B 4G Motherboard + A2 Robotic Arm)

Availability: In stock, usually dispatched in 1 business day

  • Price:$524.49
  • Price in reward points: 5245 Reward Points: 52
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $514.00 $503.51 $487.78 $466.80 Contact US

XIAOR GEEK TH Robot Car Kit for Raspberry Pi (Car + Basic Kit + 4B 4G Motherboard + A2 Robotic Arm)


We provide a system for Raspbian that has integrated all functions, which supports camera line inspection and remote desktop.
① Some versions comes with a 16G SD card, and the default system is for Raspbian. Studio software, GPIO library, opencv2, etc. have been installed, and the remaining system space is about 7-8G
② SSH is enabled, username: pi, password: raspberry
③ Wireless SSID: wifi-robots.com_+MAC address (no password); IP address:
- The wired network port is configured as a static IP. IP address: (the computer network port is manually configured with IPV4:, and the sub-net mask is for direct access)
- Tip: Some brands of SD cards cannot run the system for Raspberry Pi. It is recommended to buy our SD card to ensure the normal use of the car.
- For more version systems, you can go to the official website to download: https://www.raspberrypi.org/downloads

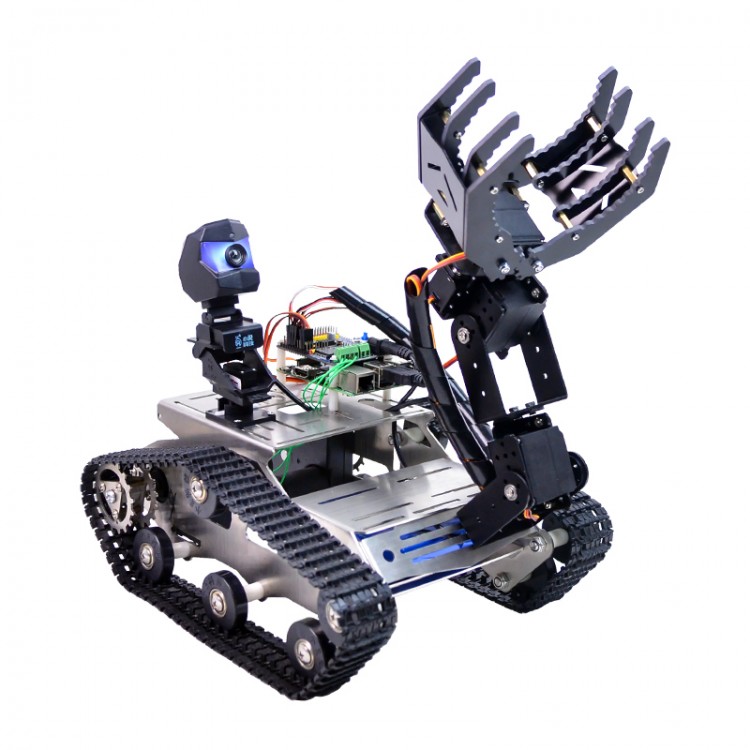

- Tank robot car with mechanical arm for Raspberry Pi
- WiFi real-time video transmission: Use WiFi connection control, real-time transmission through the camera and the first-person perspective to be realized. Convenient operation. Support connection for PC/PAD/Android/iOS/WiFi
- 4-DOF robotic arm: Simulate the design of human arm, servo has anti-jamming function. Software interface and screen synchronization control
- C/Python/Scratch language programming: Support 3 programming languages. Easy to understand and to learn code
- Multiple modules: power supply driver board for Raspberry Pi; motherboard for Raspberry Pi 4B; XR SG90 PTZ servo
- Wifi and Bluetooth control modes
- Support WeChat mini program to control the car
- AI Vision development kit based on the board for Raspberry Pi
- Support phone APP for Android and iOS
- Support mobile terminal, PC terminal and Web terminal control methods
- 2DOF PTZ: Omnidirectional monitoring. You can flexibly control the PTZ to rotate up, down, left and right through your phone touch screen or mouse
- PWR motor drive and power regulator expansion board: careful layout, reasonable wiring, precise layout, and stable performance. Imported L298P two-way high-power motor chip, cleverly combined with motherboard for Raspberry Pi
- Motherboard for Raspberry Pi 4B: The motherboard comes with WiFi and Bluetooth modules, combined with the system we developed. After the car is turned on, the car's self-built hotspot provides wireless signals without an external router
- HD camera: 720P 1MP high-definition camera with large sensor for CMOS. Compared with the previous generation camera, its viewing angle is increased by more than 50%, and it has more sufficient picture information and clearer video picture
- Stainless steel chassis: Stainless steel thickened multifunctional chassis, five pairs of wheels, sturdy and solid. Equipped with a multi-function interface, a variety of circuit mounting holes are reserved, and it can be installed with a variety of robotic electronic devices (for Arduino/51duino/STMduino/FPGA/Raspberry Pi)
- High-power motor: 12V gear motor provides a steady and lasting power output for the robot. 6KG/13.2LB load capacity
- Powerful control software: The upper computer software is available in both Chinese and English. Support multi-channel video transmission, 360 ° monitoring. Observe the motion status of the car in real time, collect and display sensor data, transmit detailed data in real time, and control the PTZ in the screen
- A variety of ways to play: radar ranging, real-time display, infrared battle system, fantasy technology battle, line patrol, ultrasonic obstacle avoidance, gimbal control, follow the master
- Path planning: draw a path on a PC or mobile phone, and then the car runs according to the planned path

- Product name: TH Robot
- Motor drive: Imported L298P two-way high-power motor chip
- Motherboard: for Raspberry Pi 4B
- Charging method: direct charging
- Frequency range: 2.400-2.4835GHz
- Camera: HD camera (adjustable distance)
- Compilation environment: C/Python/Scratch
- Wireless communication: Support 802.11b/g/n protocol, up to 150Mbps
- Signal range: ≤ 80m/262.5ft open distance
- Remote control method: 1. APP for iOS; 2. APP for Android; 3. PC client
- Dimensions: 300 x 230 x 233mm/11.8 x 9.1 x 9.2"
- Net weight: 3400g/7.5lb

Motherboard for Raspberry Pi 4B:

- SOC: BCM2711
- CPU: 64-bit 1.5GHz quad-core (28nn process)
- GPU: 500MHz VideoCore VI
- Memory: 4G
- Video output: Dual micro HDMI ports
- Maximum resolution: 4K 60Hz + 1080p or 2 x 4K 30Hz
- USB port: USB3.0x2; USB2.0x2
- Wired Network: Gigabit Ethernet
- Wireless: 802.11ac (2.4/5GHz); Bluetooth 5.0
- Charging Port: USB Type-C
- Power requirement: 3A 5V
- Multimedia: H.265 (4kp60 decode); H.264 encode (1080p30/1080p600; for OpenGL ES, 3.0 graphics
- Bluetooth: Bluetooth 5.0
- Dimensions: 3.5x2.3x0.76" (88x58x19.5mm)
- Weight: ~46g

Package Included:
- 1 x Stainless steel chassis
- 1 x Memory card and motherboard for Raspberry Pi
- 1 x PWR power board
- 1 x Camera
- 1 x Gimbal bracket kit
- 1 x Gimbal servo
- 1 x Charger
- 1 x Bag of hardware parts
- 1 x 4DOF robotic arm
- 3 x Robotic arm extension cables
- 1 x User manual
- 1 x Micro HDMI to VGA cable
- 1 x Power adapter
- 1 x Acrylic case for 4B
- 3 x Heat sinks
- 1 x Cooling fan
- 1 x Card reader
- 1 x 16G memory card

- Battery is not included. A 2200mAh 8A 12V battery is recommended.
- Assembling is needed.
