12MP 4K UHD 3840x2160 Live Stream Camera HDMI USB Camera w/ 35MM C-Mount Lens for Research Teaching

Availability: In stock, usually dispatched in 1 business day

  • Price:$189.10
  • Price in reward points: 1891 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $185.32 $181.54 $175.86 $168.30 Contact US
Quantity:

12MP 4K UHD 3840x2160 Live Stream Camera HDMI USB Camera w/ 35MM C-Mount Lens for Research Teaching

Description:

This is 4K UHD industrial camera. Its resolution is 3840 x 2160 pixels. It can choose 720P 1080P 4K mode. Standard HDMI interface is adopted. It can be used in education, scientific research, laboratory, demonstration, maintenance and inspection. Use HDMI splitter to project to a large FHD TV for the best display.

Specifications:
- Effective Pixels: 12MP 1/2.33 IMX 4K sensor for CMOS
- Resolution: 4K/2K/1080P 1080P (USB)
- Sensor Size: 1/2.33inch
- Pixel Size: 1.55 x 1.55μm
- Image Resolution: 4032 x 3024 (12MP) (16:9)
- Frame rate: 60FPS (4K)
- Image Format: JPEG
- Wave Length: 400nm~700nm
- Frame Fatie: 3840x2160 at 60FPS (4K); 1080P 120 at FPS; 720P 240 at FPS
- Lens Type: C / CS
- Timing Photo/Record: Support Timing Photo/Record
- Storage: TF Card, Max 256G
- PC Support: for Windows XP/7/8/10, PC Software with Measuring Function
- Image Measurement: Support HAYEAR Measurement
- Language: EN/FR/ES/Portugues/Deutsch/Italiano/CN/Pyccknn/JP
- Output Interface: HDMI/USB Standard usb2.0 interface (Type B)
- Image Scaling: 7-Fold zoom
- Transverse and vertical line: Support multi-color, 5pcs of transverse lines/vertical lines, movable; Different color, 5 horizontal line, 5 vertical line, any positions
- Encode: H.264 /H.265 (High Profile)
- Video format: MP4
- Input Voltage: DC 12V 1A
- Exposure: Automatic/Manual, value adjustable
- Size: 75 x 60 x 39mm/3 x 2.4 x 1.5" (LxWxH)

35mm F1.7 Lens:
- Focal-Length: 35mm
- Relative Aperture D/f': F1.7
- Mount: C
- Image Format: 1/1.8in
- Field of View: W14.8° x T10.8°
- Dimensions: Approx. 35 x 22mm/1.4 x 0.9"
- Resolution: 5MP
- Flange BFL: 17.53
- High resolution: 5 megapixel covering 5MP & 1080P
- Large format: 1/1.8" size covering 1/1.8", 1/2" camera
- Big aperture: F1.7 big aperture makes imaging far better
- Low distortion: <0.1% low distortion use machine vision FA automatic
- Application: Biochemical, surveillance, FA, face recognition etc.

Lens Features:
1. 35mm F1.7 Len
2. Vari-focal length CCTV lens, optical lens, CCTV camera lens, CS Mount Lens
3. Focal length Function Manual Iris Lens, security lens
4. Low distortion Lens for box camera, Security Camera Lens, Surveillance Lens
5. This high resolution CCTV lens can collect the all resolution of mega pixel camera, IP camera & High resolution camera
6. Suitable for live stream cameras, surveillance camera, etc.

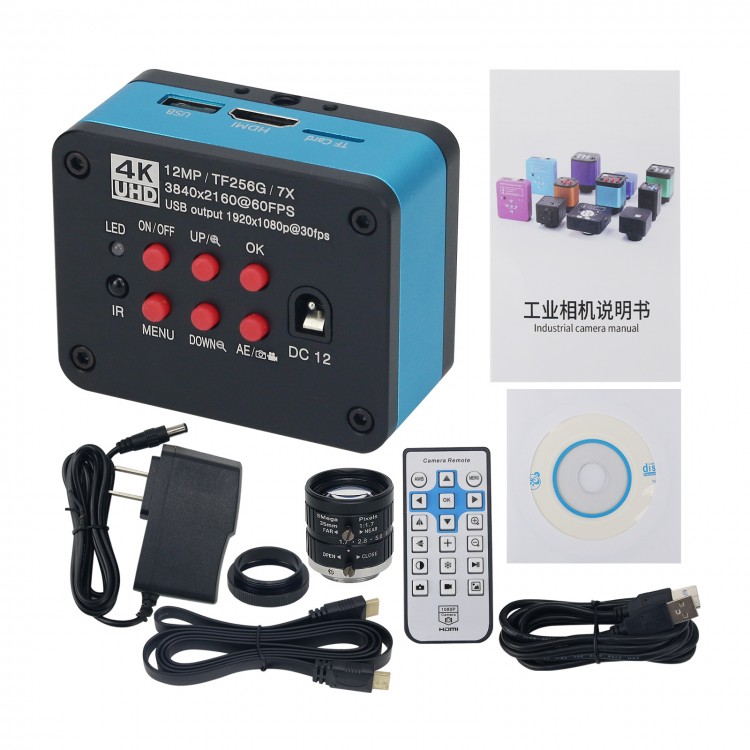

Packing List:
- 1 x 4K HDMI camera
- 1 x 35mm F1.7 lens
- 1 x Remote control
- 1 x DC12V power supply
- 1 x HDMI cable
- 1 x USB cable
