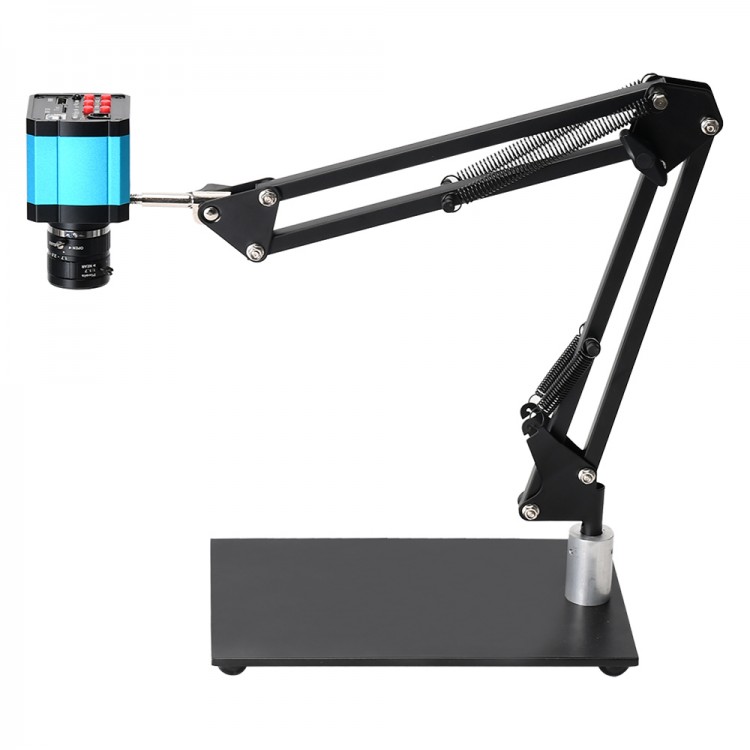

14MP 1080P HDMI USB Camera Industry Digital Camera 35mm F1.7 SC Mount Stand for Teaching Maintenance

14MP 1080P HDMI USB Camera Industry Digital Camera 35mm F1.7 SC Mount Stand for Teaching Maintenance

Product Features:
- The head can be adjusted 220 ° up and down, and 360 ° swivel. 33cm+33cm retractable long arms; 180°/135° can be adjusted
- High quality, high resolution, and clear images
- 1080P 1920*1080 video camera
- HDMI USB video model
- Industry camera for CMOS. It can show the live image directly on any HDMI monitor, projector, and TV

Microscope Camera:
- Module: 2307
- Sensor: 14MP for CMOS
- Optical Format: 1/2.3 inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 14MP
- Video Resolution: 2K at 30FPS 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4: 3,16: 9,16: 10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

35mm F1.7 Lens:
- Focal-Length: 35mm
- Relative Aperture D/f': F1.7
- Mount: C
- Image Format: 1/1.8in
- Field of View: W14.8° x T10.8°
- Dimension: Approx. 35 x 22mm
- Resolution: 5MP
- Flange BFL: 17.53
- High resolution : 5 megapixel covering 5MP & 1080P
- Large format: 1/1.8" size covering 1/1.8", 1/2" camera
- Big aperture : F1.7 big aperture makes imaging far better
- Low distortion :<0.1% low distortion use machine vision FA automatic
- Application: Biochemical, surveillance, FA, face recognition etc.

Lens Features:
- 35mm F1.7 Len
- Vari-focal length CCTV lens, optical lens, CCTV camera lens, CS mount lens
- Focal length function manual Iris Lens, security lens
- Low distortion Lens for box camera, security camera lens, surveillance lens
- This high resolution CCTV lens can collect the all resolution of mega pixel camera, IP camera & high resolution camera
- Suitable for live stream cameras, surveillance camera, etc.

Packing List:
- 1 x 1080P HDMI camera
- 1 x 35mm F1.7 lens
- 1 x Remote control
- 1 x DC12V power supply
- 1 x USB cable
- 1 x HDMI cable
- 1 x Stand

Note:
- One 2302 button battery is needed for its remote control.
