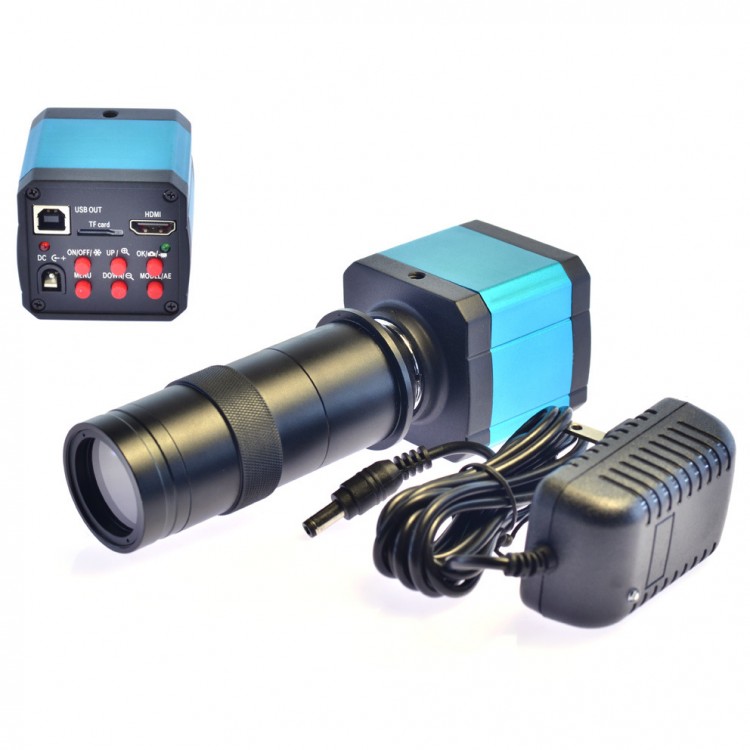

14MP Industrial Microscope Camera w/ 100X C-Mount Lens HDMI 1080P For Mobile Phone PCB Repair

14MP Industrial Microscope Camera w/ 100X C-Mount Lens HDMI 1080P For Mobile Phone PCB Repair

Features:
- Model: Camera with HDMI USB2.0 two output
- Image format: jpg
- Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
- Video format: MP4
- Video recorder: 1920*1080 @ 60FPS (for TF Card)
- USB Video resolution: 1920*1080 @ 30FPS
- White Balance: Auto
- Light: Auto
- Color: Color
- Negative: Support
- Mirror: Left/right, Up/Down
- Freeze: Support
- OSD: English/Chinese/French/Spanish/Portuguese
- Line: different color, 5 horizontal line, 5 vertical line, any positions

Specifications:
- Image sensor: For 14 megapixel Panasonic sensor 1/2.3 inch
- Effective pixel: 14 megapixel
- Pixel size: 1.43x1.43um
- Frame rate: 60fps
- Definition: FULL HD
- Housing: metal
- Lens: CS for test, custom provide
- Video format: MP4
- Encode: H.264 (High Profile)
- Digital magnification: 5 times digital zoom
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line:
- Support multi-color, 5pcs of transverse lines/vertical lines, moveable
- Different color, 5 horizontal line, 5 vertical line, any positions
- SNR: Support
- TF card interface: Max 64G
- HDMI interface: Standard HDMI output (Type A)
- Lens: C
- USB interface: Standard usb2.0 interface (Type B)
- It build in digital crosshairs and color control, add line in the pictures, freeze
- Supply USB2.0,HDMI HD video,Two output ports
- We sell much to the industry factory, they can see the problems directly in the Monitor via the camera.

Metal Zoom C-Mount Lens:
- Magnification Power by 0.12X-2X (about 8X-100X on the display)
- Work distance: 55mm-130mm
- Visual field : 43mm-120mm
- Size: 115mm(L) * 40mm(DIA)
- Weight: 210g

Package Included:
- 1 x Set of HDMI Microscope Camera

Note:
- For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
- For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.
- TF card storage is only for HDMI output. USB output will be stored in PC.
- Stand and monitor are not included.
- Battery is not included.
