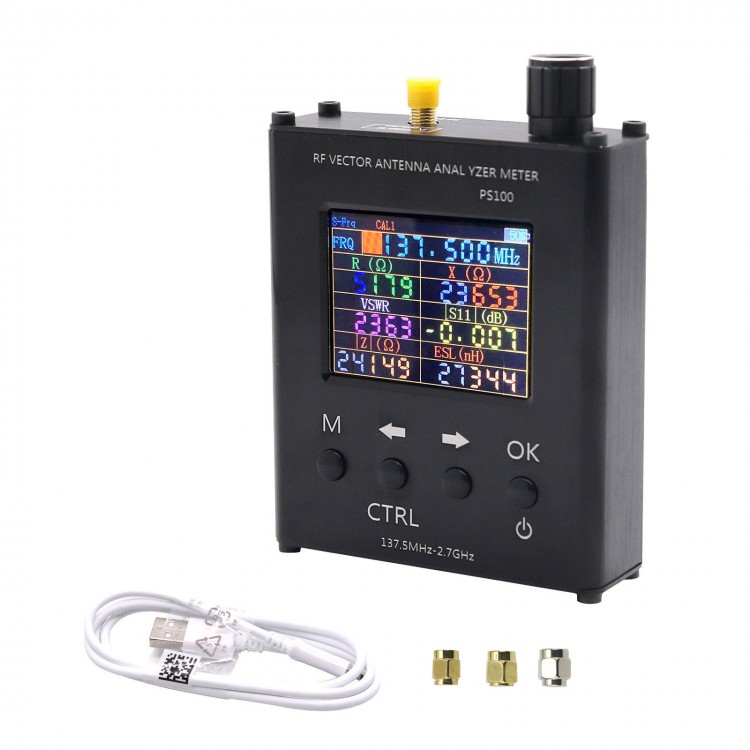

137.5MHz - 2.7GHz UV RF Antenna Analyzer SWR Meter Tester with Aluminum Alloy Shell PS100

Availability: In stock, usually dispatched in 1 business day

  • Price:$87.58
  • Price in reward points: 876 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $85.83 $84.08 $81.45 $77.95 Contact US
Quantity:

137.5MHz - 2.7GHz UV RF Antenna Analyzer SWR Meter Tester with Aluminum Alloy Shell PS100

Specifications:

- Model No.: PS100
- Working Frequency: 137.5MHz~2700MHz
- Stepped Frequency: 1kHz
- Display: 2.4inch TFT with resolution 320*240(QVGA)
- Power Consumption <1.5W
- Charging Current: 400mA
- Charging Port: USB
- Auto Power Off: Settable 5-60minutes
- Measured Parameters: Impedance, reactance, SWR and S11
- Resolution: 4-digit readings
- Frequency Accuracy: <±10ppm
- Connector: SMA-K
- Impedance Measurement Range:
  1Ω~1000Ω @frequency < 1300MHz;
  1Ω~300Ω @frequency >1300MHz (Impedance Absolute Value)
- Standing Wave Measurement Range:
  1~65 @frequency < 1300MHz;
  1~10 @frequency >1300MHz
- S11(dB)Measurement Range: 0dB to -50dB
- Error (Single-point measurement):
   For Impedance: < Impedance absolute value x 5%±0.1Ω (Z<200Ω, <1.5GHz)
   For Standing Wave: < Effective readings x 10%±0.1
   For S11: 0.1dB/5° (0dB to -10dB)
   For (dB/°): 1dB/10° (-10dB to -20dB); 5dB/20° (-20dB to -40dB)
- Directivity: < 35dB (140MHz to 2GHz after calibration); < 30dB (2GHz to 2.7GHz)
- Scanning Points: 280
- Output Level: -18dBm
- Working Temperature: 0℃ to 40℃
- Atmospheric Pressure: 860hPa~1060hPa

Description:
- This instrument has four interfaces: single point measurement, scanning, system information, correction and calibration
- The default boot into single-point measurement interface.
- Aluminum alloy shell prolongs its service life.

Note: For the convenience of the user, each time calibration correction options will automatically change to the user calibration. Meanwhile, in order to ensure the integrity of the calibration, the calibration process, the automatic shutdown function fails, the consistent boot.

Startup & Shutdown:
- Hold down the CTRL key off press the power switch button.
- The boot state, long press (2S above) the switch button, after the release, the instrument will shut down
- The boot state, long press (2S above) the switch button, after the release, the instrument will shut down

Advice when Using:
- In order to ensure the accuracy of measurement and calibration, preheat the instrument at least 15 minutes.
- Try to use good quality RF cable and connectors.
- Calibrated cable marked to the next may not need to calibrate and direct use.
- Test cable process affect the measurement accuracy, it is recommended that, where possible, do not choose too long test cable.
- Measurement and calibration before, make sure you are not in a strong wireless signal, so as to avoid interference caused by inaccurate measurements.
- If the impedance measurements themselves do not understand, you can refer to a vector network analyzer instructions and tutorials. This instrument is equivalent to a single-port vector network analysis.

Package Included:
- 1 x PS100 Antenna Analyzer SWR Meter
