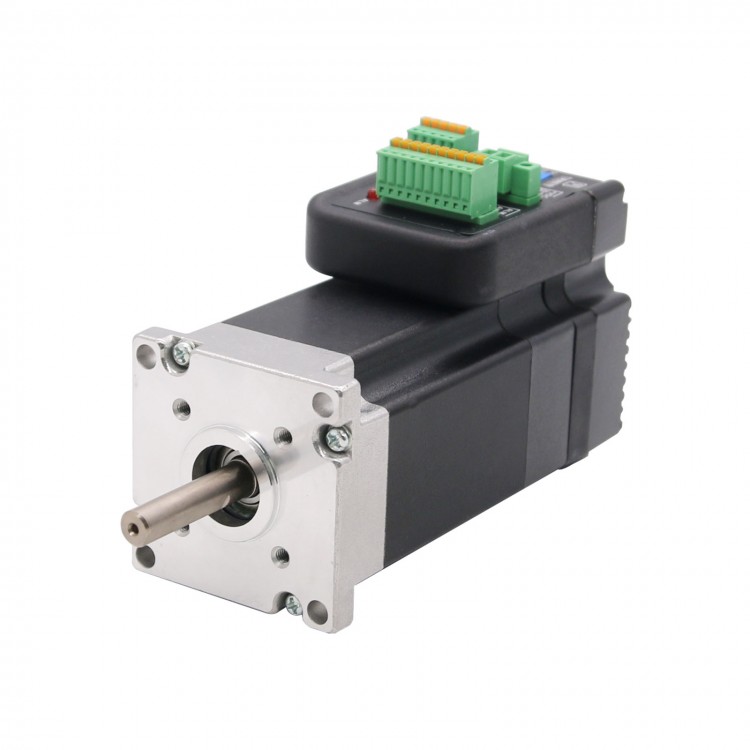

140W 3000rpm 0.45Nm 57 Integrated Servo Motor36V DC JMC iHSV57-30-14-36-01-BY

Availability: In stock, usually dispatched in 1 business day

  • Price:$115.22
  • Price in reward points: 1152 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $112.92 $110.61 $107.15 $102.55 Contact US
Quantity:

140W 3000rpm 0.45Nm 57 Integrated Servo Motor36V DC JMC iHSV57-30-14-36-01-BY

Product Details:

- Brand: JMC
- Item Name: Integrated AC Servo Motor
- Model: iHSV57-30-14-36-01-BY
- Rated Output Power: 140W
- Input Voltage: 20~50V DC (Typical Value 36V)
- Rated Output Power:

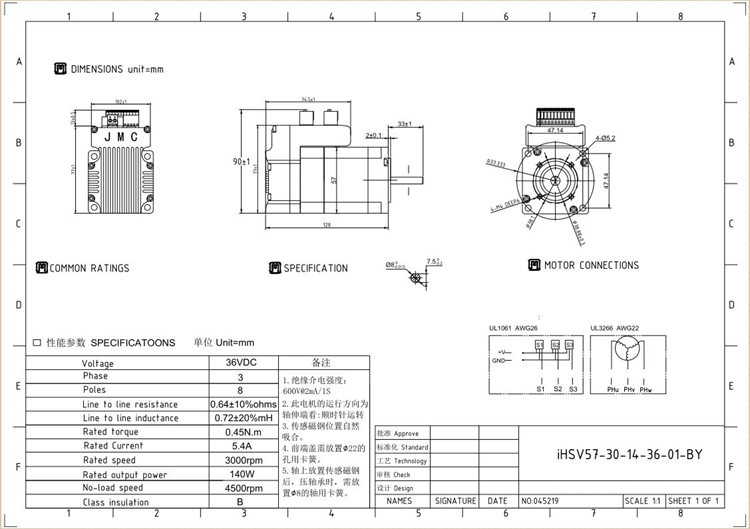

- Shaft Size: 8x33mm
- Torque: 0.45NM
- Rated Speed: 3000rpm
- Impedance: 0.64±10%Ω
- Inductance: 0.72±20%mH
- Motor Length: 128±1mm
- Encoder: 1000Hz

Technical Parameters:
- Maximum Pulse Frequency: 250K
- Default Communications Rate: 9.6Kbps (Required external conversion interface)
- Input Voltage: 20~50V DC (Typical Value 36V)
- Continuous Output Current: 6.0A

Multiple Protections:
- Over-Current Peak: 30A±10%
- Over-Heat Peak: 80℃
- Over-Voltage Peak: 65V
- Under-Voltage Peak: 18V

Using Environment:
- Working Temperature: 0℃ to 70℃
- Storage Temperature: -20℃ to 80℃
- Humidity: 40 to 90%RH
- Cooling Way: Natural cooling or forced air cooling
- Application Scene: Please avoid dust, oil mist and corrosive gases

Features:
Space Saving: With integrated motor and driver in one item, this product saves more space and money, compared with traditional separated motor and driver kit.
Full Closed Loop: Precise position and speed control helps it meet the most demanding application requirements. High resolution encoder provides accurate position accuracy.
Low Heating / High Efficiency: Adjust current in real time according to the actual load conditions to minimize heat generation. It is highly efficient because it outputs around 99% torque in such a compact space with the maximum energy conversion rate.
Dual-Pulse Control: It is designed with pulse and direction control ways. With 6-digit dip switch, the motor enables preset subdivision accuracy, CW/CCW operation, and the effective edge of signals.
Smooth & Accurate: Based on the encoder space vector current control algorithm, it has excellent performance in the full speed range. Even at low speed applications, it can maintain a smooth and quiet operation.
Three Feedback Loops: There are three adjustable feedback loops, including position loop, speed loop, and current loop.

Package Included:

- 1 x Integrated AC Servo Motor
