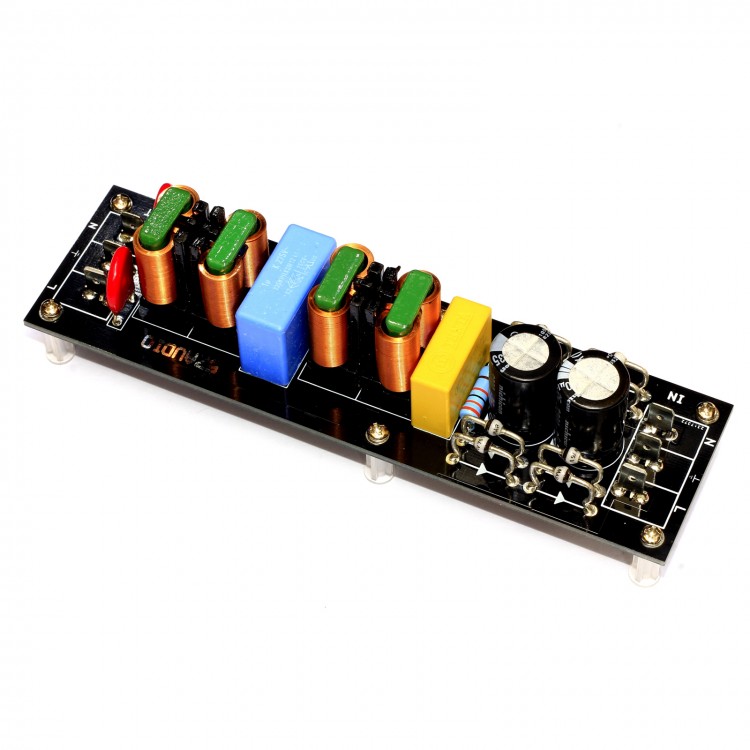

15A EMI Filter DC Elimination EMI Filter Board High-Efficiency Power Purifier (with Wire Terminals)

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.47
  • Price in reward points: 155 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.16 $14.85 $14.39 $13.77 Contact US
Quantity:

15A EMI Filter DC Elimination EMI Filter Board High-Efficiency Power Purifier (with Wire Terminals)

Description:

EMI Filter Board can be used with decoders and power amplifiers. It can filter the DC component of the power supply, eliminate mains interference, etc., and effectively purify the power supply!

Its DC elimination and filter circuit uses flat wire SQ-type inductors to eliminate and prevent the noise of electrical appliances caused by clutter and fluctuations in an AC power supply. It also uses the DC elimination circuit built by diodes and capacitors to eliminate and prevent the DC components in the mains AC power supply, and prevent the transformer from magnetic saturation or increase of quiescent current due to DC components.

The circuit can suppress and eliminate AC interference components, bringing pure power supply to your speakers.

Flat wire SQ inductors have the following advantages:

1. Small volume, large current passing through, and its unit current density is more than 1.3 times that of round copper wire
2. The DC rectifier adopts the telephonic root high rectification rectifier
3. Closed magnetic circuit, small magnetic leakage, ideal EMI effect, good conduction radiation effect, and stable consistency
4. High dielectric strength can prolong the life of your power supply

Specifications:
- PCB material process: 1.6MM glass fiber double-sided, black oil double-sided tin plating
- Applicable wide voltage: 110VAC-265VAC
- Applicable rated current: within 2000W
- Weight of welded board: 0.2KG/0.4LB
- Current: 15A

Package Included:
- 1 x EMI Filter Board
