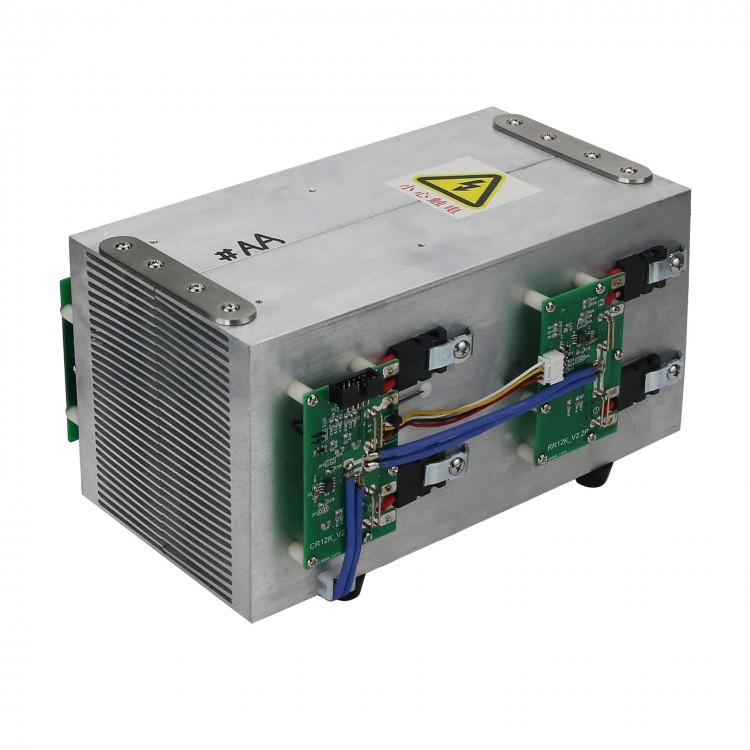

1600W Electronic Load Battery Discharger w/ 12V Power Supply Compatible With 1000W 800W 400W TEC-80K

Availability: In stock, usually dispatched in 1 business day

  • Price:$469.64
  • Price in reward points: 4696 Reward Points: 47
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $460.25 $450.85 $436.77 $417.98 Contact US
Quantity:

1600W Electronic Load Battery Discharger w/ 12V Power Supply Compatible With 1000W 800W 400W TEC-80K

Download Upper Machine Software For Modbus:

https://pan.baidu.com/s/1G1GiMxPYBLUJ0FkTElI6Eg
Password: rm2n

Description:
This load is an adjustable constant current linear load. Users can set discharge current according to their needs.

Can be used for battery capacity detection, power supply aging, etc.

This load can be used as a stand-alone machine or controlled by a host computer, and the discharge curve can be drawn through the host computer.

The upper control adopts bus control for Modbus, and each bus can control up to 99-way loads.

Upper online control software is provided for free. Communication adopts standard protocol for Modbus. If buyers need, it can be opened to the outside world.

Specifications:
- Maximum power: 1600W
- Input voltage range: 0.8V~100V, measurement error <0.3%
- Turn-off voltage adjustment step: 0.01V below 2V; 0.05V in 2V~5V; 0.1V in 5V~20V; 0.5V above 20V
- Current adjustment range: 2-60A (1600W), control error <0.3%
- Current adjustment solution step: below 2A adjustment step size is 0.1A; above 10A  adjustment step size is 0.5A
- Maximum error of capacity detection: 0.5%
- Power supply: 12V/2A or above 2A, interface 5.5/2.1mm

Technical Features:
- The maximum withstand voltage is 100V, the power is 1600W, and high power can be customized according to your needs
- There is a voltage sampling terminal, which can be connected with 4 lines to avoid errors caused by line loss
- It can work independently from your computer, or it can be controlled by upper computer
- With 3 kinds of data interfaces: USB, TTL (5V), RS485 (for Modbus).
- For Modbus (RTU) industrial bus, using RS485 interface, can realize networking of up to 99 devices.
- Intelligent power limit, with over-temperature protection, anti-reverse connection protection
- Intelligent speed control fan, silent start, the higher the temperature, the faster the speed
- Multiple protections, including: anti-reverse protection, over-temperature protection, maximum power limit, and under-voltage protection
- Power-down data storage function
- After the measurement, there are three music options: For Beethoven Symphony No.9, Are you sleeping, Kamata March. And it can also be set to mute

Package Included:
- 1 x Set of Battery Discharger

Note:
- Battery is not included.
