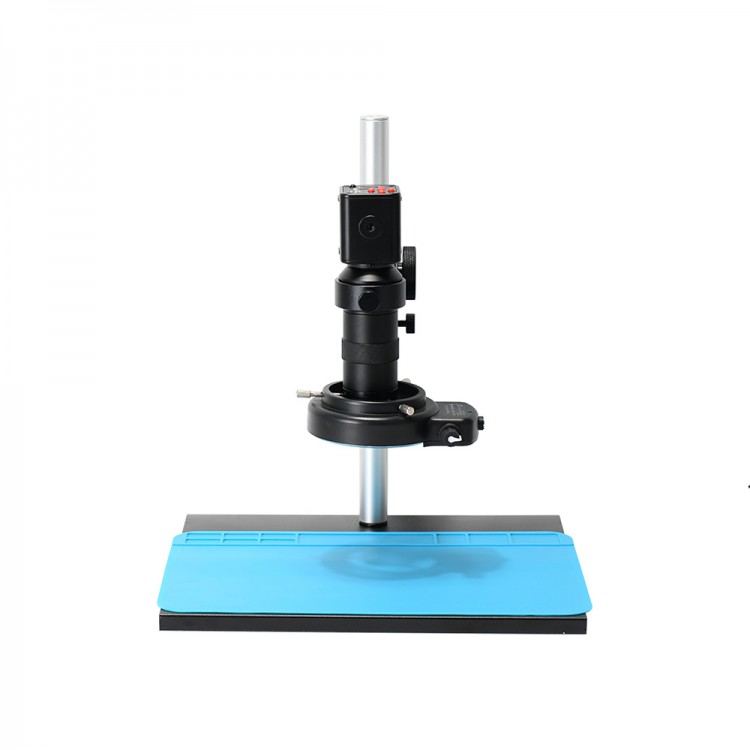

16MP 1080P HDMI Microscope Camera + 150X C-Mount Lens + 56-LED Ring Light + Stand for PCB Soldering

16MP 1080P HDMI Microscope Camera + 150X C-Mount Lens + 56-LED Ring Light + Stand for PCB Soldering

Camera Specifications:
- Item Type: Microscope Camera
- Module: HY-5199
- Sensor: 16MP for CMOS
- Optical Format: 1/2.9inch
- Pixel Size: 2.85μmx2.85μm
- Interface: HDMI (Type A). Small memory card
- HDMI Image Resolution: 16MP
- Video Resolution: 2K at 30FPS; 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4:3 and 16:9 screens
- Small Memory Card: Up to 64GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

150X Lens:
- Magnification Power by 0.12-2X (about 8X-150X on the display)
- Visual field: 2.4mm-66mm/0.1-2.6"
- Zoom ratios: 2:1
- Size: 100 x 28mm/3.9 x 1.1" (LxDia.)
- Net weight: 100G/0.2LB

56 LED Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 56 bright LED
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 27mm/1.1"
- Overall outside diameter: 45mm/1.8"
- Working Distance: 27mm-120mm/1.1-4.7"

Microscope Bracket:
- Ring Diameter: 42mm/1.7" diameter
- Material: aluminum alloy (easy to carry)
- Color: black
- Material: Aluminium Alloy
- Max Diameter of Microscope's Lens Tube: 42mm/1.7"
- Support Height: 310mm/12.2"
- Use: Biology research electronic component precision parts jewelry identification and identification circuit board

Package Included:
- 1 x Microscope Camera
- 1 x 150X C-mount lens
- 1 x 56-LED Light
- 1 x Power Supply
- 1 x HDMI Cable
- 1 x Remote Control
- 1 x Microscope Bracket
- 1 x High Temperature Resistant Working Pad

Note:
- Battery is not included. A 2302 button battery is recommended for the remote control.
