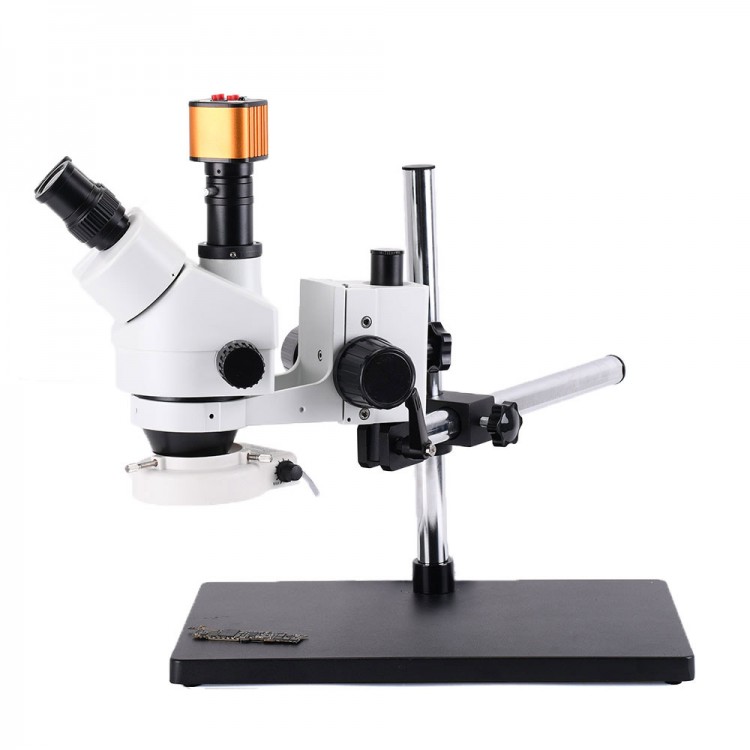

16MP Trinocular Stereo Microscope Continuous Zoom 7~45X w/ Camera 56 LED Light Universal Bracket Mat

16MP Trinocular Stereo Microscope Continuous Zoom 7~45X w/ Camera 56 LED Light Universal Bracket Mat

Description:
This stereo microscope has a 56-LED ring light that offers super wide field optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Features:
- An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
- 7X-45X super wide zoom magnification power
- Bright cool light 56-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included

Specifications:
- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super wide field high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using lenses for Barlow
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 56-LED Ring Light
- Power Input: 110-240V, 50-60HZ, Automatic Switching
- Accessories: Paired eye-caps

Attention:
- This is mainly a hdmi camera, if you need it get higher image quality for usb output pls choose the professional usb camera or contact us before place the order so we will give you some suggestion.
- For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.

Camera Specifications:
- Image sensor: For SONY CMOS 1/2.9
- Pixel size: 2.85 x 2.85μm
- Video output: full HD 1080p ( via HDMI), 720P( via USB)
- Image resolution: 4608*3456( via HDMI)
- Video recording: 1080p ( via HDMI )
- Image format: jpeg
- Lens Thread: C/CS
- Resolution: 1920*1080@30fps, 720p 160@fps
- TF card interface: max 64G
- PC support: For Windows XP/7/8/10 system, for HAYEAR measure software
- Digital zoom: 4 times digital zoom
- Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
- Camera dimension: 50mm*50mm*43mm

56 LED Ring Light:
- 56 bright white LED bulbs, 6W, Adjust Bright
- 100,000 hours of life
- Intense and focused shadow-free illumination
- Variable intensity control
- Power input: 100-240V, 50-60HZ, auto switching
- with Female thread M28*0.75
- Suit for the dia of the lens: 16mm-46mm

Package Included:
- 1 x Set of Stereo Microscope
