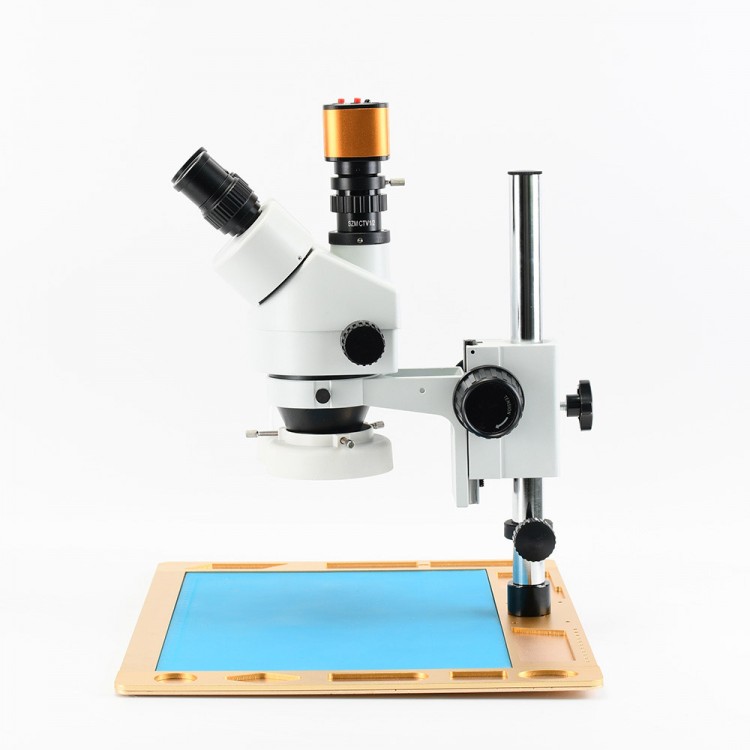

16MP Trinocular Stereo Microscope PCB Repair Microscope Magnifier Full HD 1080P w/ 56 LED Light
Features:
- An excellent stereo inspection microscope
- 7X-45X super wide zoom magnification power
- Bright cool light LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
Specifications:
- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super wide field high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using lenses for Barlow
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Illumination: 56-LED Ring Light
- Power Input: 110-240V, 50-60HZ, Automatic Switching
CameraSpecifications:
- Image sensor: For SONY CMOS 1/2.9
- Pixel size: 2.85 x 2.85μm
- Video output: full hd 1080p (via HDMI), 720P(via USB)
- Image resolution: 4608*3456(via HDMI)
- Video recording: 1080p (via HDMI )
- Image format: jpeg
- Lens: C/CS
- Resolution:1920*1080@30fps, 720p 160@fps
- TF card interface: max 64G
- PC support: For Windows XP/7/8/10 system, for HAYEAR measure software
- Digital zoom: 4 times digital zoom
- Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
- Camera dimension: 50mm*50mm*43mm
Package Included:
- 1 x Set of Stereo Microscope
Note: Universal bracket is not included in the package.
