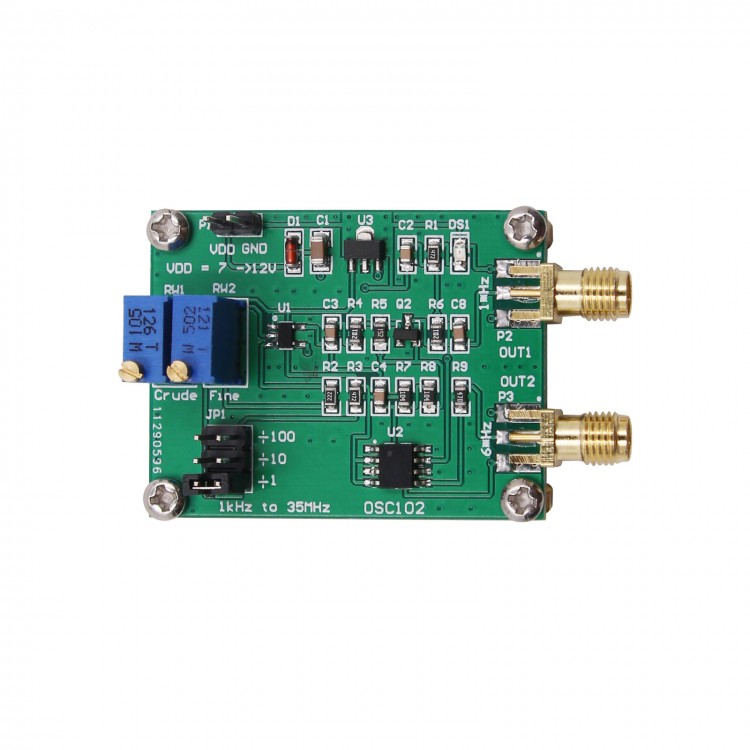

1KHz-210MHz RF Generator Module Precision Adjustable RF Signal Generator
Features:
- The OSC102 module has two TTL pulse signal outputs. Output range 1 (Hz * 1): 1KHz ~ 35MHz; the range of the other (Hz * 6) : 1.8MHz ~ 210MHz.
- Frequency error ≤1%, 1kHz to 35MHz (TA = 25℃). Signal output amplitude (Vpp = 2 ~ 5V).
- This module is simple to use and you can adjust the frequency data through two potentiometer operation inputs.
- Wide Applications: For Pulse signal generator, RF signal generator, and clock signal generator.
More Details:
- P1 Power Connector:
VDD: power supply + (7 ~ 12V current <50mA)
GND: power supply -
- P2 Output Interface (OUT1): One-time frequency pulse signal output (range: 1KHz ~ 35MHz)
- P3 Output Interface (OUT2): Six-frequency pulse signal output (range: 1.8MHz ~ 210MHz)
- JP1 Pin: select three different frequency division coefficients (÷100, ÷10, ÷1)
- RW1 Potentiometer: coarse adjustment frequency
- RW2 Potentiometer: Fine-tune the frequency
- Module Size: 45 * 35 * 20mm (L*W*H)
- Module Weight: 14g
Package Included:
- 1 x RF Generator
