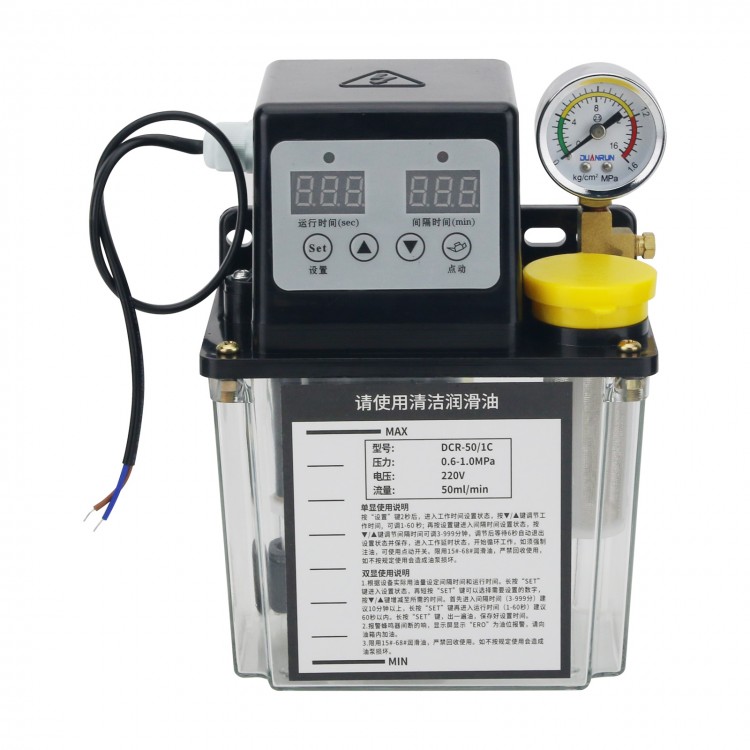

1L 220V Automatic Lubrication Pump Dual Display & Pressure Gauge for CNC Machines & Oil Pump Lathes

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.03
  • Price in reward points: 390 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.25 $37.47 $36.30 $34.74 Contact US
Quantity:

1L 220V Automatic Lubrication Pump Dual Display & Pressure Gauge for CNC Machines & Oil Pump Lathes

Features:

- Automatic lube oil pump: precise timing. When there is a shortage of oil, it will sound an alarm
- Precision manufacturing, high strength and pressure resistance
- Simple and easy to use. Economical and durable
- Alarm float: When the oil is insufficient, the low oil level alarm float will automatically alarm to remind the user
- Pressure gauge: with a 1.6MPA pressure gauge
- Dual Display: The left screen displays running time and the right one shows the intervals. Time can be adjusted to meet your needs
- Fuel filling cap: integrated oil filling cap is fixed firmly. Therefore, the cover will not fall off
- Oil pump control board: Quality controller board ensures reliable performance
- Widely used: Can be applied to CNC machines, textile machinery, woodworking machinery, chains, linear guide rials, screws and gears

Specifications:

- Item name: Electromagnetic lubrication pump
- Voltage: 220V
- Power: 28W
- Current: 0.35A
- Rated pressure: 10KG
- Volume ratio: ≥75%
- Discharge capacity: 1L/min
- Running time: 1~60 seconds
- Interval: 3-999 minutes

Package Included:
- 1 x Lubrication Pump

Note:
- Due to shipping, oil is not included in the package.

How to Use?

1. Simple installation. Connect it to 220V power supply.
2. The oil pump is equipped with oil level alarm. When the oil is insufficient, it can issue an alarm in advance to allow users to add lubricating oil in time.
3. Oil pump with time adjustment function: running time 1~60 seconds and interval time 3-999 minutes.
4. The standard outlet of the oil pump is M8*1, and an oil tube with an outer diameter of 4mm/0.16" can be connected. If you need an outlet for tubing with an outer diameter of 6mm/0.2", please contact us in advance. Oil pump with an outlet for 4mm/0.16" oil tube will be delivered by default.
