| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $20.17 | $19.76 | $19.14 | $18.32 | Contact US |

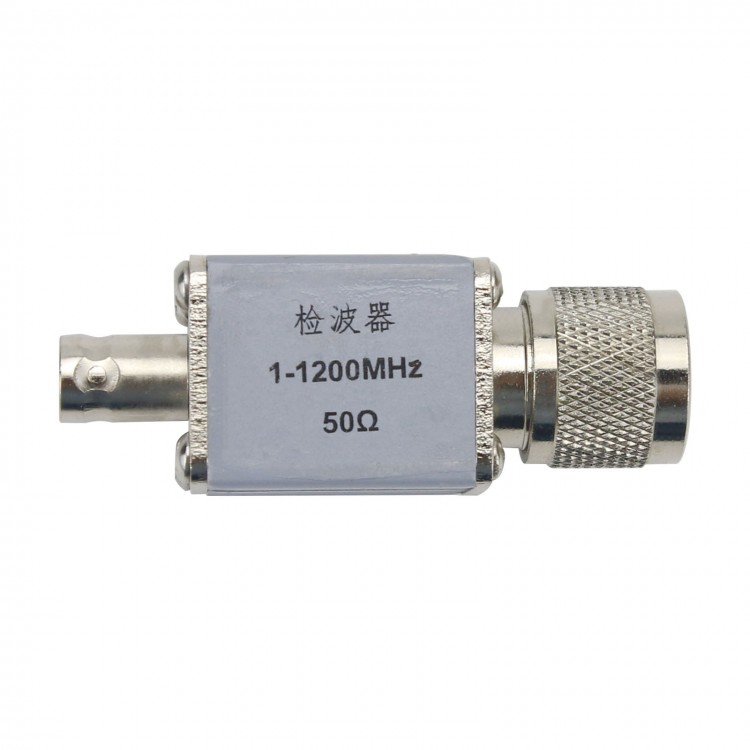

1MHz~1200MHz Broadband RF Detector Field Strength Meter 1.2GHz High Frequency RF Power Meter
Features:
- Frequency bandwidth, good frequency response, and low VSWR.
- Fast response speed, high sensitivity
- Can be used in power detection, video detection, amplitude modulation and demodulation, signal source amplitude stabilization and other fields.
Specifications:
- Characteristic impedance: 50Ω
- Frequency range: 1~1200 MHz
- VSWR: 1.5 (Max)
- Voltage sensitivity: 0.4 (mV/μW)
- Maximum withstand power: +23 dBm (200mW)
- Input interface: N (male) (if you need a BNC male, please contact us)
- Output interface: BNC (female)
- Output polarity: positive polarity (if negative polarity is required, please contact us)

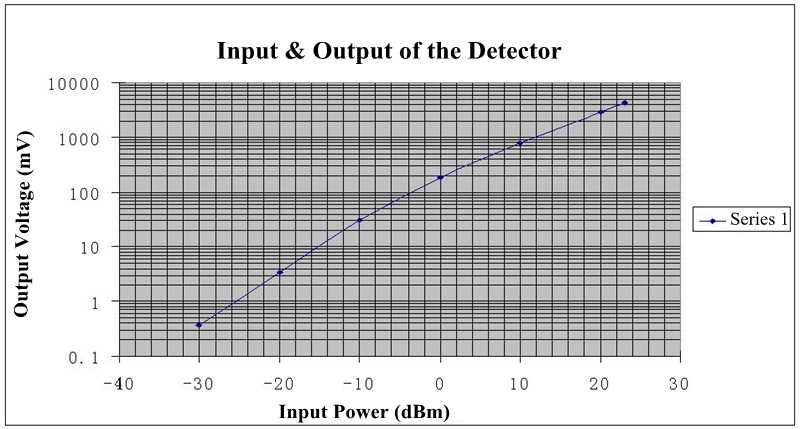

Refer to the figure below for the input and output relationship of the detector:
Package Included:
- 1 x RF Detector
