1MHz-3.5GHz Noise Signal Generator White Noise Generator Simple Spectrum Analyzer Tracking Generator
Description:
This noise signal generator uses a special voltage regulation diode to generate white noise in the breakdown state and amplify the output. It can be used as a spectrum tracking generator and an interference source. It is powered by +12V power supply.
It can directly measure S21 parameters of passive products. When connected to a standing wave bridge, it can also measure standing wave parameters. It is a practical tool for RF fans to develop and measure.
Output signal covers 1MHz ~ 3.5GHz. Due to the limitation of amplifier choke, in order to take care of the high-end amplitude of the frequency, the amplitude below 1MHz is extremely low (but if you need to reach DC, please contact us, we can easily achieve it by replacing the inductor). Relatively speaking, the frequency response in the full frequency band has a certain slope, but it is still strong in any 500MHz bandwidth.
Package Included:
- 1 x Noise Signal Generator
Note: Power adapter is not included in the package. Please purchase separately.

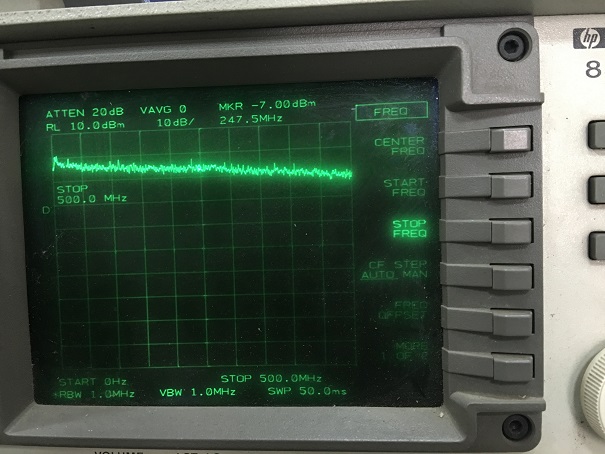

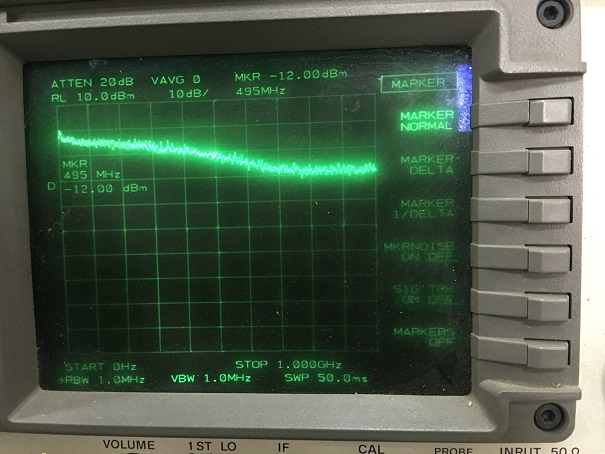

Measured Curve & Measured S21 Curve by Joint Test Filter:

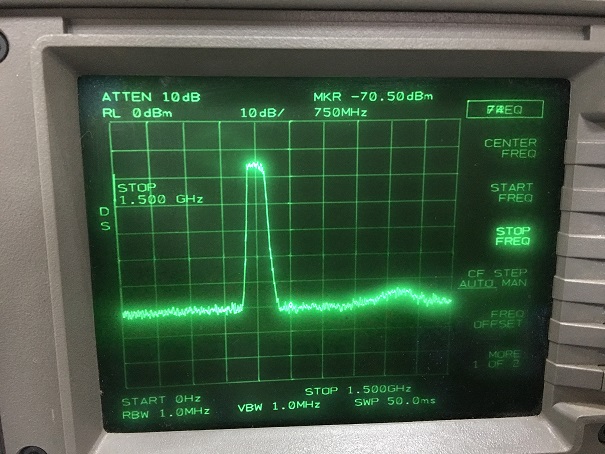

600MHz Bandpass Filter Broadband Frequency Response

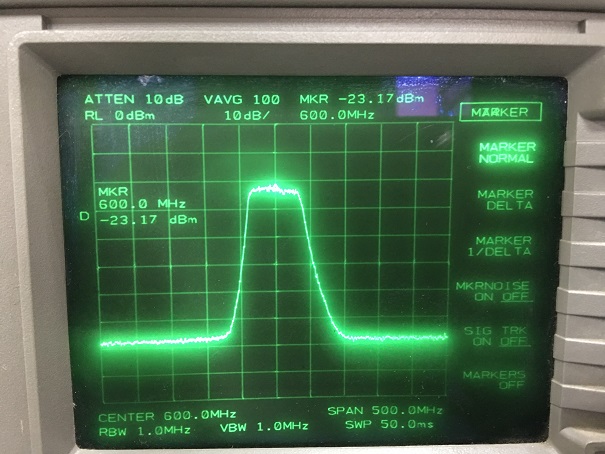

600MHz Bandpass Filter Narrowband Frequency Response

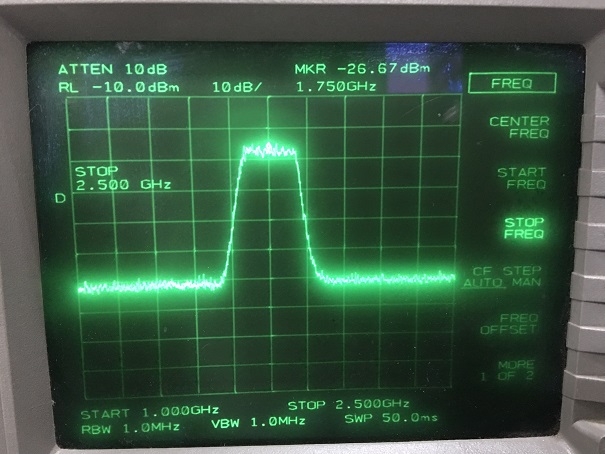

1700MHz Bandpass Filter Broadband Frequency Response
