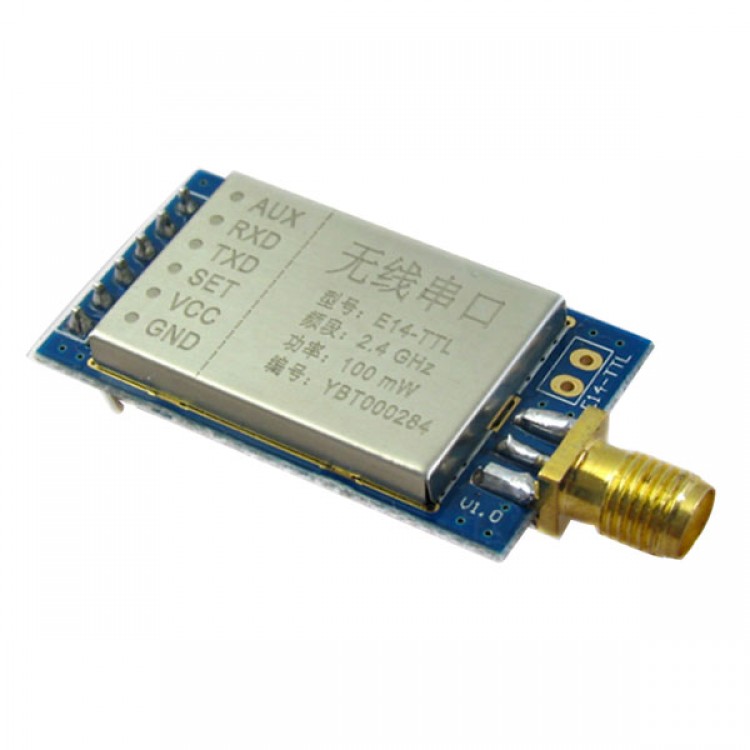

2.4G 100mw Wireless Serial Port Transmission Transmitter Module Transparent Telemetry w/ Shield Cover
Specification:
- Module Size: 20*36mm
- Interface mode: 1*6*2.54mm Can use the universal plate and dupont cable
- Supply voltage: 3.0-5.5VDC,meet the demand of a variety of systems
- The communication level: 2.5VDD-5.2VDC
- Max power: 20dBm,about 100mW
- Air rate: 250K,1M,2M adjustable
- Transmitter current: 50mA peak
- Receiver current: pulse-skipping mode:21mA ,Fixed frequency mode:5.3mA
- Communication interface: UART serial port ,8N1,8E1, 8O1, 1200-115200Bps
- Receive sensitivity: -102dbm@250Kbps
- Working temperature: -40 - +85C
- Working Humidity: 10%-90% relative humidity
- working frequency range: 2400MHz-2520MHz
Package including:
- 1pc x Wireless serial port 2.4g digital Passthrough module 2000m 100mw
