2.4G SP09X Micro DSM2 DSMX Satellite Receiver Compatible with DX6/DX6I/DX8/DX9 Remote Control

2.4G SP09X Micro DSM2 DSMX Satellite Receiver Compatible with DX6/DX6I/DX8/DX9 Remote Control

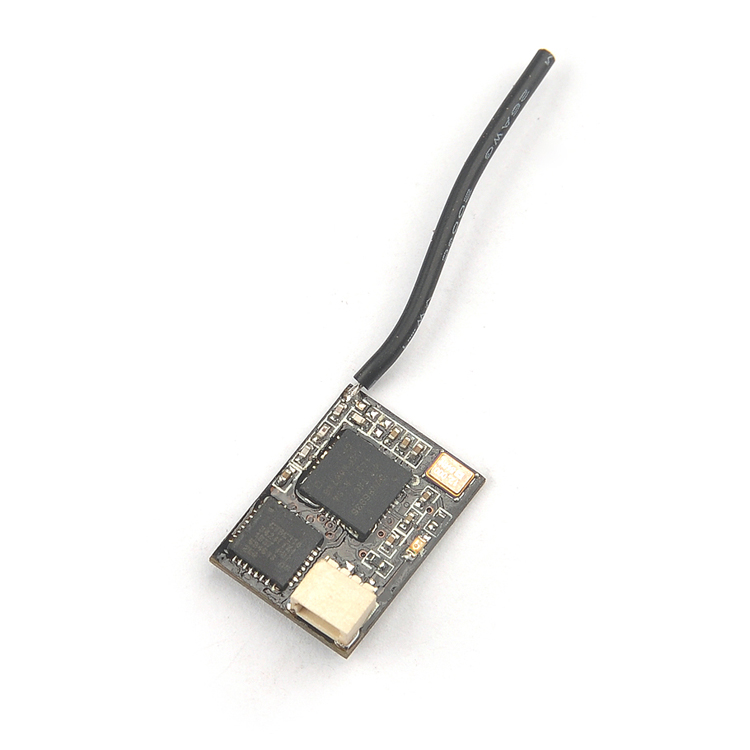

Product Description: 2.4G SP09X micro DSM2/DSMX Satellite receiver,compatible with DX6/DX6I/DX8/DX9 remote control,Huakeer remote controller brush deviation firmware can be used, small size, light weight, suitable for indoor ultra small brushless/brush satellite receiver,can be cooperate with Naze32, F3 flight control to do frequency operation by Cleanflight/Betaflight GUI and remote controller, easy to use.

Specification:
-Item Name: 2.4G SP09X micro DSM2/DSMX Satellite receiver
-Frequency range: 2.403-2.479Ghz
-Input power: 5V
-Response time: 22ms / 11ms
-Resolution: 1024/2048
-Display method: LED
-Operating voltage: 3.3V
-Working current: 60MA

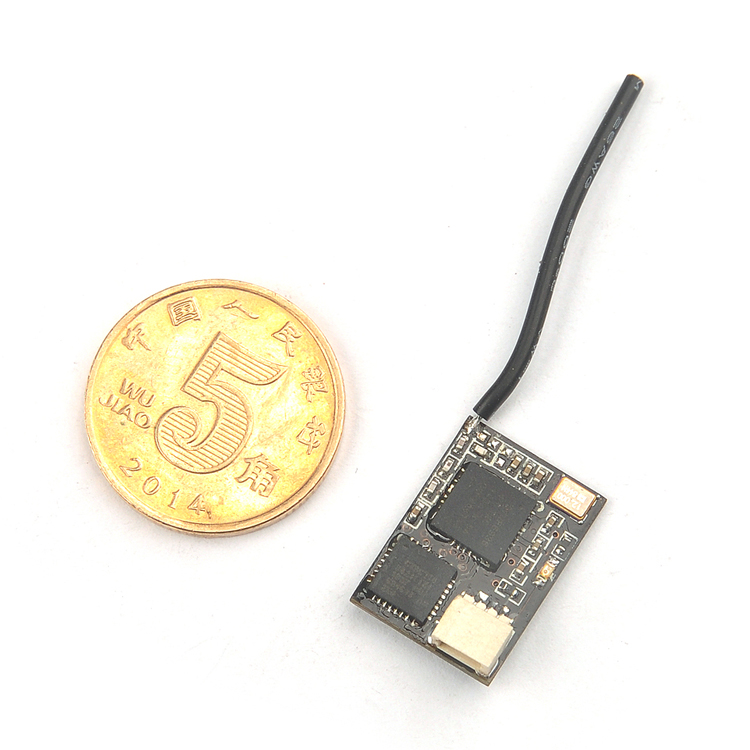

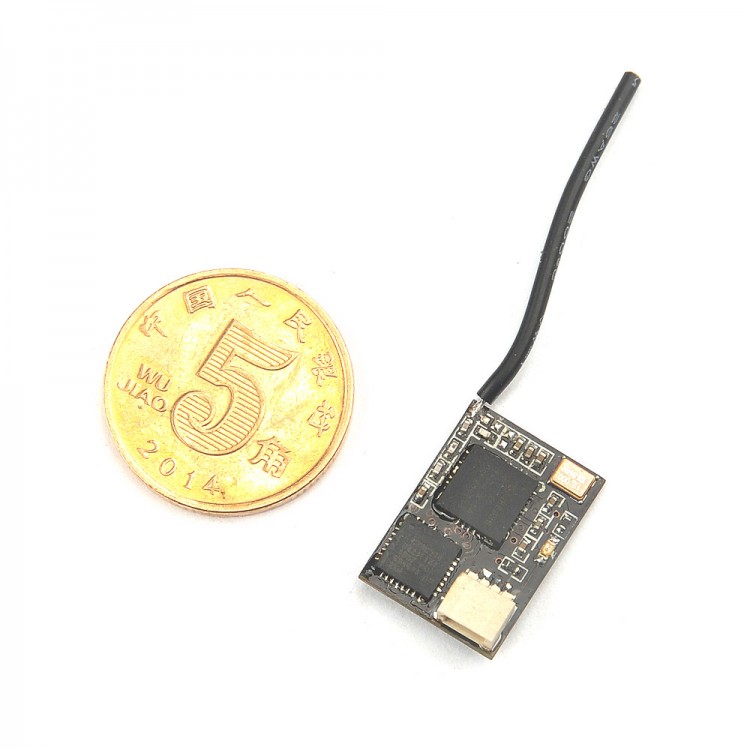

-Size: 18mm*13mm*5mm

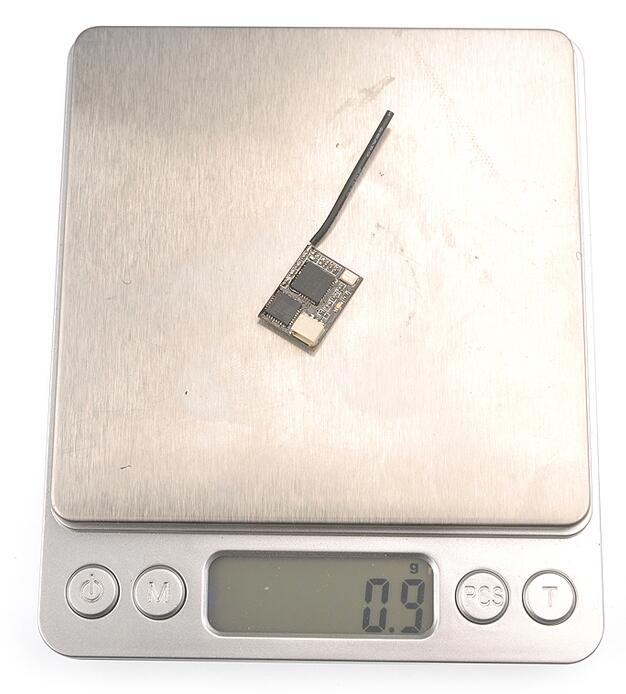

-Weight: 0.9 g
-Antenna length: 30mm
-Data format: Serial port
-Protocol: DSM2/DSMX
-Distance: no ground interference (1 m from the ground ) > 200m
-Uses: Micro indoor/outdoor small aircraft./multi rotor
-Compatible Transmitters: DSM2 / DSMX series of remote control

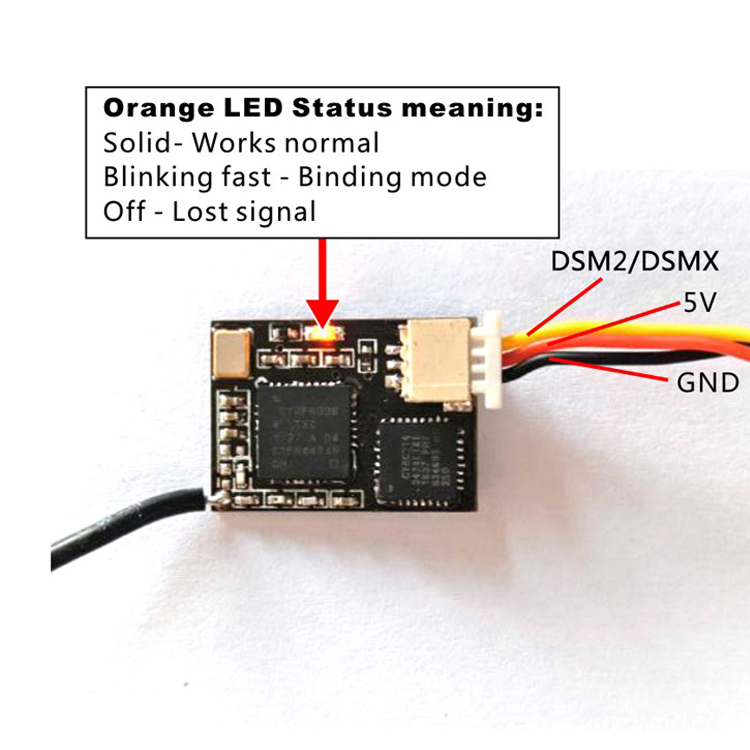

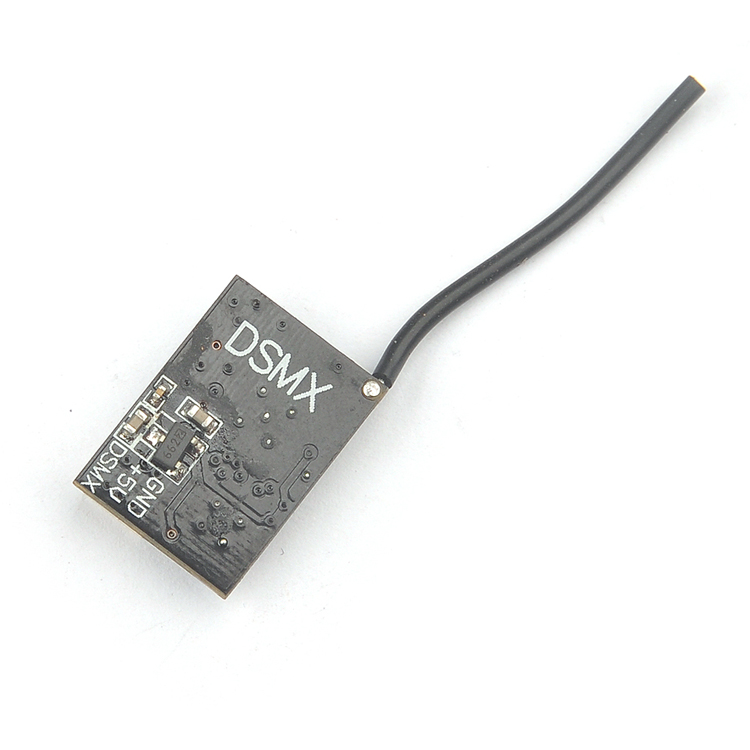

Pin-out Diagram:


Bind procedure With F3 flight controller:

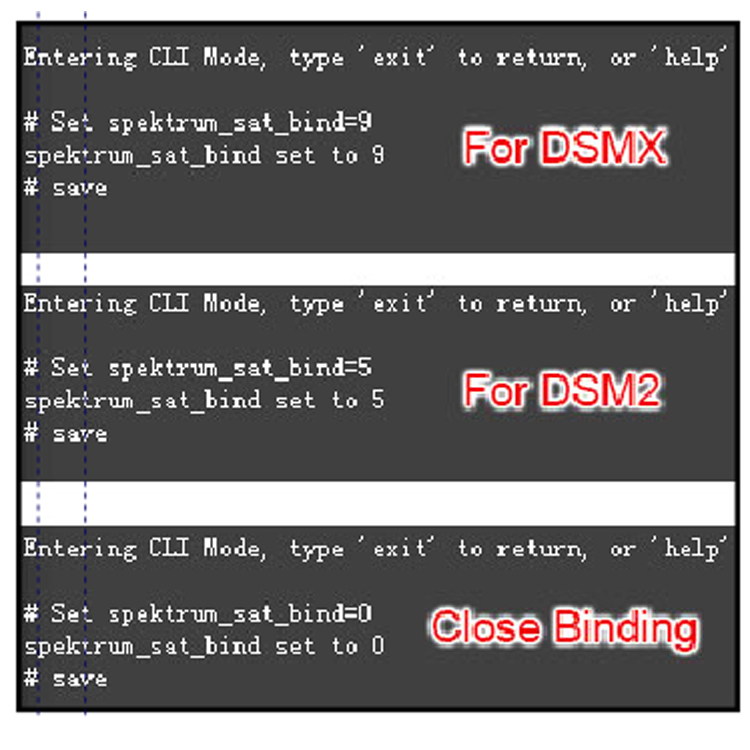

-Connect Flight controller to computer and open Cleanflight configurator From CLI tab type: "set spektrum_sat_bind = 9" for DSMX or "set spektrum_sat_bind = 5" for DSM2
-Type "save" and after Flight controller reboot remove USB cable (=Power off the board)
-Wait a second and reconnect the USB cable. After cold start satellite led(Orange color LED) should start blinking and transmitter should be turned on while pressing the bind button
-After binding satellite led should be solid. Connect Betaflight and use receiver tab to test that satellite is working correctly.
-Final step is to go to CLI tab and type "set spektrum_sat_bind = 0" and then type "save". This must be done so that satellite doesn't go back to binding mode when the Flight controller is repowered again.

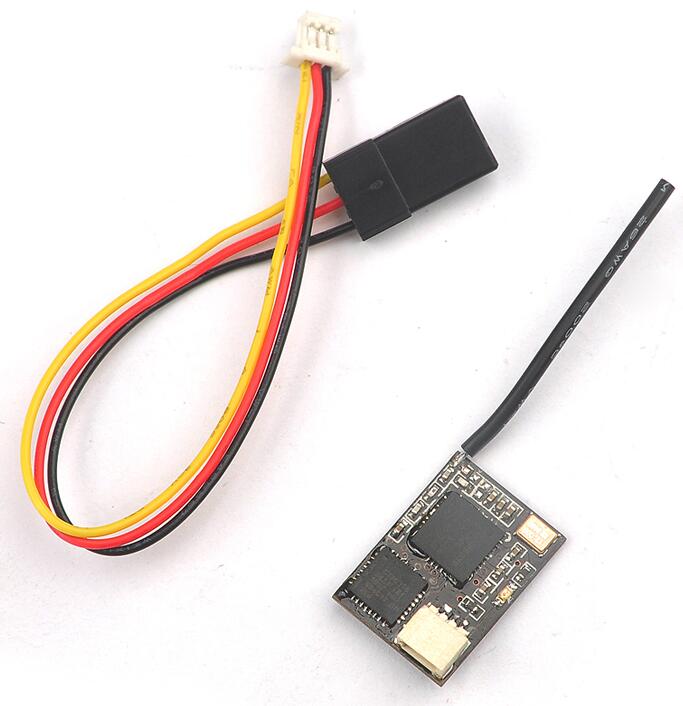

Package List:
- 1 x 2.4G SP09X Micro DSM2 DSMX Satellite receiver
