2.4GHz–2.483GHz 50dB LNA Amplifier Low Noise Amplifier (Powered by 5V Type-C) for Video Transmission

Attention:

* Ensure the input (RFin) and output (RFout) ports are connected first, and only then connect the DC power supply.

* When supplying DC power to the module, make sure the positive and negative terminals are connected correctly. Do not reverse the polarity, as this can damage the module!

Description:

The 2.4GHz low noise amplifier is designed for small signal amplification in applications such as video transmission, Bluetooth, and remote control range extension. It features two-stage amplification and two-stage filtering, offering ≥70dB suppression of signals outside the 2.4GHz–2.483GHz range. The noise figure at 2.45GHz is extremely low, ≤0.85dB.

Specifications:

* Power Supply: 5V

* Operating Current: 200mA

* Bandwidth: 2400–2483MHz

* Gain: 50dB

* Noise Figure: <0.85dB

* Input/Output Impedance: 50Ω

* In-band Flatness: <1dB

* Maximum Input Power: -30dBm

* P1dB Output Power: 20dBm (100mW)

* Housing Dimensions: 58 × 31 × 14 mm (excluding connectors)

* Mounting Holes: M2.5 threaded holes on the base

Packing List:

* 1 x LNA Amplifier

Packaging Details:

* G.W.: 0.22kg

All Reviews (0)

Write a review

Your Name

Your Email

Note: We will keep it confidential.

Your Review

Note: HTML is not translated!

Rating

Captcha

Enter the code in the box below

2.4GHz–2.483GHz 50dB LNA Amplifier Low Noise Amplifier (Powered by 5V Type-C) for Video Transmission

You might like

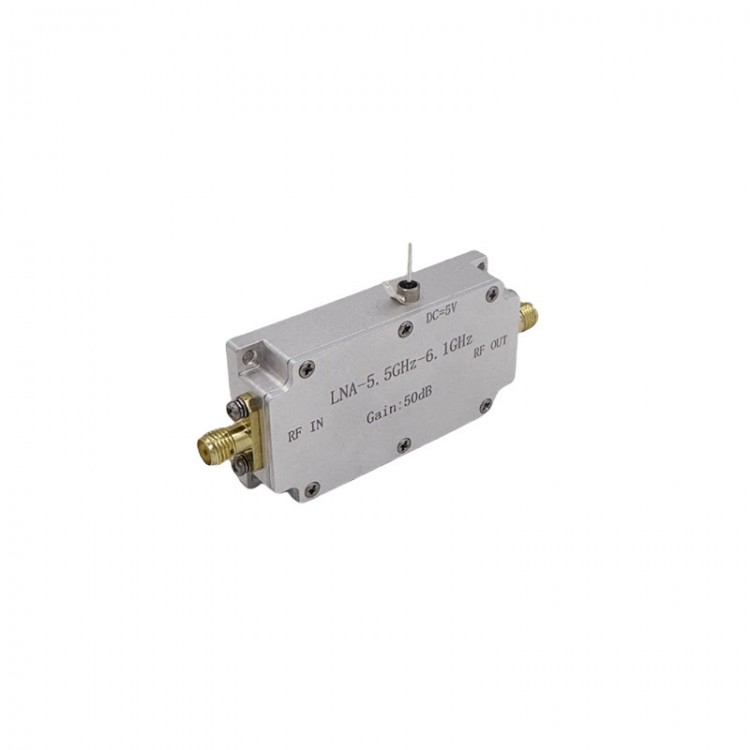

5.8GHz Low Noise Amplifier LNA (Powered by Type-C 5V) with 5.5GHz–6.1GHz Frequency and 50dB Gain
