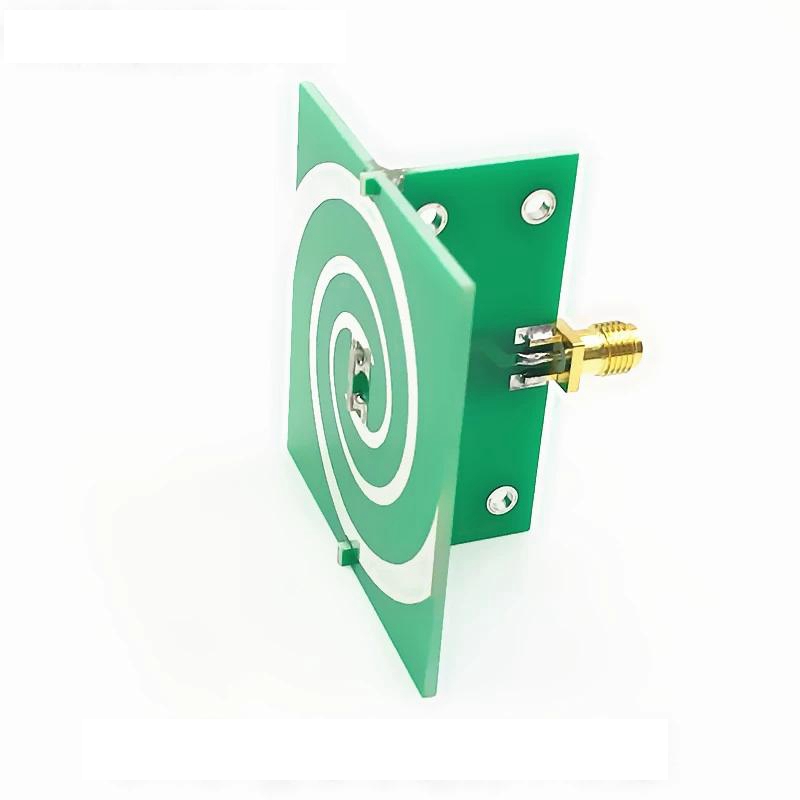

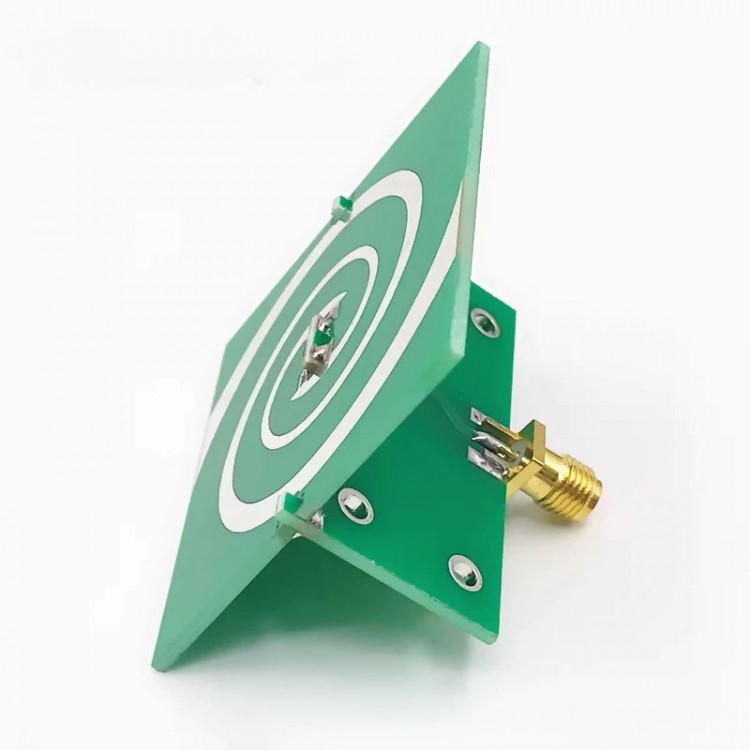

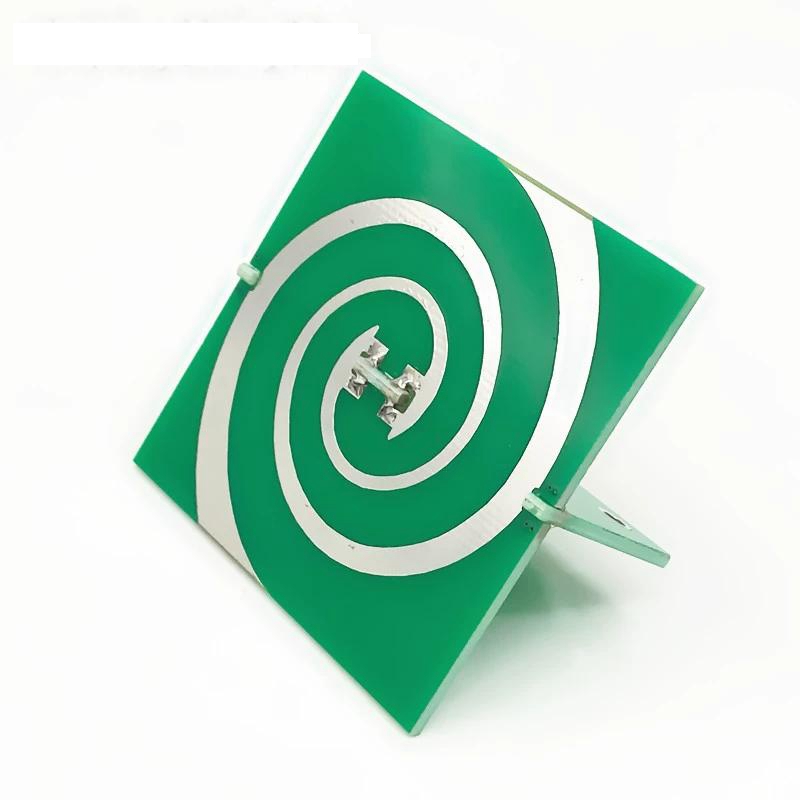

2.4GHz-5.8GHz UWB Antenna RF Ultra Wide Band Spiral Right-handed Circular Polarized Antenna with SMA Female Connector
Description:
- This antenna is a broadband spiral circularly polarized antenna. Suitable for directional wireless signal transmission and reception, signal coverage, broadband signal testing, and other purposes.
- The working frequency of the antenna covers common frequencies such as UWB positioning module and WiFi. Its circular polarization characteristics can reduce the impact of multipath effects.
Specification:
- Working frequency: 2.4GHz - 5.8GHz
- Power capacity: 40W
- Antenna gain: 3.5dBi
- Radiation direction: axial direction of antenna surface
- Polarization method: right-handed circular polarization
- Antenna impedance: 50 ohms
- Return loss: <10dB
- SWR: 1.5 (Typ.)

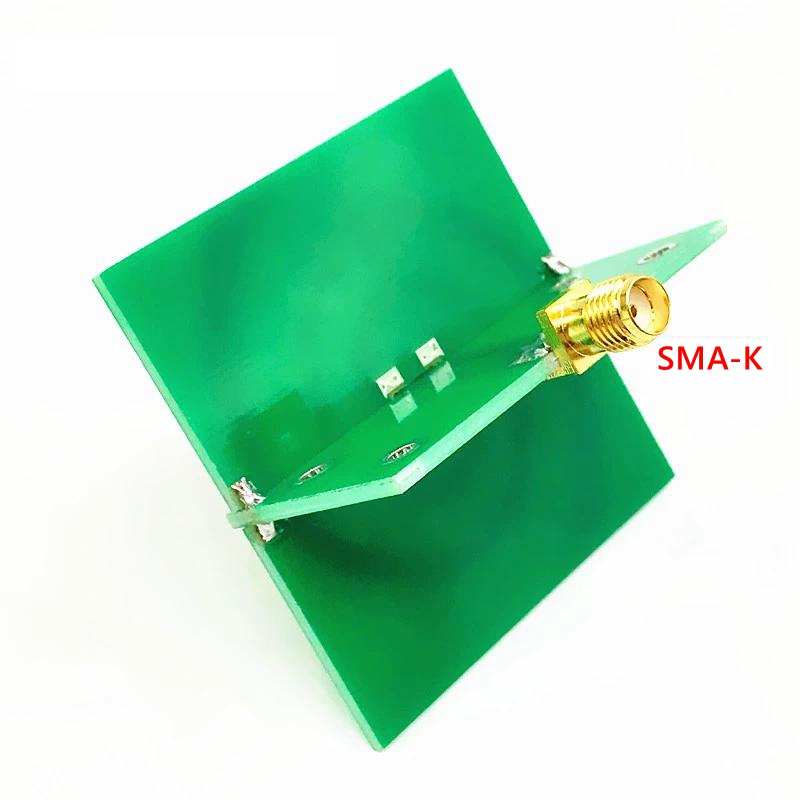

- Connector type: SMA-K (SMA female connector)
- Antenna size: 50 x 50 x 25mm
Package Included:
- 1 x UWB Antenna
