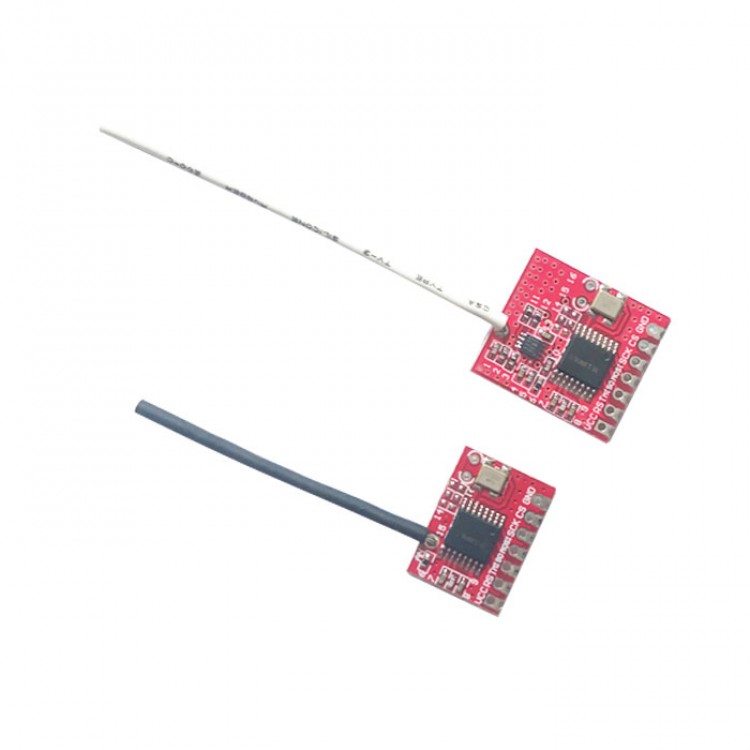

2.4GHz Wireless Transceiver Module Transmitter Receiver Anti-Interference Low Power Consumption 400M
Description:
With a remote control distance of 400m, cost-effective 2.4G wireless module is suitable for the development and application of toys and model airplanes.
Specifications:
- Model: GWB, T400 (PA gain amplifier is added on the basis of GWB)
- Transceiver Type:
T400: It can transmit or receive. Because PA is for unidirectional transmission gain amplification, transmission distance is 400m and the receiving distance is about 50m;
GWB: Transceiver integrated.
So T400 can transmit data to GWB within 400m, but can only receive data from GWB within 50m. It can be applied to high-end remote control models. T400 is installed on a remote control and GWB is installed on your model. After pairing code (or paring frequency), you can control model's forward, backward, left, right, and other actions.
- Working Voltage: 3-3.6V (Instantaneous transmission power is very large. In order to work reliably for the wireless module, please use an LDO above 300mA, and connect a capacitor of more than 100uf in parallel to LDO voltage output terminal)
- Power Consumption: normal working current 30mA, instantaneous transmitting current 340mA
- Transmission Distance: 400M
- Module Interface: 2mm hole spacing, 7P, supporting IIC and SPI
- Module Size: 15.4 * 17mm. Antenna length 50mm
- Weight (1 pair): 2g
Applications:
- When T400 is used as a transmitter, its transmitting distance is 400 meters. As a receiving board, GWB board is suitable for wireless data transmission, wireless remote control car model, ship model, model airplanes and other ocassion;
- T400 can also be used as a receiving board. Receiving distance is about 50 meters. When used for aeromodelling development, two modules can be coded at close range. Because T400's PA gain is unidirectional, it can only amplify transmitting power.
Development Materials:
The wireless module can be equipped with our small N76E003 system board as a DEMO board. DEMO board has reserved the position of the wireless module. We can directly weld it and burn it into the sample program to verify. Download the sample program and other information: https://pan.baidu.com/ s / 1ULuaCK8CPD1PsOhhiMmebA Password: ea3z
Package Included:
- 1 x T400 Module (Transceiver)
- 1 x GWB Module (Receiver)
