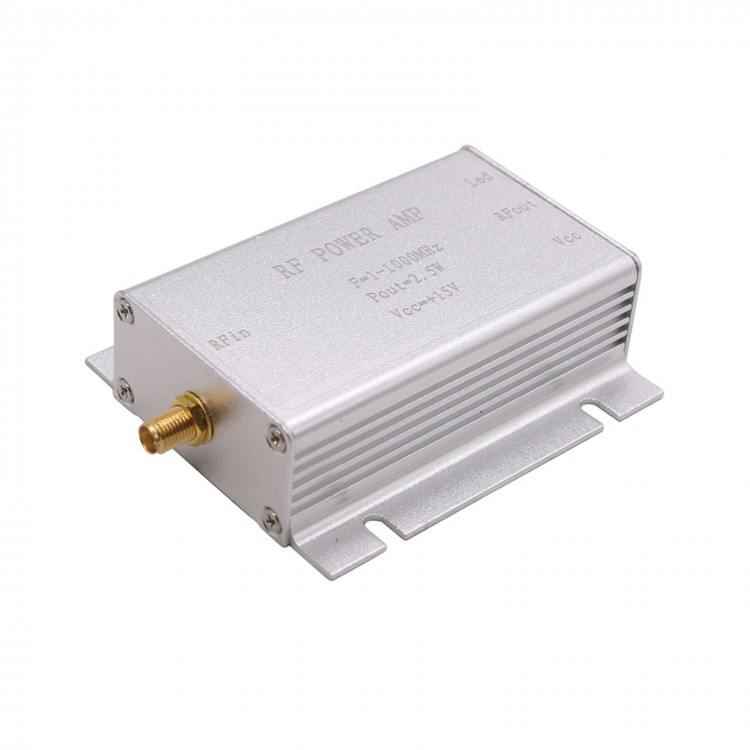

2.5W RF Power Amplifier 1-1000MHz Radio Frequency Power Amplifier Silver
Description:
This RF power amplifier is suitable for all types of radio transmission, such as short-wave FM wireless remote control, FM radio station transmission, amateur radio 135-175MHz, 380-470MHz walkie-talkie and the like. The low-frequency input 2mW can output 2.5W maximum power, and the maximum output can be 2W at 500MHz. The minimum output can be 1.0W at 1000MHz. The amplifier housing has a heat dissipation function and can work stably for a long time.
Technical Parameters:
- Operating Frequency: 1-1000MHz
- Input Power: 2mW (3dBm)
- Output Power:
2.5W (34dBm) low frequency end (1MHz)
2.0W (33dBm) IF terminal (500MHz)
1.5W (31dBm) high frequency end (800MHz)
1.0W (30dBm) high frequency end (1000MHz)
- Working Voltage: 15V (DC)
- Operating Current: 430mA (Depends on the output power)
- RF Connector: Standard SMA Female
- Dimensions: 82*71*25mm (length * width * height)
- Product Weight: 90g
Package Included:
- 1 x RF Power Amplifier
