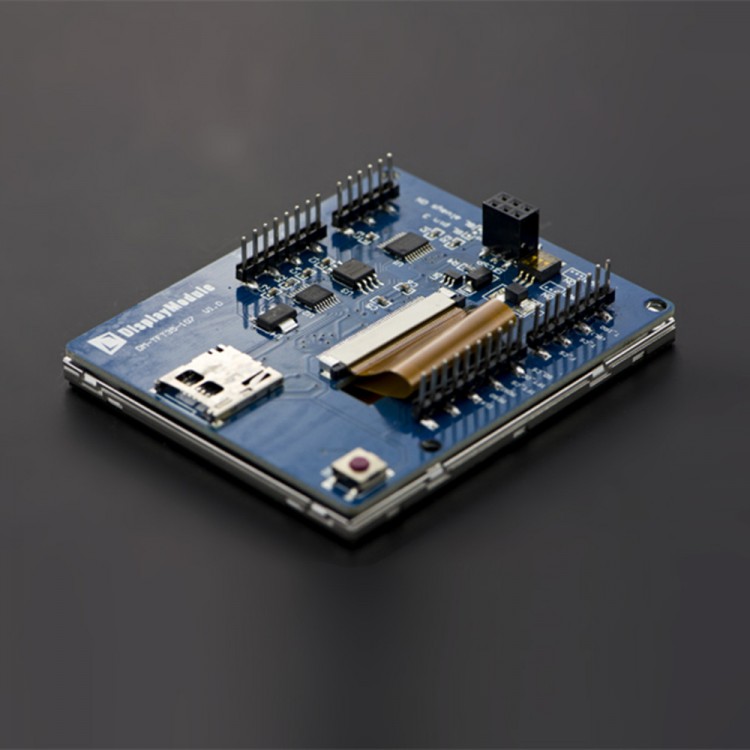

2.8inch TFT Touch Shield Display Module 4MB with 4MB Flash for Arduino and Mbed DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.43
  • Price in reward points: 434 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.56 $41.69 $40.39 $38.65 Contact US
Quantity:

2.8inch TFT Touch Shield Display Module 4MB with 4MB Flash for Arduino and Mbed DIY

Description:

Add some flavor to your Arduino / mbed project with this large colorful touch screen. This TFT Touch screen is a fantastic shield with big (2.8 inch diagonal) and 240 x 320 pixels with individual pixel control which could apply to Arduino and mbed. It also comes with micro SD slot and 4MB flash so you could add it easily to your projects with this 2.8 inch TFT Touch screen.

Specification:
- Model: DM - TFT28 - 105
- Display size: 2.8 inch
- Operating voltage: 3.3V or 5V
- Resolution ratio: 240 x 320
- Communication Interface: SPI
- Flash memory: 4MB
- Operating temperature: -10 - 70
- Support micro-SD card
- Support both arduino and mbed
- Size: 55 * 70 ( W * H) mm
- Viewing area: 43.2 * 57.6 ( W * H) mm
- Weight: 40g

More information: Click here
Arduino base: Click here
Schematic: Click here
Size chart: Click here
Chip data: Click here
2D model: Click here
Application: Click here

Shipping List:
- 2.8 inch TFT Touch x 1
