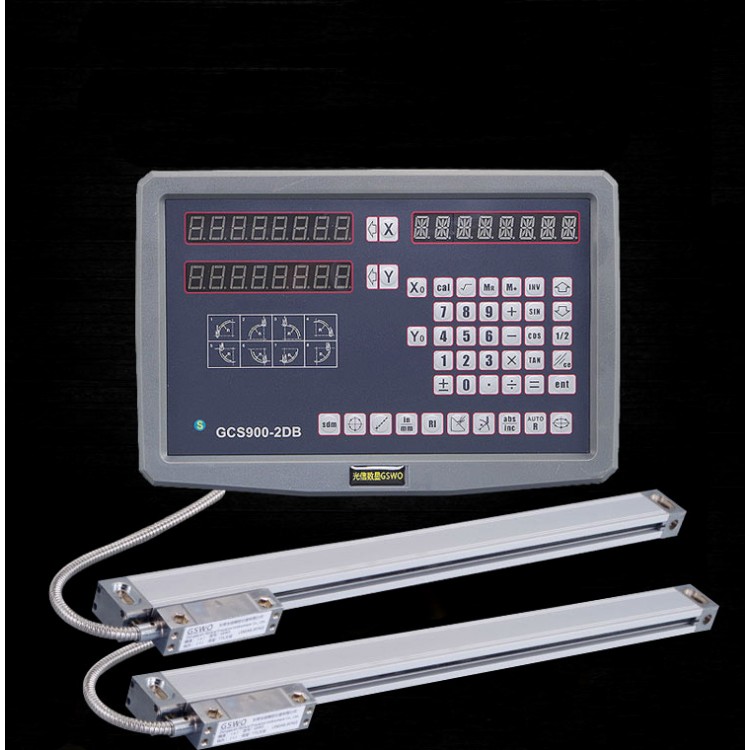

2 Axis DRO Digital Readout Display Meter+2 Scales for Milling Lathe Linear Scale

Availability: In stock, usually dispatched in 1 business day

  • Price:$229.90
  • Price in reward points: 2299 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $225.30 $220.70 $213.81 $204.61 Contact US
Quantity:

2 Axis DRO Digital Readout Display Meter+2 Scales for Milling Lathe Linear Scale


Notice:
It is compete dro kits with parts to fit mounting.The linear scale has to be chosen from 50-1000mm travel length.

Physical length = 140mm + travel length ( please tell us the travel length you want)

Travel length : 50,100,150,200,250,300,350,400,450,500 ,550, 600,650,700,750,800,850,900,950,1000mm.

Functions:
- Zero clearing
- Reset
- mm/inch mode
- ABS/INC coordinate conversion
- 200sets sub datum
- Power off Memory;
- Center of1/2
- Liner error compensation
- Sleepping mode
- Clear 200 sets Sdm datum;
- ABS/INC mode
- Calculator
- Drilling of circumference
- Drilling of oblique line
- Machining of inclined plane
- Machining of circular arc
- Lathe function(match)
- Rectangular lumen gradual processing
- Digital filtering
- R function
- Radius/Diameter function (lathe machine )
- Z+Y sum (lathe machine)

Parameters:
- Voltage Range: AC 85V~260V/50HZ~60HZ
- Power Consumption: 25VA
- Coordinates: 1/2/3/4
- Display: 8 digits display
- Input Signal: TTL square wave EIA-442
- Input Signal frequency: 100KHZ
- Length resolution: 5um
- Operation Keyboard: pressure sensitive key pad

Parameters of Linear Glass Scales
- High Precision linear scale
- Resolution : 5um (0.005mm) 0.0002"
- Signal : TTL square /wave EIA-442
- Grating pitch: 0.02mm (50LP/min)
- Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
- Reference marks at interval of 50mm
- Response Speed: 60m/min or 40ins/sec
- Cable length: 2.5 Meter

Package list:
- 1 x 2 Axis DRO
- 2 x Scales
- 2 x scales covers
- 1 x Cable
- 2 x L plate
- 2 x Bracket
- 2 bag of Screw
