2 Channel PC USB Oscilloscope 100MS/s 35MHz Bandwidth For Windows w/ L06 6-CH Logic Analyzer OSCA02L

Availability: In stock, usually dispatched in 1 business day

  • Price:$129.93
  • Price in reward points: 1299 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $127.33 $124.73 $120.83 $115.64 Contact US
Quantity:
2 Channel PC USB Oscilloscope 100MS/s 35MHz Bandwidth For Windows w/ L06 6-CH Logic Analyzer OSCA02L

Our products help you solve the problems bellow:
1: As a junior hardware engineer, which oscilloscope to choose to get started?
2: Have to share a oscilloscope with your colleagues,how to break?
3: Need to carry a heavy oscilloscope to debug on site, what should I do?
4: Developing electronic projects at home, no oscilloscope is inconvenient, what should I do?
5: Traditional oscilloscopes are expensive, and many functions are not used. Need a powerful and inexpensive oscilloscope?
6: Traditional oscilloscopes are too clumsy to be customized and difficult to integrate into your project. How to solve it?

Please check official video for details: how it works, useful features, quick overview.
https://youtu.be/mUM9R6rnH90

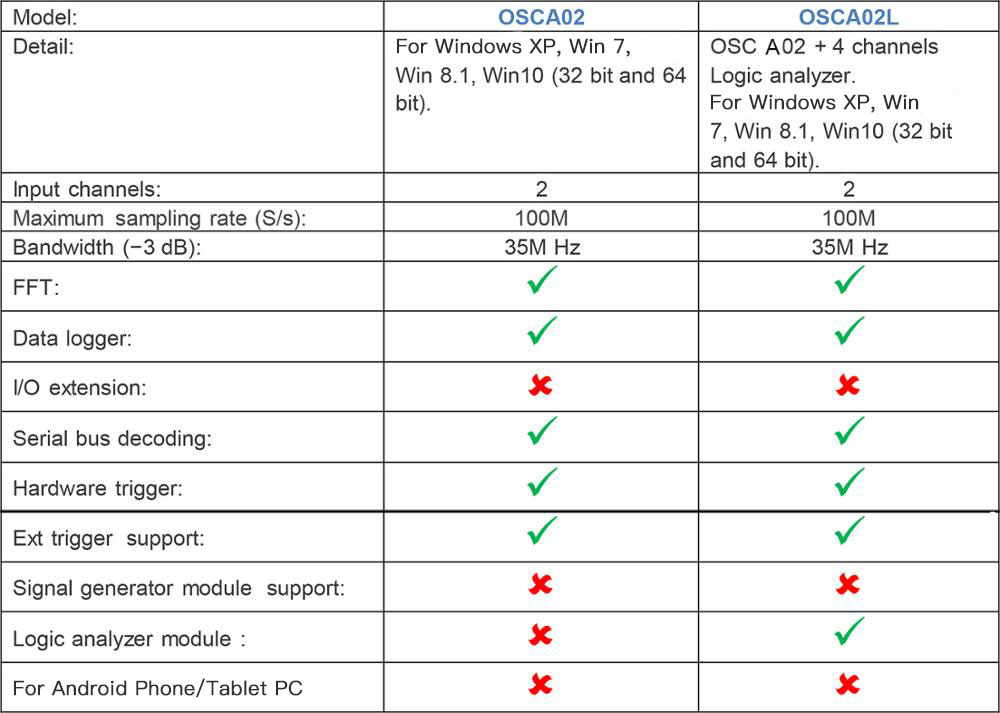

OSCA02 series provide you excellent oscilloscope performance:

- OSCA02= Basic version. 100MS/s sampling rate, 35MHz Bandwidth, 2-channel.
- OSCA02L=OSCA02+ L06 logic analyzer (6-Channel).
- OSCA02M=OSCA02+ For Android phone/tablet PC (Not only for Windows, OSCA02M supports for Android phone and Android tablet PC).
- OSCA02E=Enhanced version. 200MS/s sampling rate, 60MHz Bandwidth, 2-channel.

With 100MS/s sampling rate and 35MHz bandwidth, OSCA02 will fit most of your testing needs. With OSCA02 PC-based oscilloscope, you can combine it with logic analyzer module as OSCA02L. OSCA02 supports for Windows OS from Win XP to Win 10.

We keep updating oscilloscope software for improving software features/operations to the link: http://bbs.lotoins.com/support.html Please check to download the latest version.

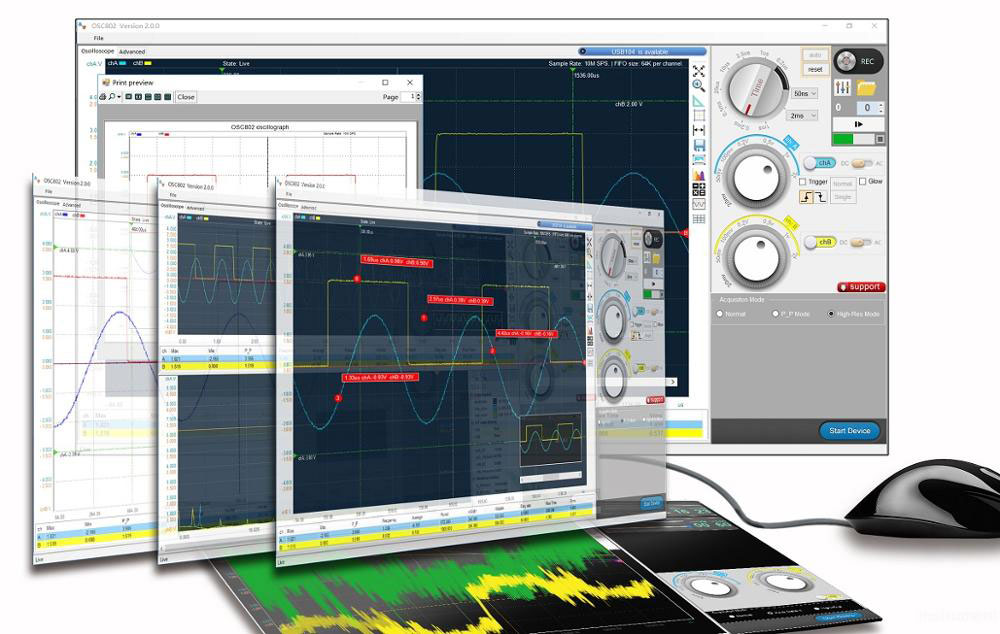

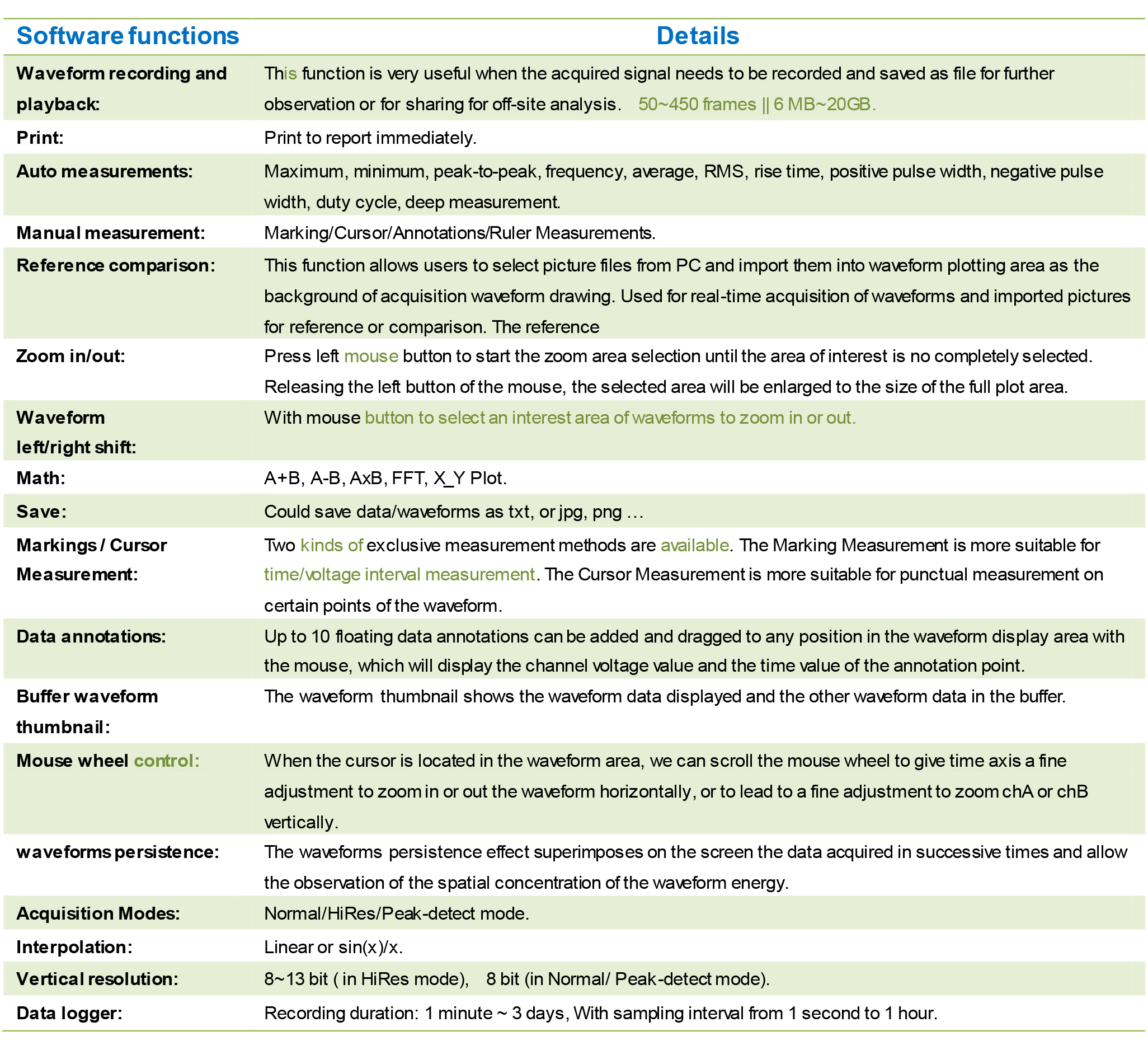

Let's have a look at the Software Application for Windows



Application scenarios and applicable population:

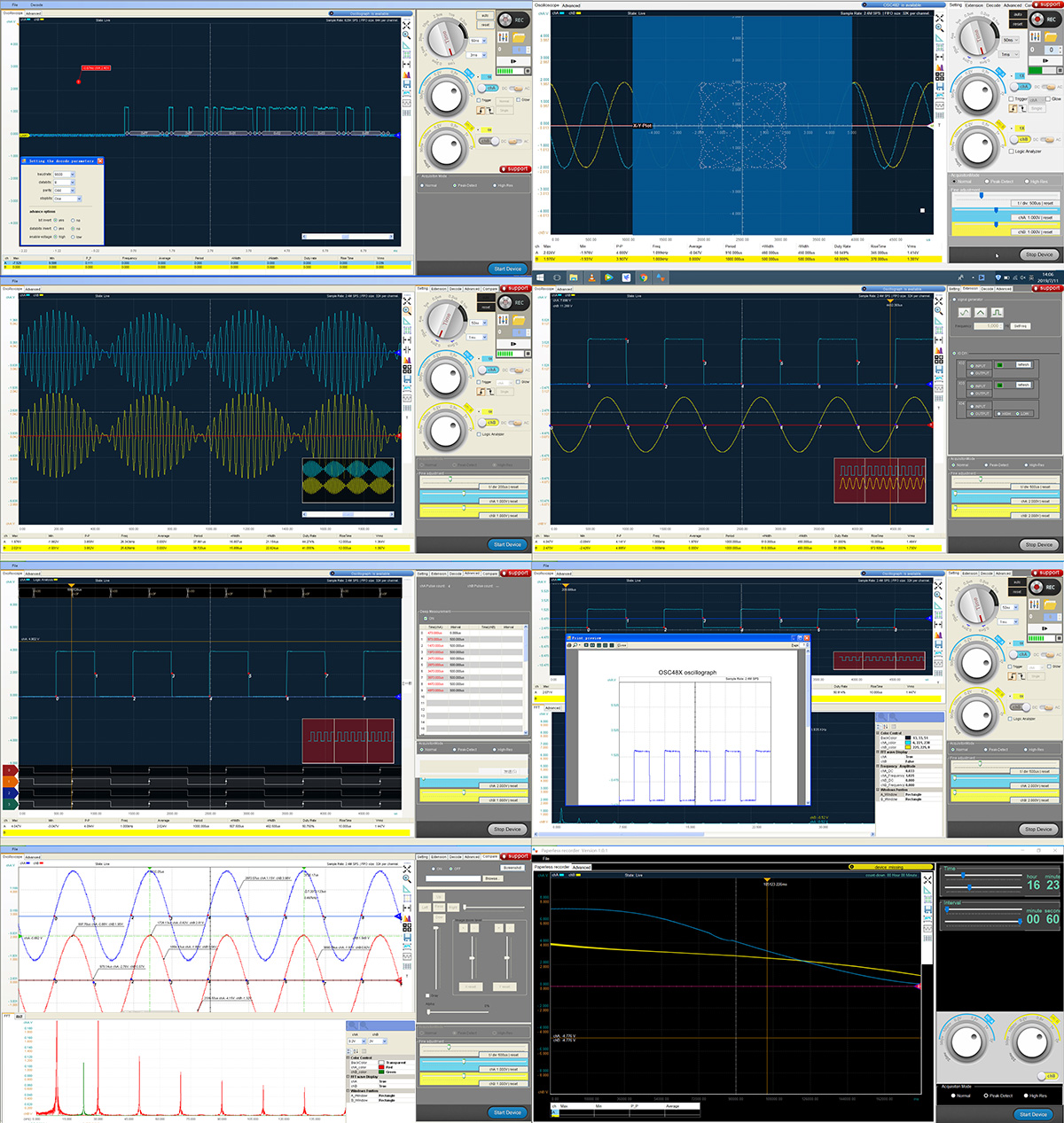

In the above picture, we will see serial port decoding, X_Y drawing, carrier amplification, multi-point automatic measurement, analog input and logic analysis, printing and FFT of the Software Application for Windows, and the working scene of the data logger. This product is recommended for hardware circuit development and measurement, teaching equipment, on-site commissioning, encoder inspection, vehicle maintenance, automated inspection equipment, power ripple testing, solar system inspection. It is developed for hardware engineers, automatic electronics, electronic geeks, field engineers, college students.

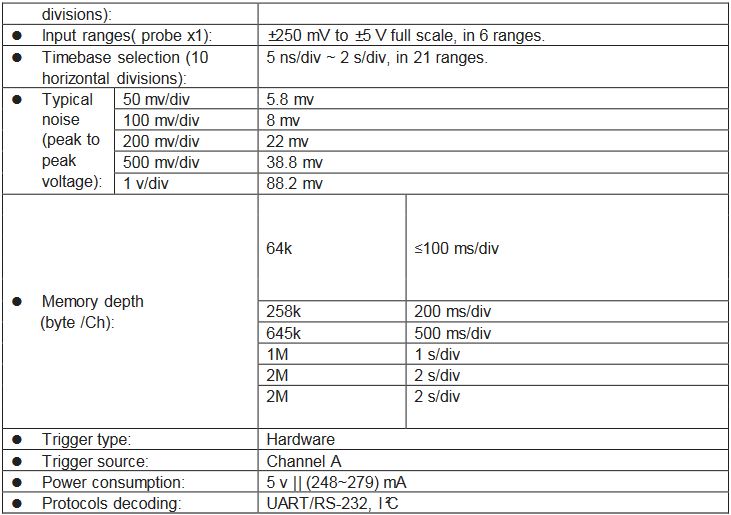

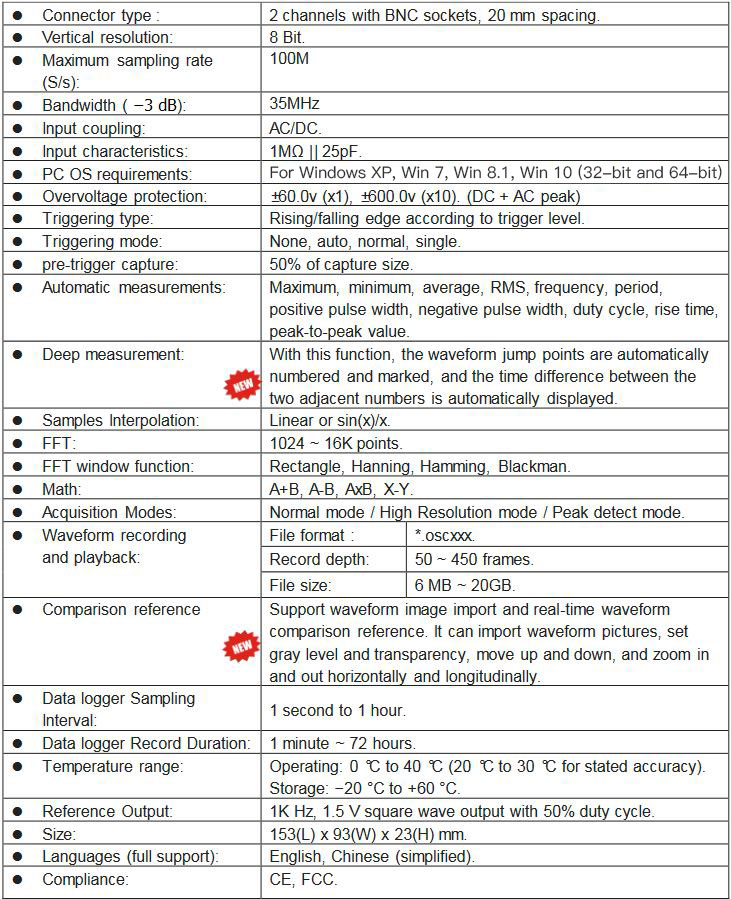

Hardware Features and Specifications:

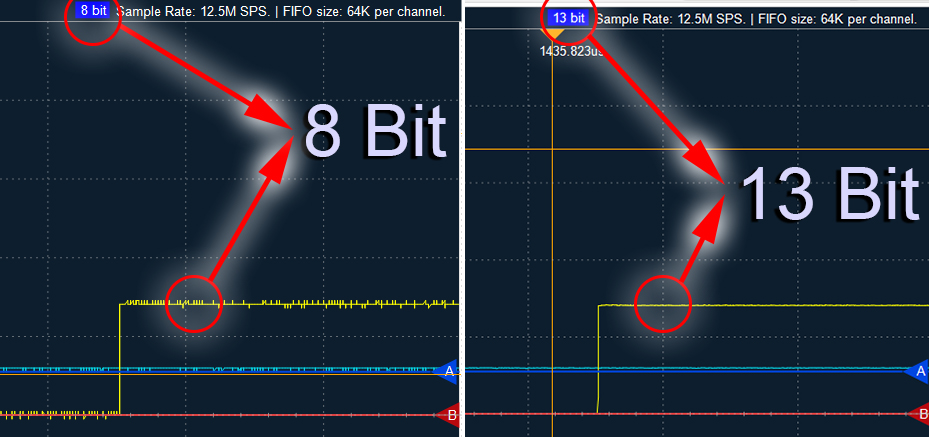

8~13 bit Vertical Resolution:


Module Extensions:

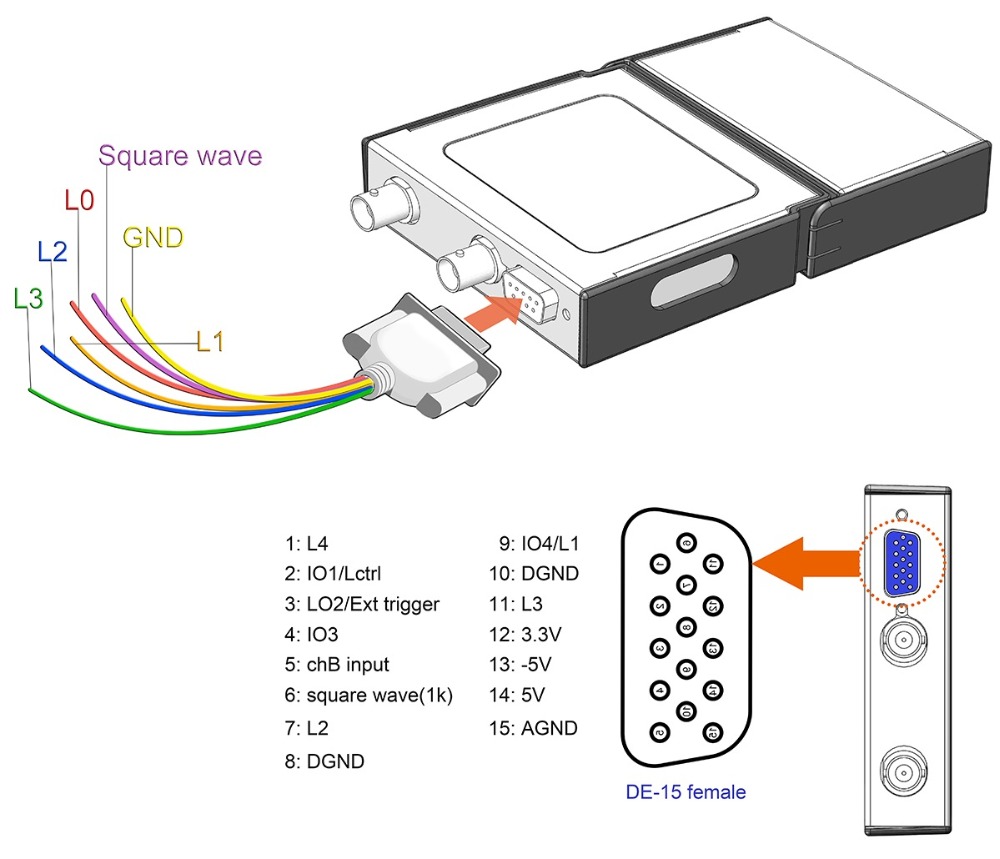

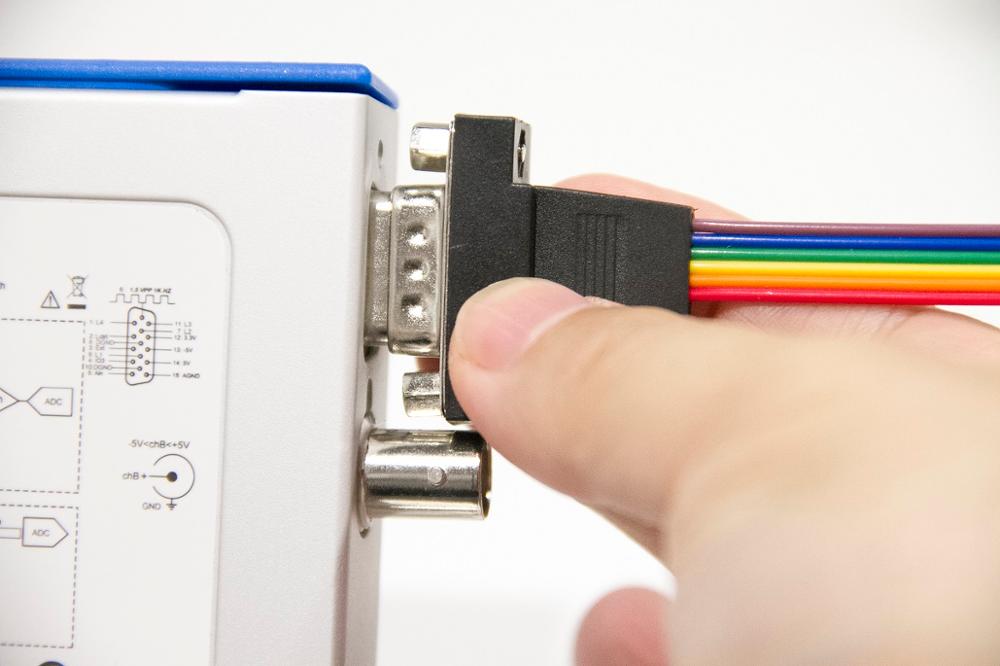

let's take a look at the product hardware interface for extensions: The open DE-15 hardware interface can provide digital power as well as analog power, GPIO ports and analog input channels as shown below. This interface an be used as a standard access for signal generator modules or logic analyzer modules. Although these two modules can be plug and play in frequent use, it is recommended to connect the module after the device is powered off.



Package Included:

- 1 x USB Oscilloscope
- 1 x USB Cable
- 2 x Passive Probes (60MHz x1/x10)
- 1 x L06 6-Channel Logic Analyzer

Note: Other items pictured are not included, for demonstration purposes only.

FAQ:
Q: What is the measuring range?
A: The scope's measuring range is 5V(with probe on X1) and 50V(with probe on X10). If you need to measure higher voltage up to 500V, please purchase X100 probe separately.

Software Download:
Download for free, we will keep updating. bbs.lotoins.com/support.html
