USB Oscilloscope 2 Channel 1GS/s Sampling Rate 50MHz For Windows w/ L06 Logic Analyzer 6-CH OSC2002L

Availability: In stock, usually dispatched in 1 business day

  • Price:$119.27
  • Price in reward points: 1193 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $116.88 $114.50 $110.92 $106.15 Contact US
Quantity:

USB Oscilloscope 2 Channel 1GS/s Sampling Rate 50MHz For Windows w/ L06 Logic Analyzer 6-CH OSC2002L

Our products help you solve the problems bellow:
1: As a junior hardware engineer, which oscilloscope to choose to get started?
2: Have to share a oscilloscope with your colleagues,how to break?
3: Need to carry a heavy oscilloscope to debug on site, what should I do?
4: Developing electronic projects at home, no oscilloscope is inconvenient, what should I do?
5: Traditional oscilloscopes are expensive, and many functions are not used. Need a powerful and inexpensive oscilloscope?
6: Traditional oscilloscopes are too clumsy to be customized and difficult to integrate into your project. How to solve it?

Official video instruction answers all your questions.

https://youtu.be/mUM9R6rnH90

OSC2002 series provide you excellent oscilloscope performance:
- OSC2002: 2 Channel, 1GS/s Sampling Rate, 50MHz Bandwidth. It is not for signal generator module.
- OSC2002L: OSC2002 + L06 logic analyzer (six-channel) with maximum sampling rate 100M.
- OSC2002M: OSC2002 + support for Android phone. With 100M sampling rate, 35M bandwidth performance for Android phone.

With 1GS/s rate and 50MHz bandwidth, OSC2002 will fit most of your testing need. With OSC2002 PC-based oscilloscope, you can combine it with logic analyzer module as OSC2002L. OSC2002 supports for Windows from Win XP to Win 10.

We keep updating oscilloscope software for improving software features/operations to the link: http://bbs.lotoins.com/support.html Please check to download the latest version.

Let's have a look at the Software Application for Windows.



Application scenarios and applicable population:
In the above picture, we will see serial port decoding, X_Y drawing, carrier amplification, multi-point automatic measurement, analog input and logic analysis, printing and FFT of the Software Application for Windows, and the working scene of the data logger. This product is recommended for hardware circuit development and measurement, teaching equipment, on-site commissioning, encoder inspection, vehicle maintenance, automated inspection equipment, power ripple testing, solar system inspection. It is developed for hardware engineers, automatic electronics, electronic geeks, field engineers, college students.

Hardware Features and Specifications:


8~13 bit Vertical Resolution:


Module Extensions:
Let's take a look at the product hardware interface for extensions: The open DE-15 hardware interface can provide digital power as well as analog power, GPIO ports and analog input channels as shown below. This interface an be used as a standard access for signal generator modules or logic analyzer modules. Although these two modules can be plug and play in frequent use, it is recommended to connect the module after the device is powered off.



It can also be DIY a function module as shown in the figure below, and also access the device through the DE-15 interface.

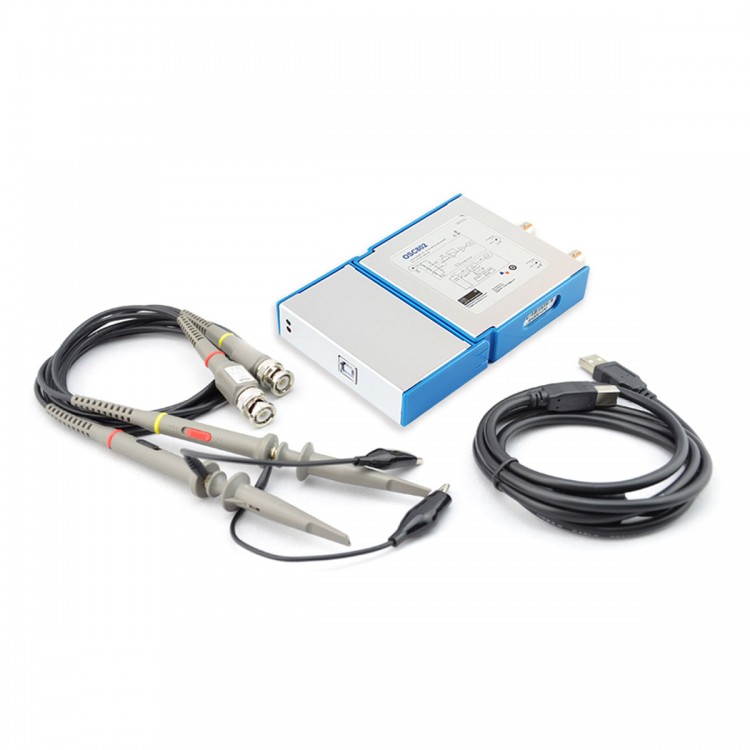

Package Included:

- 1 x USB Oscilloscope
- 1 x USB Cable
- 2 x Passive Probes (60MHz x1/x10)
- 1 x L06 Logic Analyzer 6-CH

Note: Other items pictured are not included, for demonstration purposes only.

FAQ:

Q: What is the measuring range?
A: The scope could measure 5V(with probe on X1) and 50V(with probe on X10). If you need to measure higher voltage up to 500V, please purchase X100 probe separately.

Software Download:
Please down load for free, we will keep updating. bbs.lotoins.com/support.html
