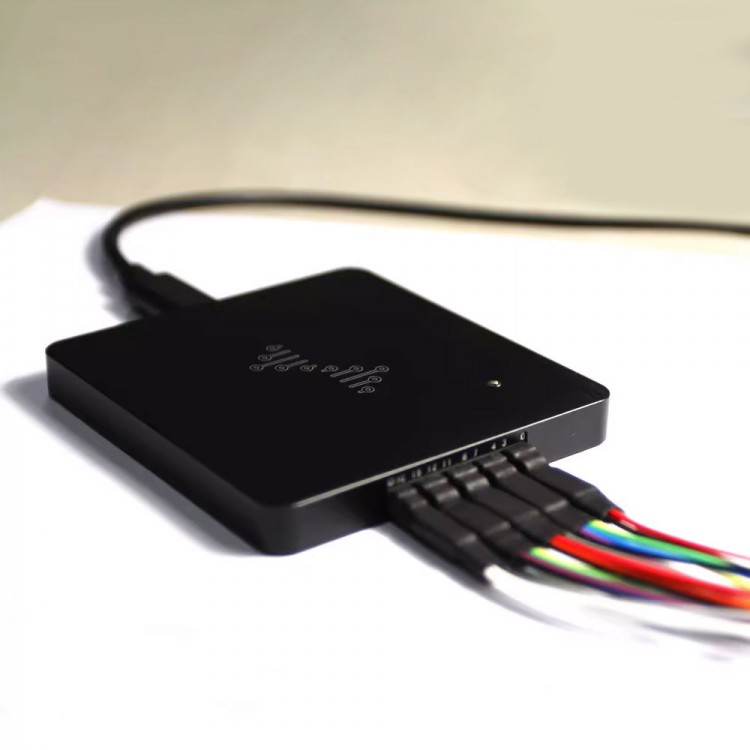

DSLogicU2Pro16 Personal Edition USB2.0 1GHz 16-Channel Logic Analyzer Buffer/Stream Dual Modes Sampling

DSLogicU2Pro16 Personal Edition USB2.0 1GHz 16-Channel Logic Analyzer Buffer/Stream Dual Modes Sampling

Description:
- Logic analyzer is a specialized debugging tool for digital signals, which can collect data for a long time, has no waveform dead zone, supports complex trigger positioning, and comprehensive protocol content analysis.
- Oscilloscopes are suitable for observing voltage changes and noise in periodic signals; Logic analyzers only collect high and low voltage levels, and are better at analyzing digital communication processes and complex protocol parsing.

Advantages:
- Independent research and development, continuous software updates; Multi platform support, for Windows native driver, genuine digital signature.
- Dual mode support: buffer mode with high sampling rate, stream mode with long acquisition time; The sampling rate is analogous to screen resolution, with higher resolution resulting in clearer images. It is recommended to use a sampling rate of 10-100 times the frequency of the measured signal.
- The Stream mode transfers the collected data in real-time to the computer memory via USB, with a maximum depth of 16G, greatly improving the waveform recording time.
- Unique design optimizes the integrity of high-frequency signals. Adopting a shielded cable design to eliminate noise interference and restore the true signal.
- Supporting nearly a hundred protocol parsing: DSLogic not only supports ordinary protocol parsing to directly display protocol data content, but also supports multi-layer protocol stacking to make data display more intuitive and easy to understand. Directly display the page read and write content of EEPROM, support nearly a hundred protocols from open source protocol libraries, support triggering specific protocol content, support parsing protocol content to export text files, and support searching specific protocol content.
- Software control: supports scrolling/area/gesture zooming, mouse following measurement; Insert any number of cursor and support edge suction; Edge spacing measurement; Support multiple ways of edge statistics.
- Adjustable threshold, compatible with various voltage standards: 1.2V/1.8V/2.5V/3.3V/5.0V...
- All metal CNC integrated molding, better shielding, better heat dissipation, and higher appearance.
- Type-C interface, ultra long lifespan, support positive and negative plugging.

Supported Protocols:
- Basic Protocols: For I2C, UART, SPI, CAN, I2S, JTAG, 1-Wire link layer, DMX 512, PWM, Parallel, SWD, USB PD, USB signalling, SWIM, SD card (SD mode), PS/2, MDIO, Stepper motor, Timing, Z80, AC'97, Counter, IR NEC, IR RC-5, AM230x, AUD, AVR PDI, CEC, DALI, DCF77, DSI, EM4100, EM4305, GPIB, Gray code, Guess bitrate, Jitter, LPC, Maple bus, MCS-48, Microwire, Miller, Morse, OOK, Qi, RC encode, RGB LED (WS281x), SDA2506, S/PDIF, ST7735, T55xx, TITLC5620, Wiegand...

- High-level Protocols: For LIN, 24xx EEPROM, 93xx EEPROM, USB request, USB packet, 1-Wire network layer, AVR ISP, nRF24L01(+), RGB LED(SPI), SD card(SPI mode), SPI flash/EEPROM, Modbus, MIDI, I2C demux, I2C filter, ETMv3, ARM ITM, ARM TPIU, ATSHA204A, DS1307, EDID, LM75, MLX90614, MXC6225XU, Nunchuk, RTC-8564, TITCA6408A, XFP, JTAG/E JTAG, JTAG/STM32, CFP, DS243x, DS28EA00, Oregon, OOK visualisation, ADE77xx, ADF435X, ADNS-5020, MAX7219, MRF24J40, RFM12, SSI32, PAN1321...

Specification:
- Model: DSLogic U2Pro16
- USB transmission speed: USB2.0 (480Mbps)
- Supported mode: buffer (Transmission after collection, the sampling rate is high and the collection time is relatively short.); stream (Collecting and transmitting simultaneously, with long collection time and relatively low sampling rate.)
- Maximum sampling rate (per channel):
  Buffer mode: 1GHz (8-channel); 500MHz (16-channel)
  Stream mode: 1GHz (3-channel); 500MHz 6-channel); 250MHz (12-channel); 125MHz (16-channel)
- Minimum collectable pulse width: 2ns
- Maximum collectable signal: 250MHz
- Maximum acquisition depth: 16G for stream mode; 4G for buffer mode
- Maximum acquisition time (stream mode): 160s at 100M sampling rate; 4 hours at 1M sampling rate; 19 days at 10K sampling rate
- Hardware memory: 4Gbits
- Trigger: simple trigger, 16-level hardware trigger, protocol trigger (I2C/SPI/...)
- Threshold: 0 - 5V adjustable (0.1V step)
- Voltage withstand range: ±30V
- Input impedance: 250KI/~13pF
- Status sampling: up to 50MHz
- External interface: high frequency shielding cable

Package Included:
- 1 x Logic Analyzer
- 4 x Set of Shielding Pin Cable
- 1 x USB2.0 Data Cable
