DSLogic Logic Analyzer USB3.0 16 Channel 1G Sampling with Buffer Stream Dual Mode DSLogicU3Pro16

Specifications:
USB transfer rate: USB3.0 (5Gbps)
Supported modes: buffer, stream
Maximum sampling rate: buffer mode: 1GHz (8 channel); 500MHz (16 channel); stream mode: 1GHz (3 channel); 500MHz (6 channel); 250MHz (12 channel); 125MHz (16 channel)
Minimum pulse width: 2ns
Highest collected signal: 250MHz
Maximum collection depth: stream mode: 16G; buffer mode: 2G
Maximum collection time: stream mode: 16 seconds@1G sampling rate; 160 seconds@100M sampling rate; 4 hours@1M sampling rate; 19 days@10K sampling rate
Hardware memory: 2Gbits
Trigger: simple trigger, 16-level hardware trigger, protocol trigger (I2C/SPI/...)
Threshold: 0-5V adjustable (0.1V step)
Withstand voltage range: ±30V
Input impedance: 250K //~13pF
State sampling: max 50MHz
External interface: high-frequency shielded wire, each channel has a shielded ground

Features:
1. Dual mode support, high sampling rate in buffer mode, long collection time in stream mode.
2. Unique design, optimize high frequency signal integrity. The enhanced version uses a shielded cable design to eliminate noise interference and restore the true signal.
3. Support nearly 100 kinds of protocol analysis, multi-layer protocol stacking, specific protocol content trigger, protocol analysis content export text file and specific protocol content search.
4. Software control, simple and convenient. Support scroll/area/gesture zoom, mouse follow measurement. Support multiple ways of edge statistics.
5. File storage, configuration memory, convenient to review, share, and process again.
6. All-metal CNC integrated housing, better shielding and better heat dissipation. Group anti-reverse plug cable interface.

Package Included:

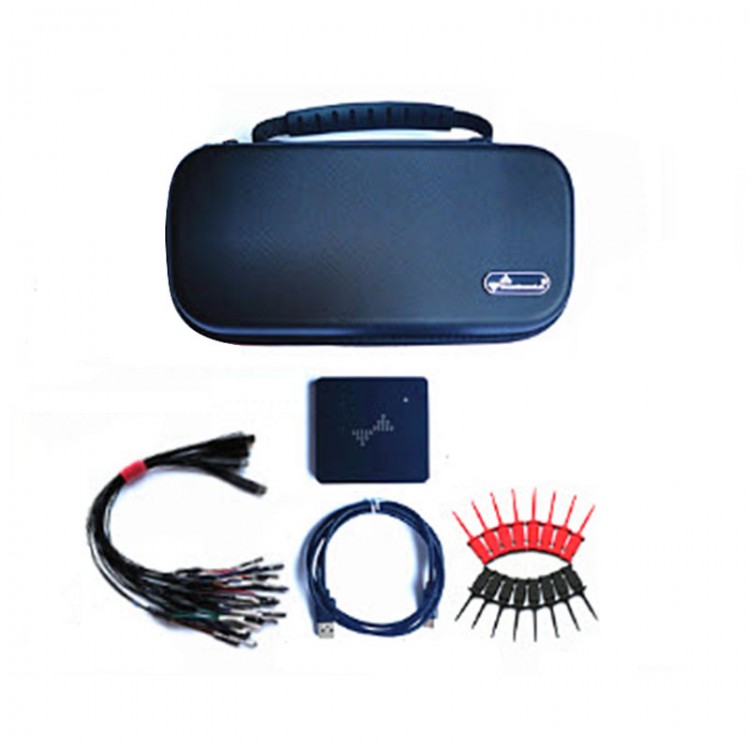

1 Set of DSLogicU3Pro16 Logic Analyzer
