|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$298.09||$292.00||$282.88||$270.71||Contact US|
1.The machine is a combination of battery spot welding and circuit board solder, which makes your work more convenient.
2.Fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.
3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
4.Possess welding current rapid regulator, selecting the current will become quick and efficient.
5.The anti-static soldering station which controls the temperature accurately ,it is suited for welding any intergrated circuit or wiring.
6.The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.
- Spot-welder part:
- Supply Voltage: AC 110 V for US/CA/MEX
- Power: 1.9 KW (Instantaneous)
- Current: 500 A
- Electric leakage Switch Requirement: 60 A or more than 60 A
- Time of Double Pulse: 1 ~ 10 ms
- (Instantaneous Welding Time): (adjustable, by adjusting the welding current knob)
- Time of Four Pulses(Instantaneous Welding Time): 2 ~ 20 ms (adjustable)
- Time of Eight Pulses (Instantaneous Welding Time): 8 ~ 80 ms (adjustable)
- Welding Pin Range: 5 - 6 mm
- Welding Pressure: 300 - 500 g
- Welding Distance: Adjustable
- Suitable Welding Thickness: 0.03 - 0.3 mm for Fixed Copper Head
- 0.03 - 0.2 mm for Mobile Welding Pen
Soldering iron part:
- Temperature: 150°C ~ 450°C
- Power: 50 W
- Output Voltage: 20 V DC
1. This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.
2. The welding thickness 0.03 - 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated steel, the range is 0.08 - 0.3 mm.
3. Rated current of tripping device of the leakage protection switch should be up to 60A.
4. For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.
How to set the welding parameter?(We offer some examples for reference):

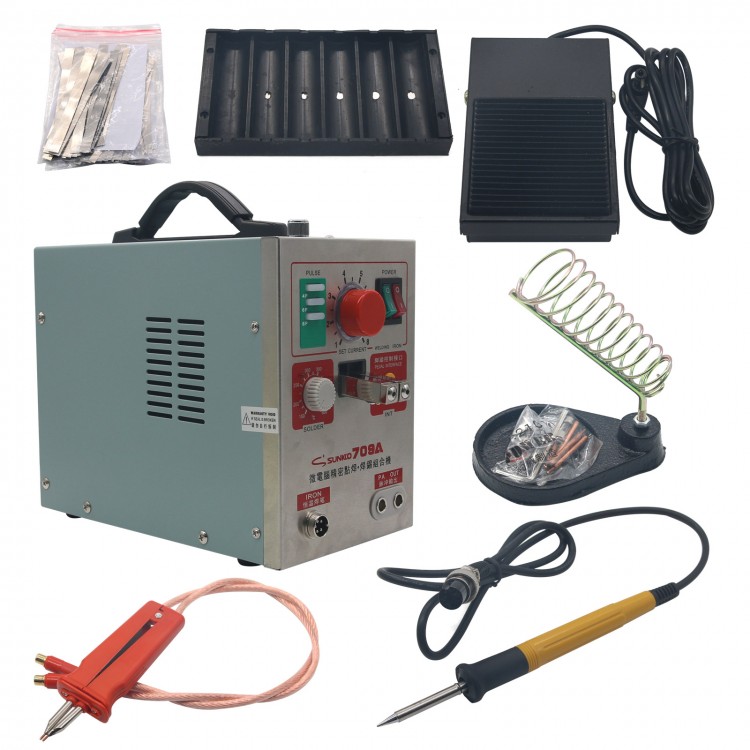

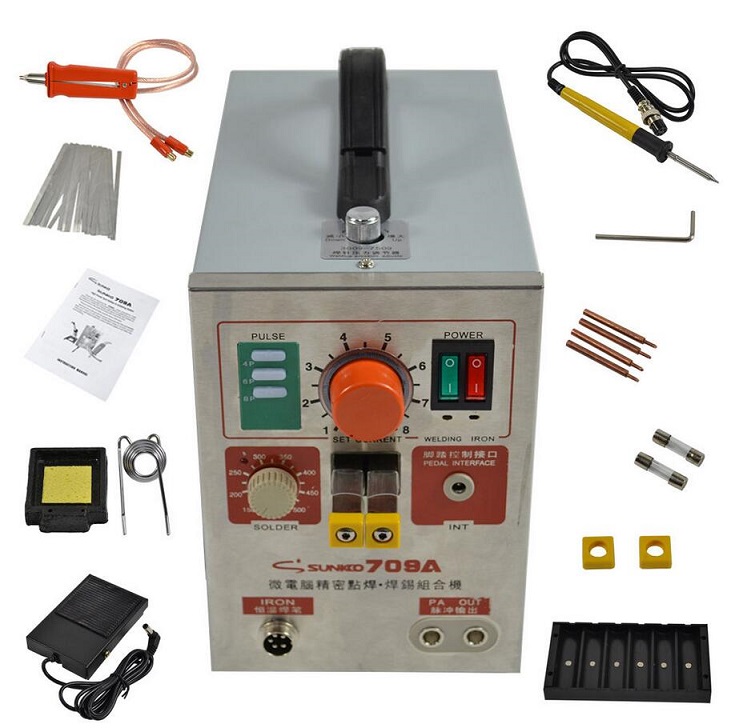

- 1 x Spot Welder Soldering Iron Staion Battery Welding Machine

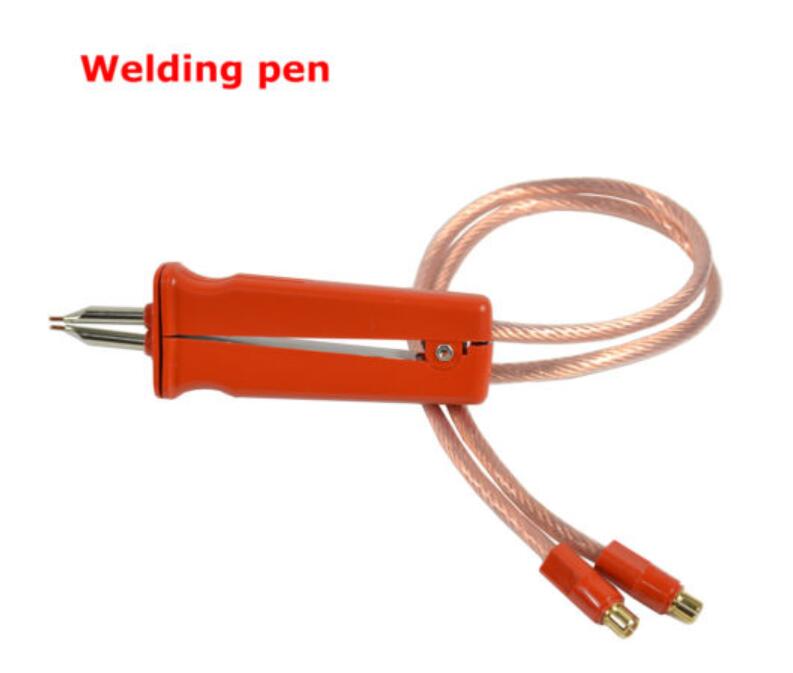

- 1 x Welding pen

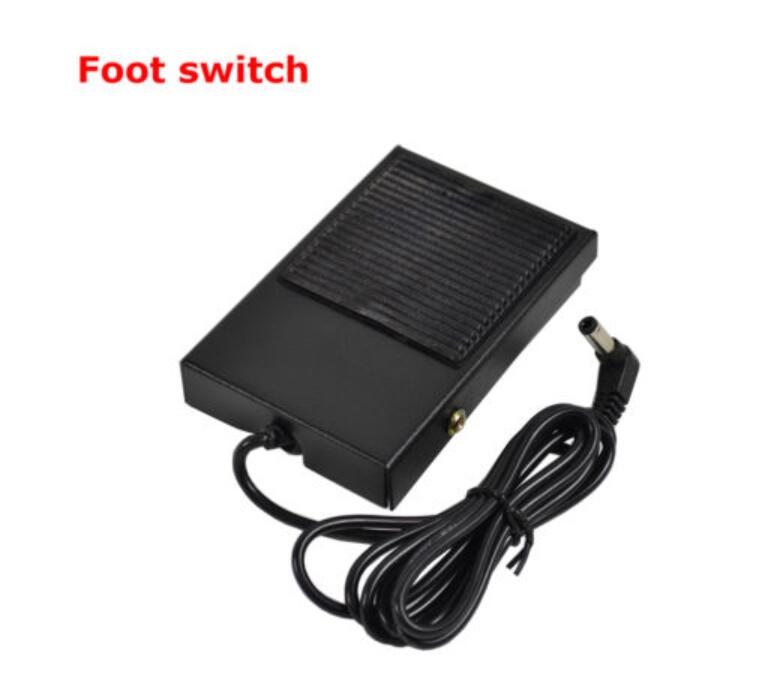

- 1 x Foot switch

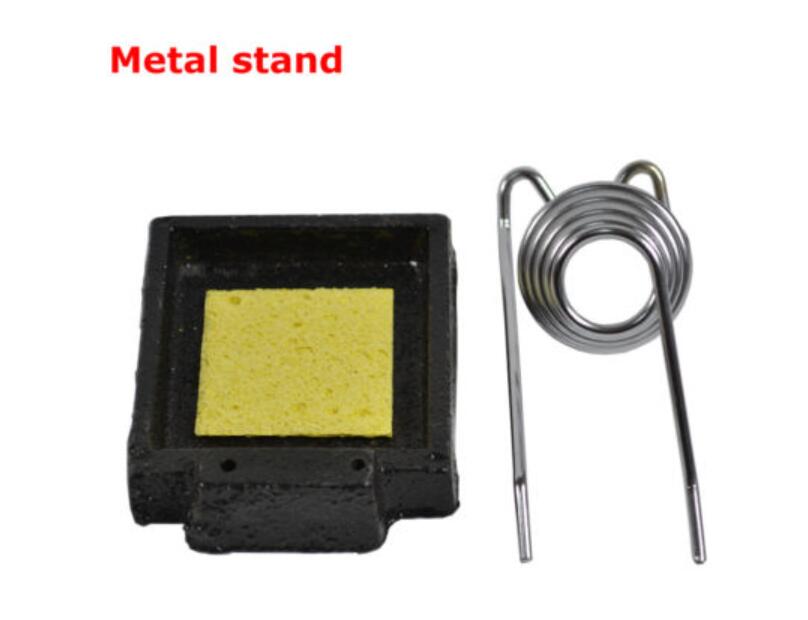

- 1 x Metal stand
- 1 x English user manual

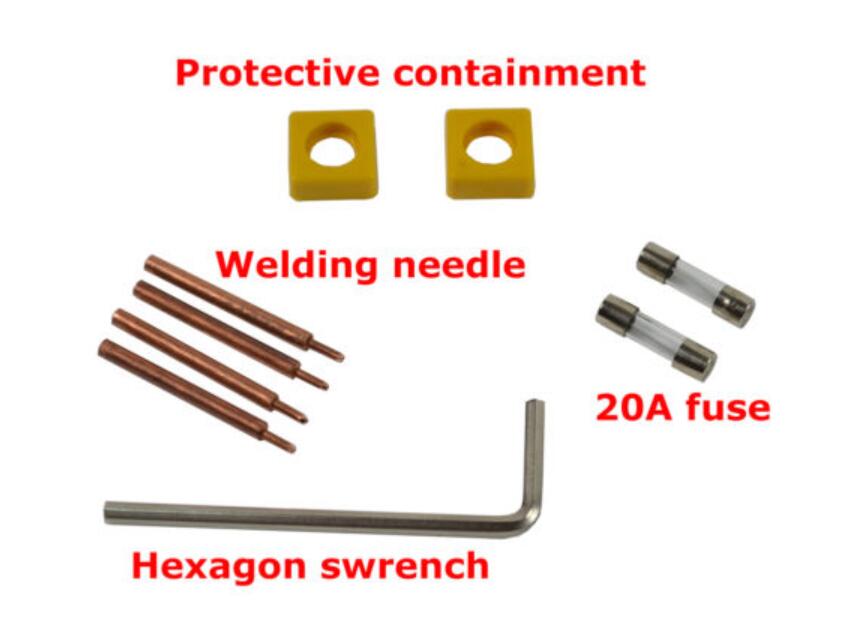

- 2 x Protective containment
- 4 x Welding needle
- 2 x 20A Fuse
- 1 x Hexagon swrench

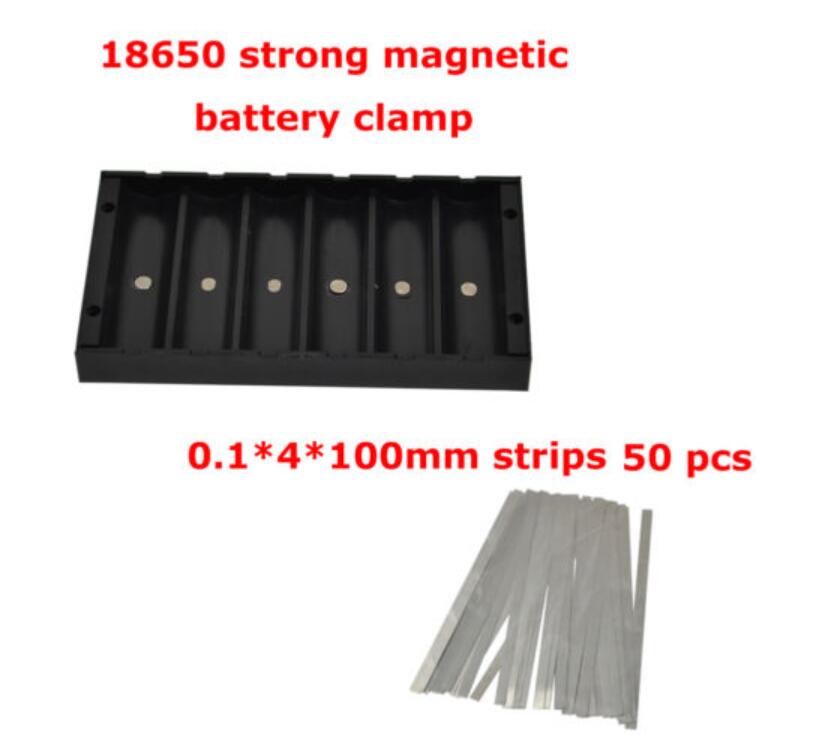

- 1 x 18650 Strong magnetic battery clamp
- 50 x 0.1x4x100mm Strips
