2 In 2 Out Audio Source Signal Selector Switcher Output Volume Adjustment RCA Interface B501

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.43
  • Price in reward points: 184 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.06 $17.69 $17.14 $16.40 Contact US
Quantity:

2 In 2 Out Audio Source Signal Selector Switcher Output Volume Adjustment RCA Interface B501

Specification:
Power supply: no power supply required, plug and play
Material: all metal case design
Input and output impedance: 10 KΩ-50 KΩ
Frequency response: 20-20 kHz
Distortion: < 0.002%
Insertion loss: <0.01dB
Signal gain: 0dB
SNR S/N: >98dB
Input interface: standard RCA interface
Output interface: standard RCA interface
Input channels: 2 stereo switching input channels
Output channels: 2 stereo switching output channels
Control switch: 2 gears accurate selection, manual switch
Net weight: 0.14kg
Gross weight after packaging: 0.16kg

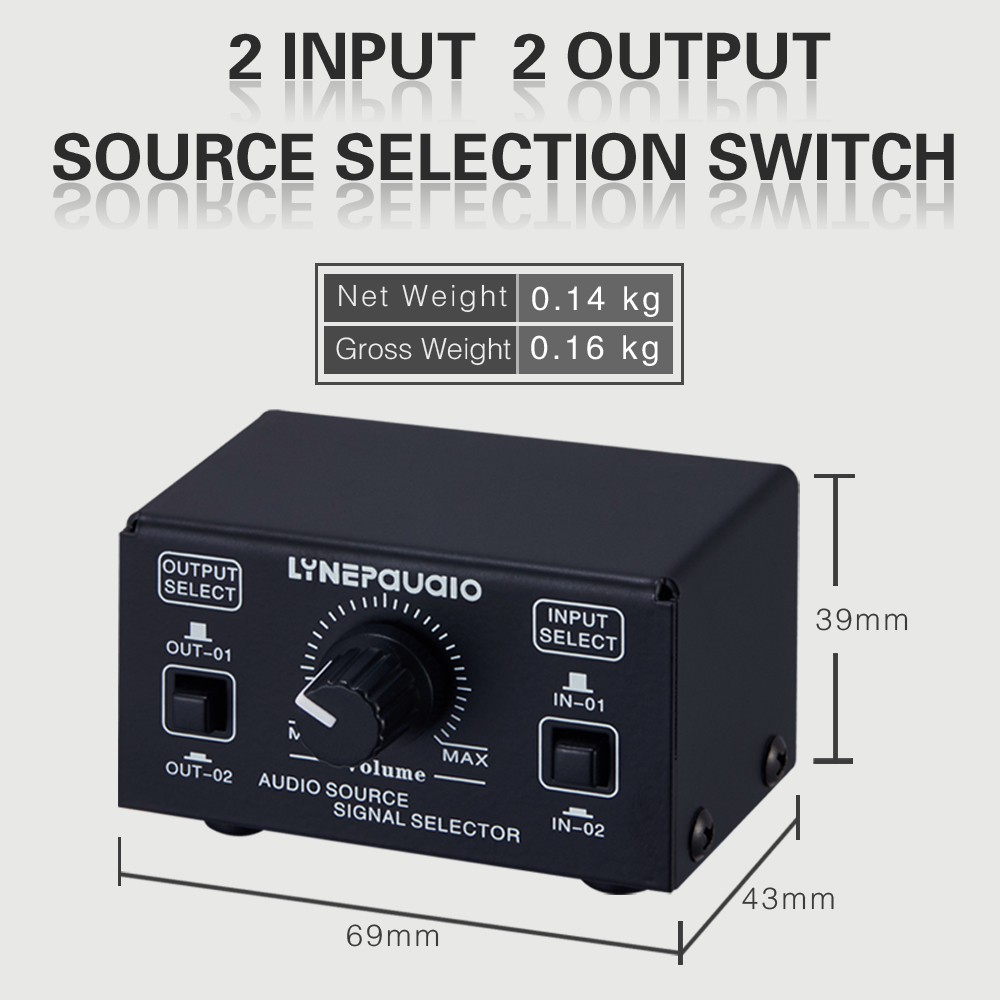

Product size: length 69*width 43*height 39mm
Package size: length 83*width 73*height 51mm

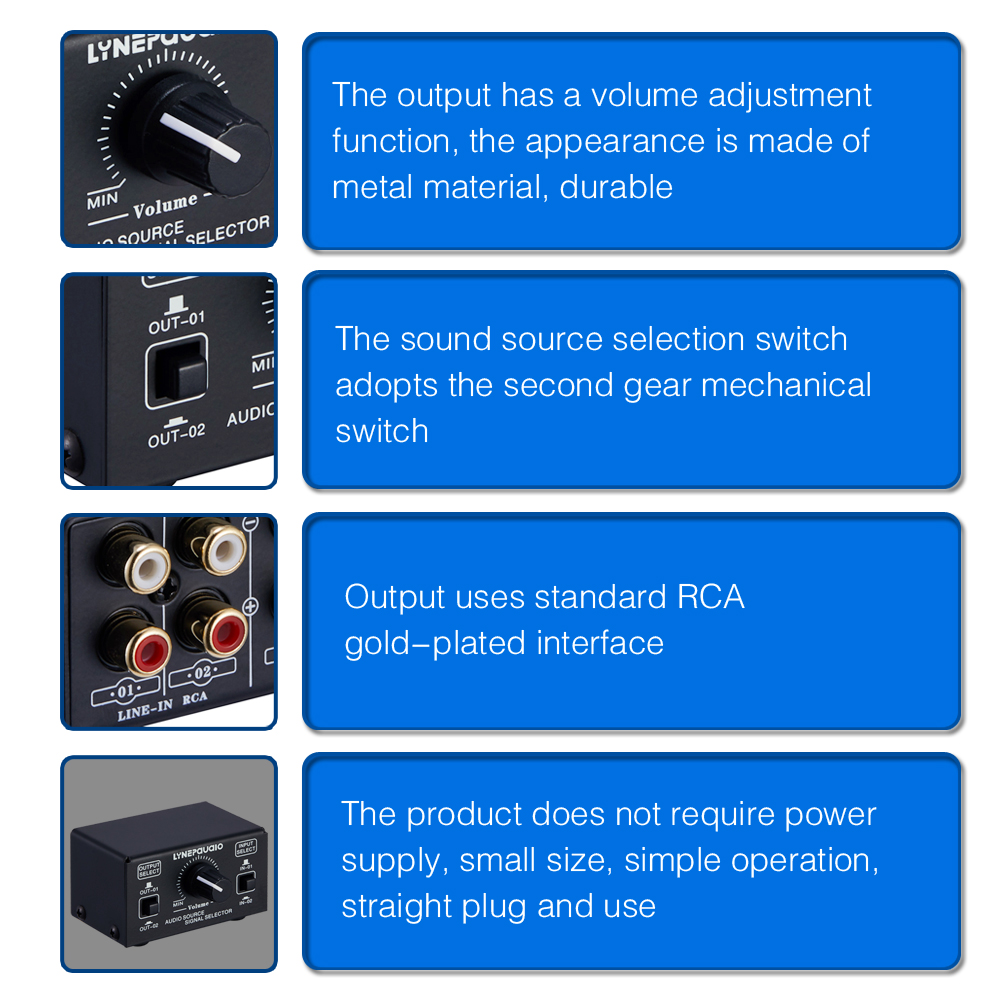

Features:

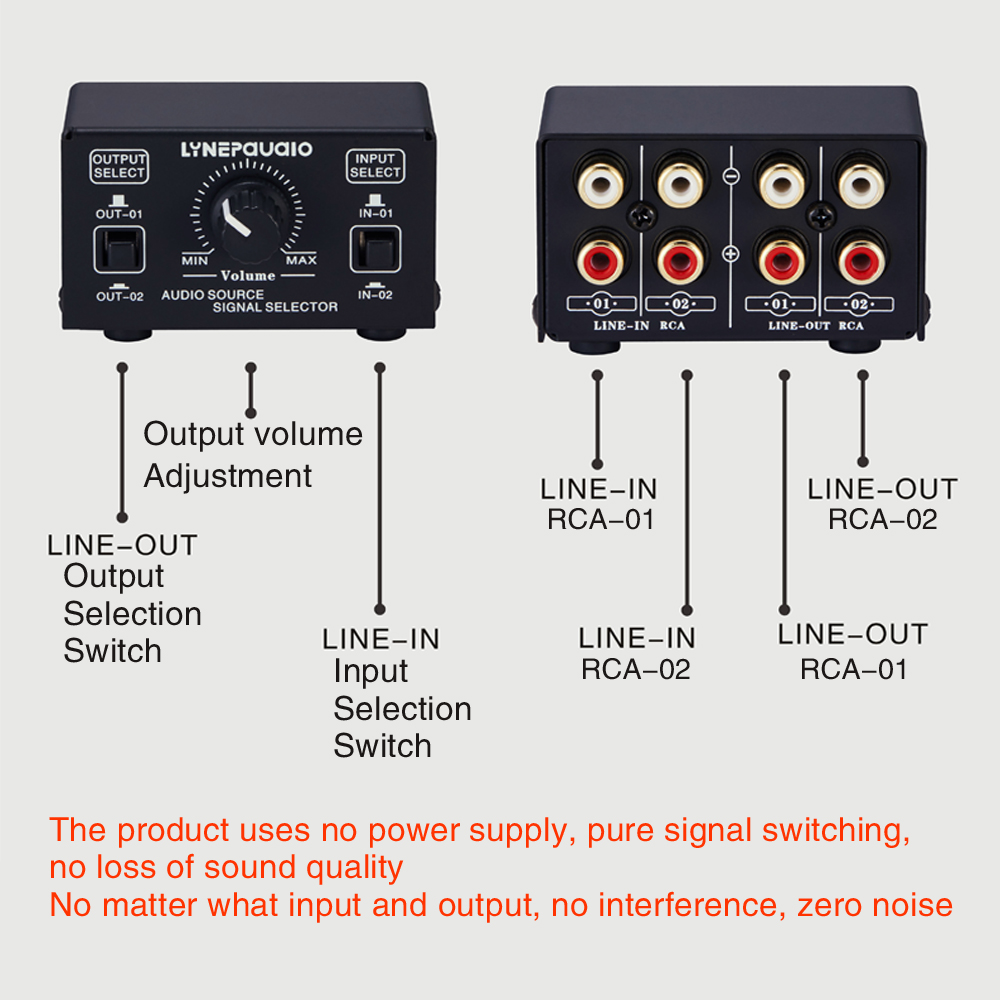

1. No need for power supply design, plug and play, lossless switching transmission of input and output signals.
2. This product is mainly used to select a common output device for switching various stereo signal input. If there are two stereo signal sources (such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, record player), the device needs to output to the power amplifier or active speaker.
3. Two sets of stereo source switchers solve the complex line plugging operation. As long as the required input device signal source is uniformly connected to the switcher, it can be easily selected.

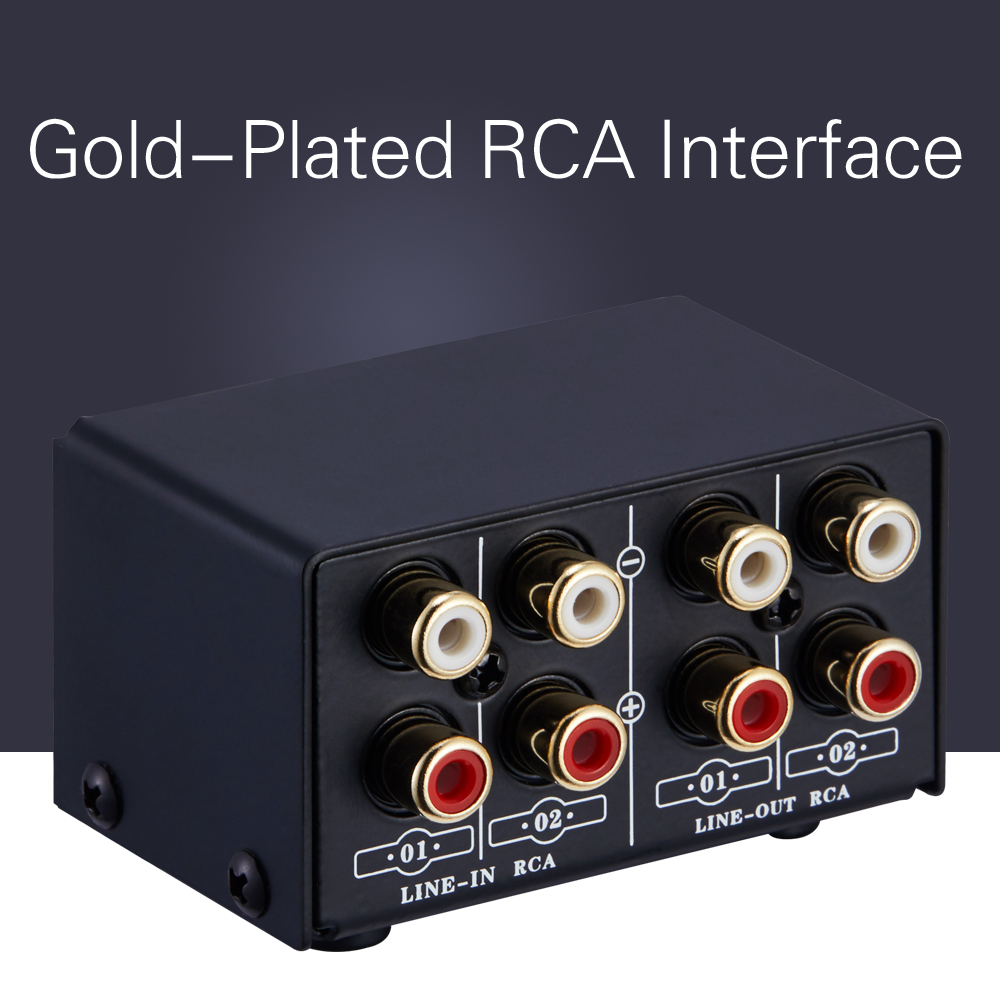

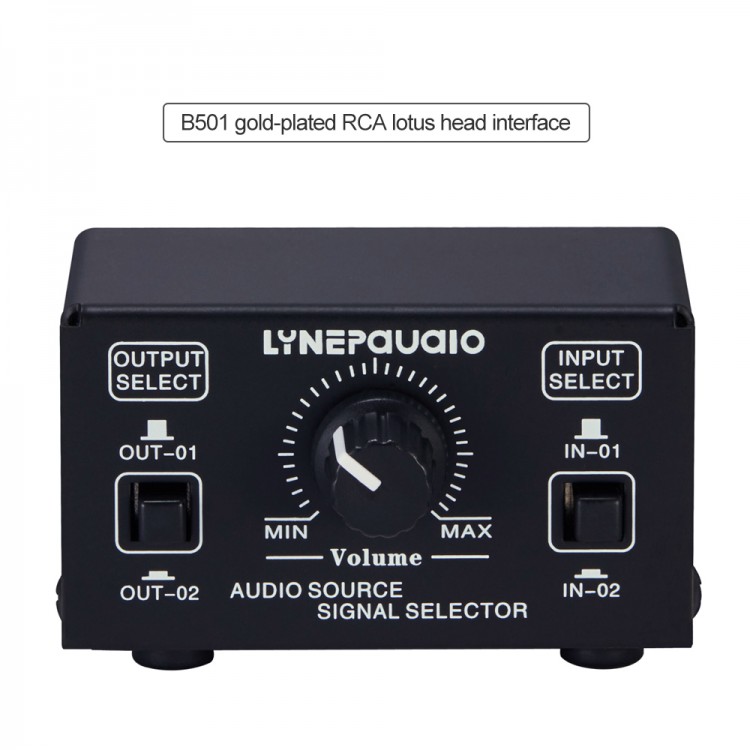

4. Standard RCA interface design for input and output, and the switch is designed with manual push-button switch of precise 2 positions.
5. Two sets of stereo switching input and two sets of stereo switching output. Output level volume with precise adjustment function, easy to operate and use.

Package List:
1 x Signal Selector
