| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $50.40 | $49.37 | $47.83 | $45.77 | Contact US |

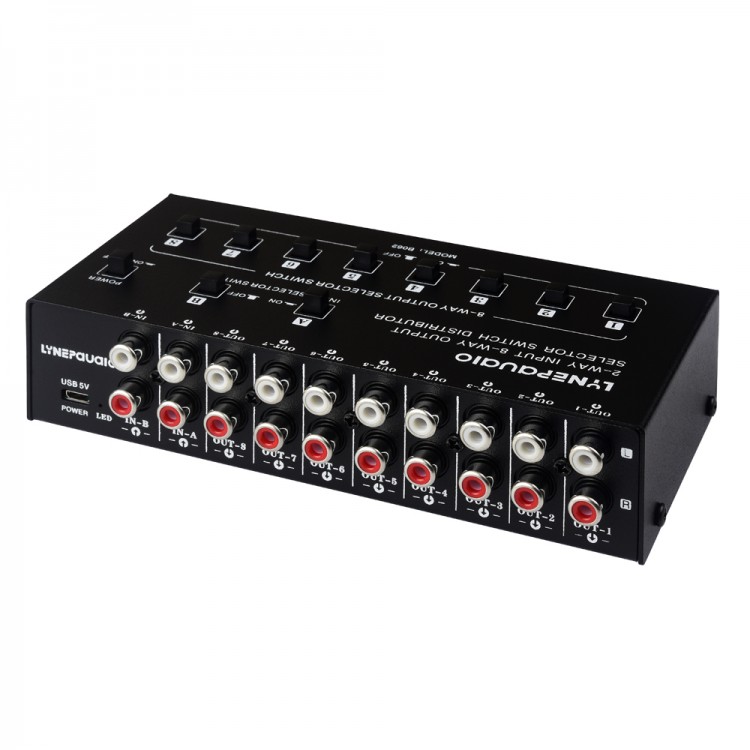

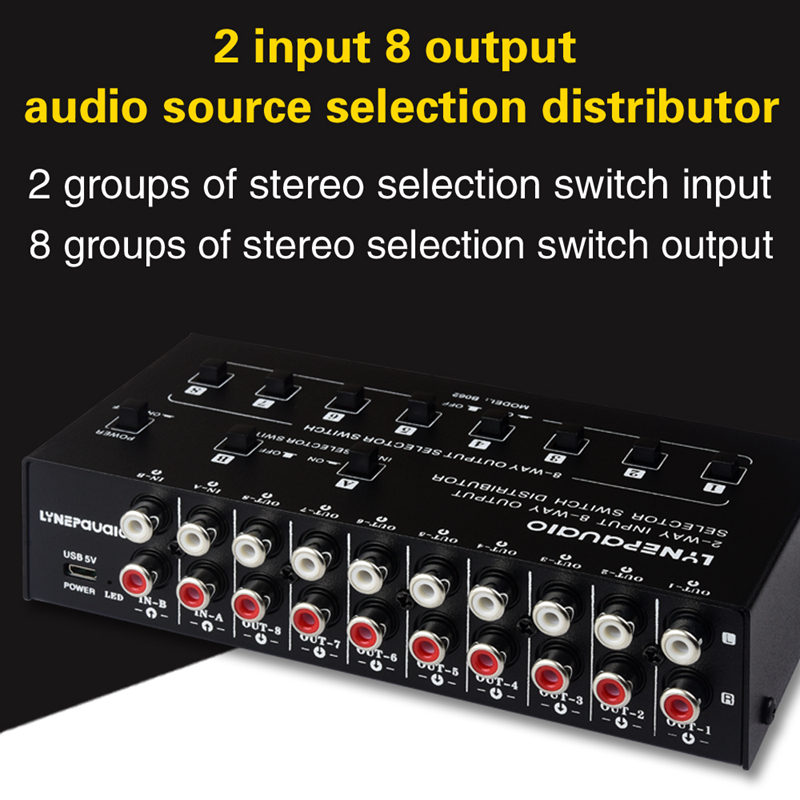

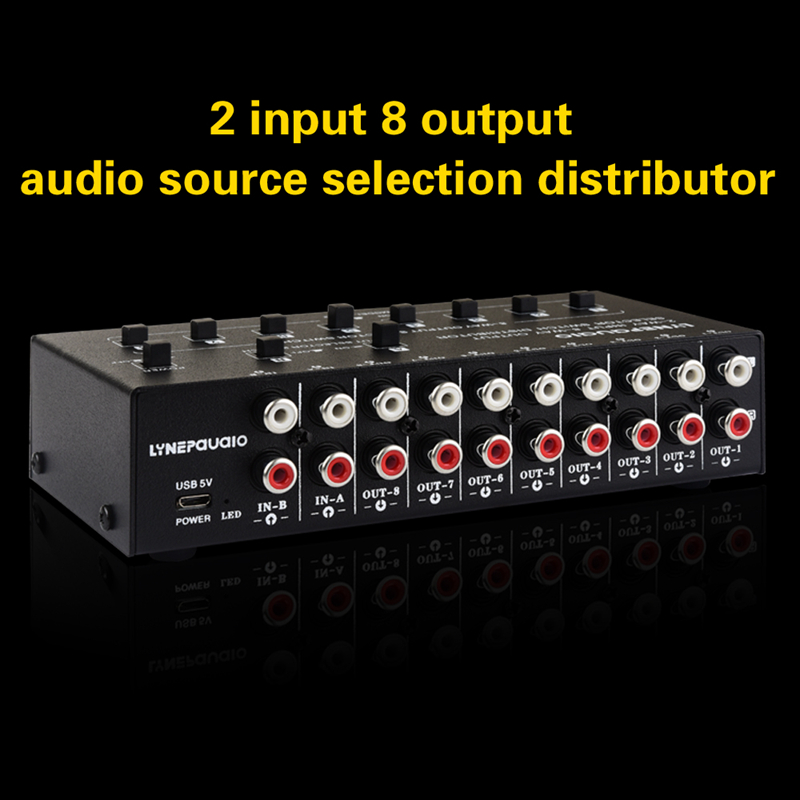

B062 Audio Switcher Audio Selector 2-Way Input 8-Way Output Supporting 2 Groups of Mixing Input
Features:

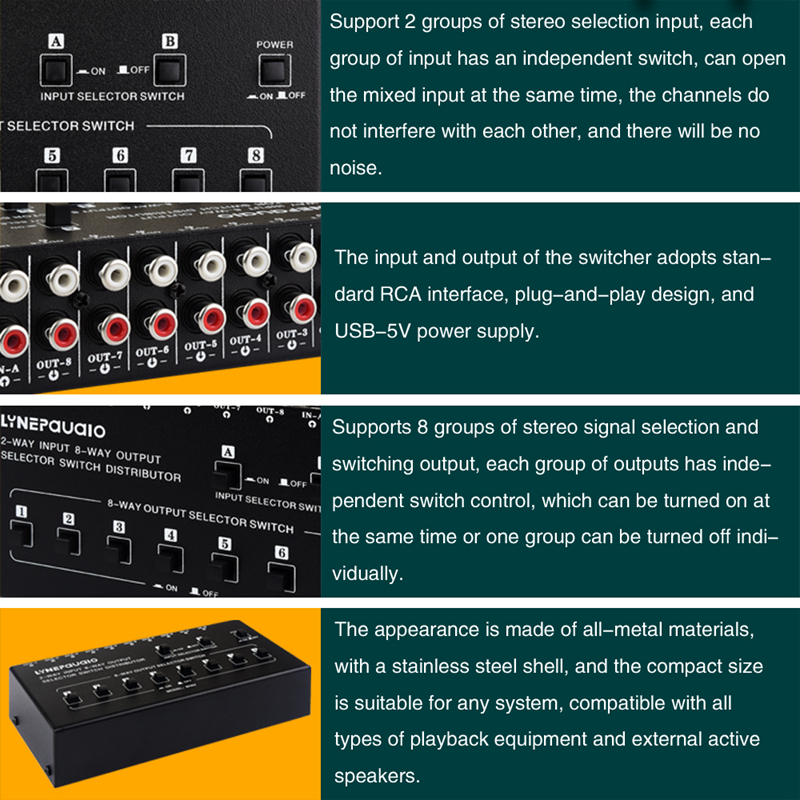

- 8 sets stereophonic output has independent switch, able to start at the same time, also able to be closed independently, start at the same time no consumption at the signal source tone quality and volume.
- 2 sets input able to start at the same time and mix together to input, also able to close one set independently,
- Able to solve the problem that able to distribute output 8 sets stereophonic after 1 set or 2 sets stereophonic mix input, output independent switch control
- Simple installation: input and output, able to be used once inserted, convenient to install, input and output signal no consumption, then can enjoy different hearing experience
Product Parameters:
- Material: metal
- Interface: RCA interface
- Power supply: USB 5V supply power
- Input and output impedance: 10KΩ-50KΩ
- Frequency responding: 20-20kHz
- Distortion: < 0.002%
- Output consumption: < 0.01dB
- Signal gain: 15dB
- SNR: > 98dB

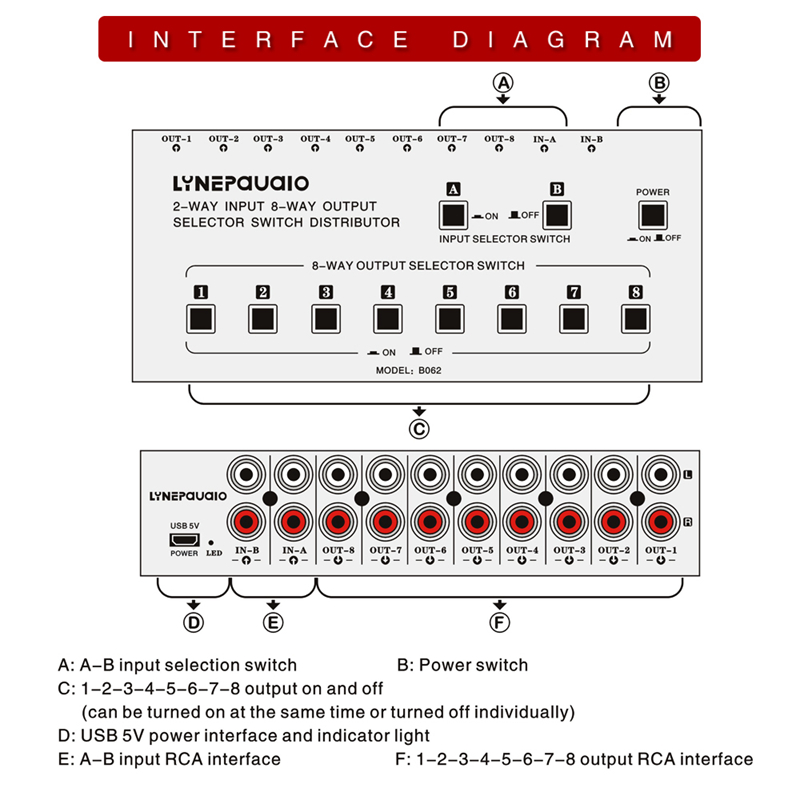

- Input and output interface: standard RCA interface

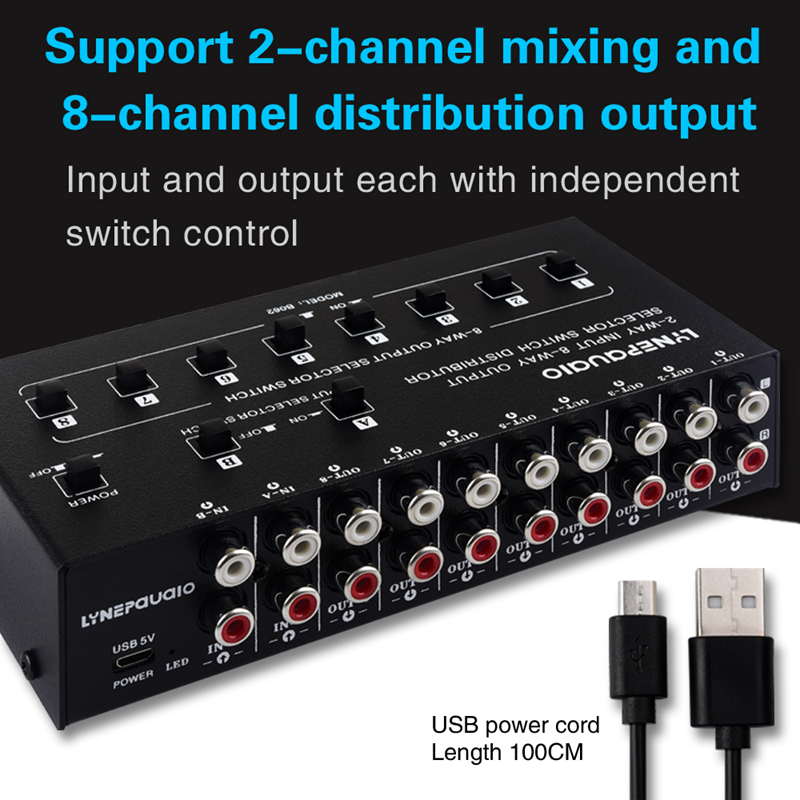

- Input passageway quantity: 2 sets stereophonic shift input (2 sets input able to start at the same time and mix together to input, also able to close one set independently)
- Output passageway quantity: 8 sets stereophonic shift input (able to start at the same time and close independently)

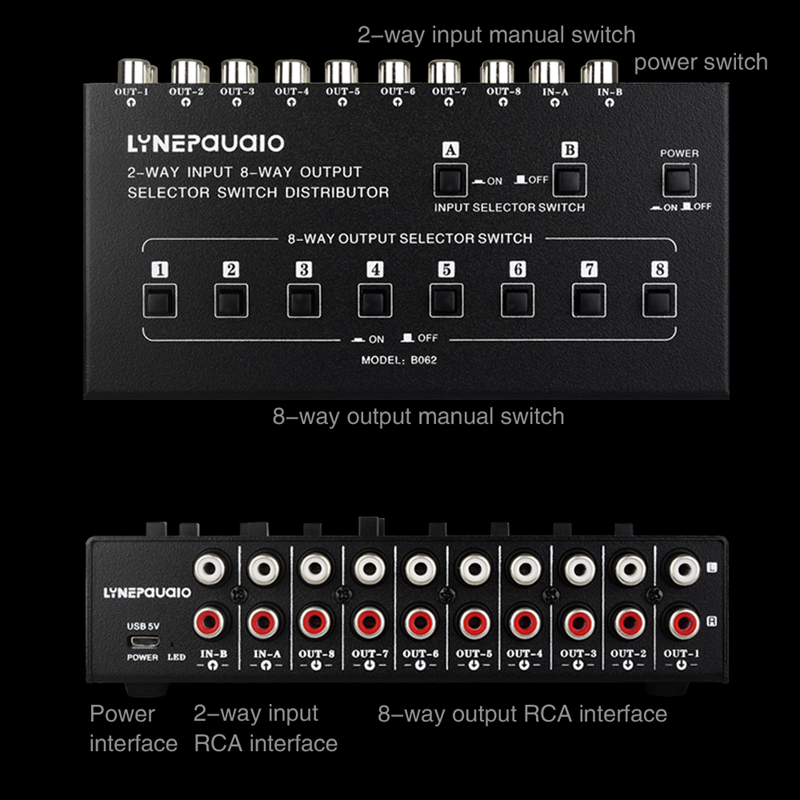

- Control switch: input and output adopt self lock switch, accurately select manually shift
- Input shift passageway: 2 passageways
- Output shift passageway: 8 passageways
- Net weight: 0.45 kg/1 lb

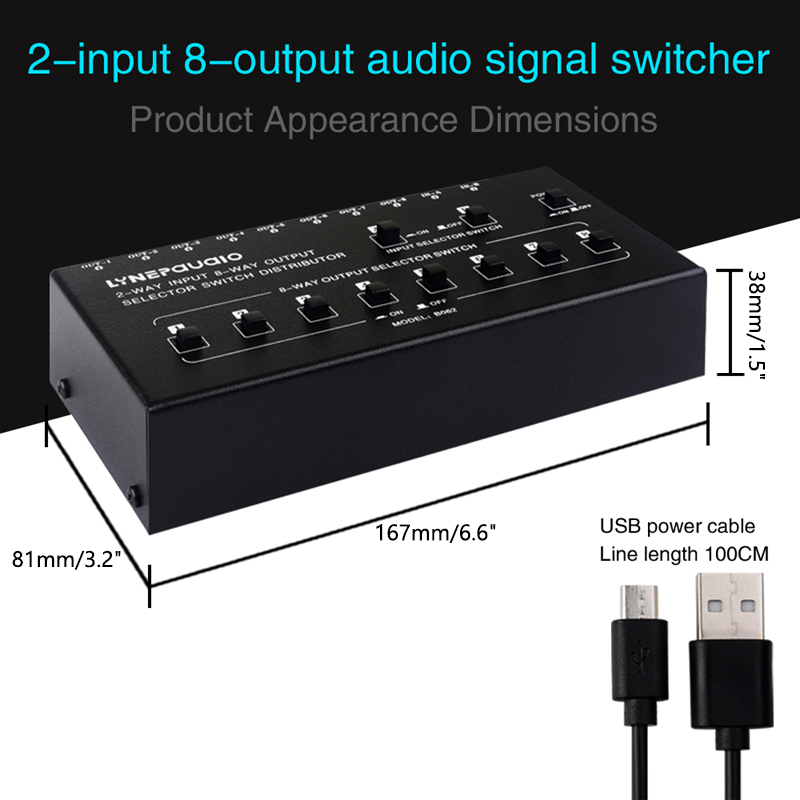

- Product size: 167 x 81 x 38mm/6.6 x 3.2 x 1.5" (LxWxH)
Package Included:
- 1 x Audio Switcher
- 1 x USB Power Cord (100cm/39.4")
