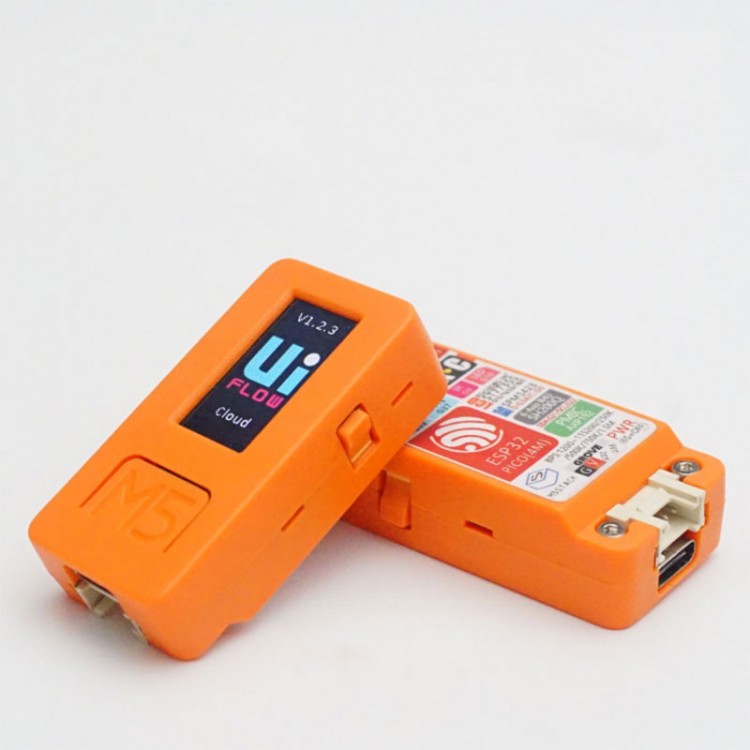

2019 M5StickC ESP32 PICO Mini IoT Development Board Finger Computer 0.96" Color Screen + USB Cable
Features:
- M5StickC is a ESP32 development board with 0.96-inch TFT color screen (80*160 resolution), red LED, button, microphone, IR transmitter, 6-axis IMU (SH200Q).
- The ESP32 module ESP32-Pico in M5StickC also has a built-in 4MB flash.
- If the M5StickC is equipped with watch-base and watch-belt, you can wear it on your wrist.
- GROVE interface supports for UIFlow programming & Arduino programming
Note:
- Power on: Press the reset button for at least 2 seconds
- Shutdown: Press the reset button for at least 6 seconds
- The baud rate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K
Data Sheet:
ESP32-PICO
https://github.com/m5stack/M5-Schematic/blob/master/Core/esp32-pico-d4_datasheet_cn.pdf
ST7735S
https://github.com/m5stack/M5-Schematic/blob/master/Core/ST7735S_v1.1.pdf
SH200Q
https://github.com/m5stack/M5-Schematic/blob/master/Core/SH200Q.pdf
AXP192
https://github.com/m5stack/M5-Schematic/blob/master/Core/AXP192%20Datasheet%20v1.13_cn.pdf
SPM1423
https://pdf1.alldatasheet.com/datasheet-pdf/view/546596/KNOWLES/SPM1423HM4H-B.html
Test Routine:
Arduino
https://github.com/m5stack/M5StickC/tree/master/examples/Basics/FactoryTest
Package Included:
- 1 x M5StickC IoT Development Board
- 1 x USB Cable

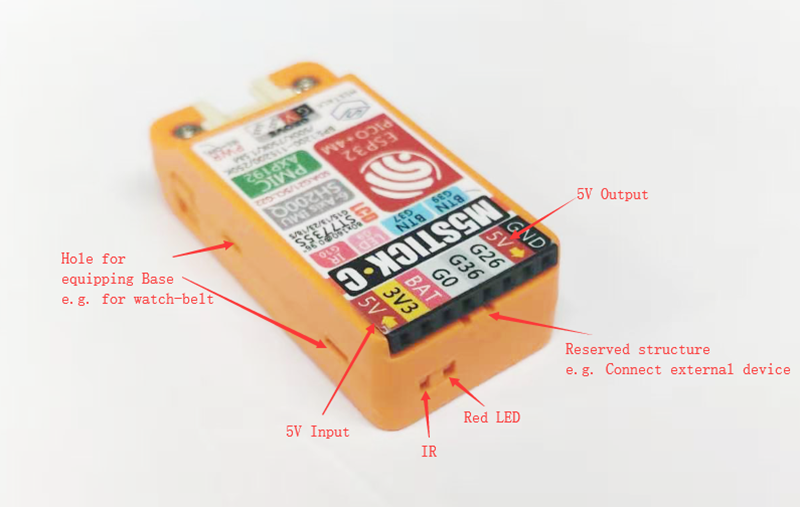

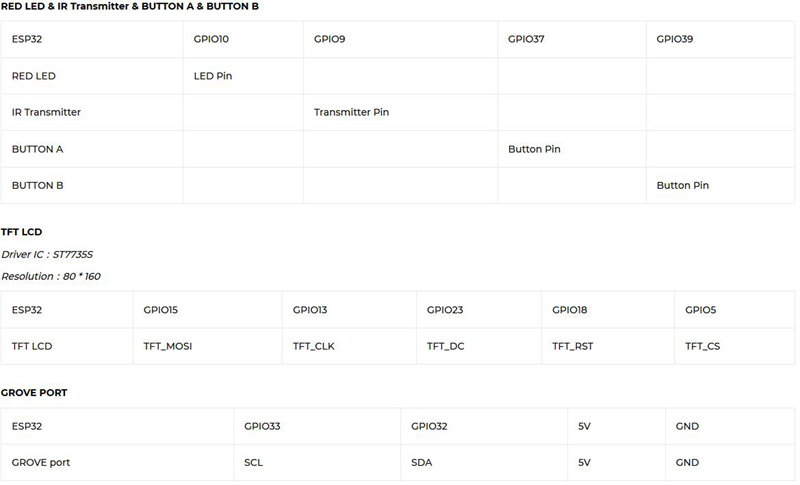

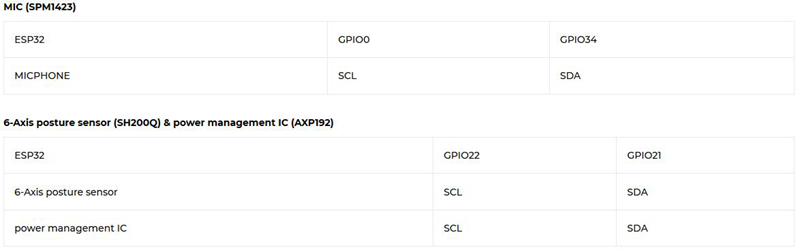

IO Expansion Ports:
