M395 Bluetooth Wireless USB HART Modem (APP for Android + PC Software) Replaces Handheld Communicator for TREX & 475

M395 Bluetooth Wireless USB HART Modem (APP for Android + PC Software) Replaces Handheld Communicator for TREX & 475

Advantages:
- Phone APP for Android + hardware: Support for Android APP debugging. Adapter has more Bluetooth wireless version (Bluetooth distance is farther, power consumption is less than one-tenth of WIFI).
- Supports communication of all HART instruments and valves. With data depository (DD) and support HART7. Easy debugging of transmitters and valves, and it can replace imported 475.
- Powerful software compatibility: Fully compatible with debugging software for Emerson, E+H, Yokogawa, Siemens, Krohne, etc.
- Remote debugging: Similar to Sunlogin remote control software, remote debugging of transmitters in the field without leaving home is enabled.
- Proven hardware and software design: Reliable and safe 24V output design and no damage caused by wiring errors. Unique HART signal enhancement technology maintains communication even when the loop impedance is well below 250Ω. Professional interference filtering technology effectively improves the signal-to-noise ratio and copes with complex on-site environments.

Specification:
- Execution standard: BG/T 29910.1~6-2013
- Wireless communication: Bluetooth 4.0
- Output power supply: output voltage of 21.6V, maximum current of 45mA
- Battery capacity: 2000mAH polymer lithium battery
- Duration: 8 hours for 24V output 4mA; 4 hours for 24V output 21mA; 16 hours for 24V off
- Charging time: 240mins charging at 1A
- Interface protection: IEC 61000-4-2, L4 (15KV air discharging); HART interface 1.5KV isolation; surge: IEC 61000-4-4, L3 (2KV/1KA)
- Product size: 92 x 70 x 24mm
- Main unit net weight: 150g
- Working temperature: -20℃ to 50℃
- Environment humidity: 0% - 95%, non-condensing

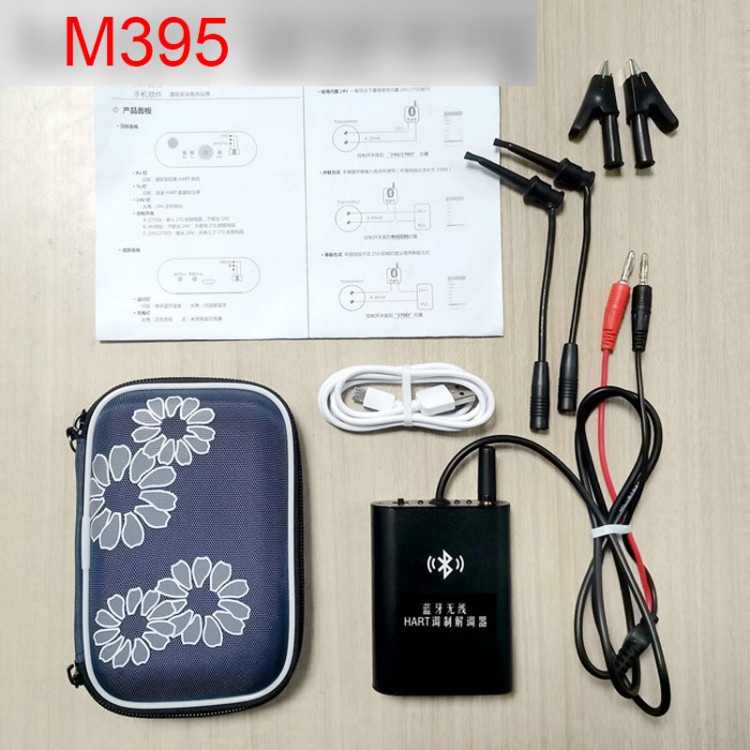

Package Included:
- 1 x HART Modem
- 1 x Pair of Alligator Clips
- 1 x Charging Cable
- 1 x User Manual
- 1 x Tool Bag

Note:
- HART hooks and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

Download:
- For Android app: http://hart.woyatech.com. Open it with your mobile browser. (Please not download it from APP store for Android)
- Wiring instructions: http://doc.woyatech.com/modem/cn/00_M395_cn.pdf
- PC driver: http://doc.woyatech.com/modem/cn/01_drivers/modem_drivers.exe
- HART Tools: http://doc.woyatech.com/modem/cn/02_hart_tools/02_hart_software.zip
- More Software: http://doc.woyatech.com/modem/cn/

Attention:
- Please contact us if you need software such as for Rosemount 3051 SMV, E+H Fieldcare, Yokogawa Fieldmate, Krohne Pactware, Siemens PDM, Emerson pro-link and 5408 instrument inspector.
- As for Fisher locators, please make sure that you can handle self-tuning and parameter settings. If you have any questions, please contact customer service. Thank you!
