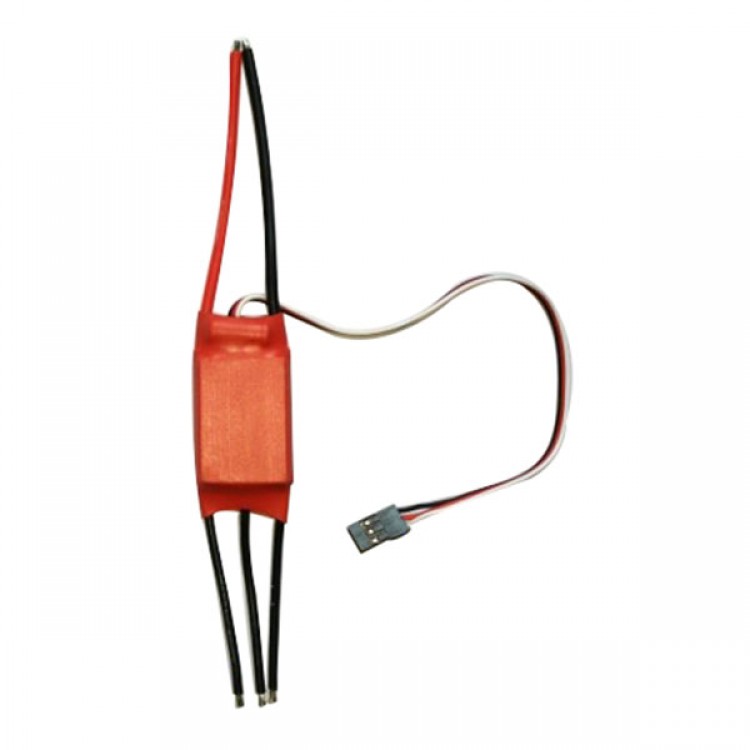

20AMP 20A SimonK Firmware Brushless ESC w/ 3A 5V UBEC Quad Multi Copter
Features:
- High quality 20A Brushless ESC.
- This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use.
- Highest efficiency 100% N-FET design.
- Highest accuracy with Crystal Oscillator (temperature won't affect the PWM operating range like other cheap ESC's).
- No low voltage cutoff, because any cutoff in a multirotor = crash.
- No over temp cutoff, because any cutoff in a multirotor = crash.
- Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
- 16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
- Super simple, foolproof operation! Nothing to program other than the throttle range.
Specifications:
- Max cont. current: 20A
- Peak current: 30A (10s)
- Voltage: 2-3S lipo, 5-8 Nicad
- BEC: 5V/3A
- Color: Red
- Item size: 50 * 25 * 8mm / 2.0 * 1.0 * 0.3in
- Item weight: 24g / 0.8oz
Package List:
- 1 * 20A Brushless ESC
