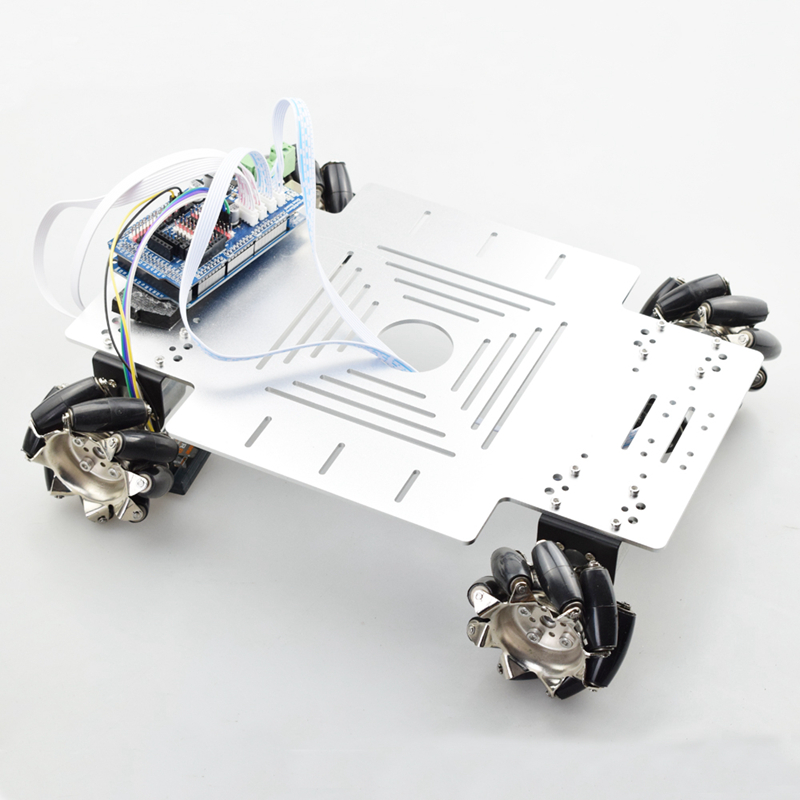

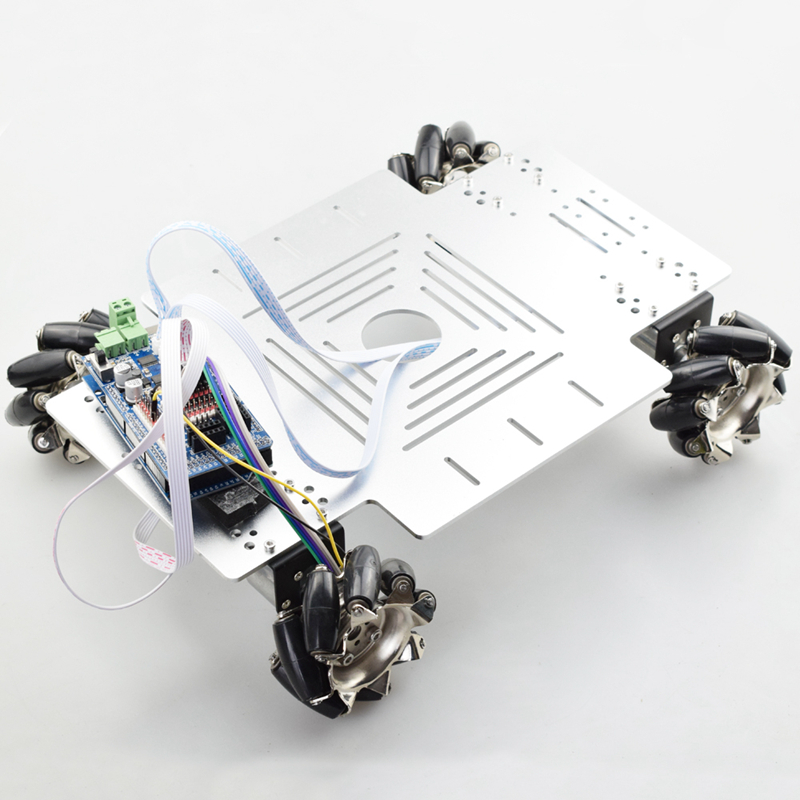

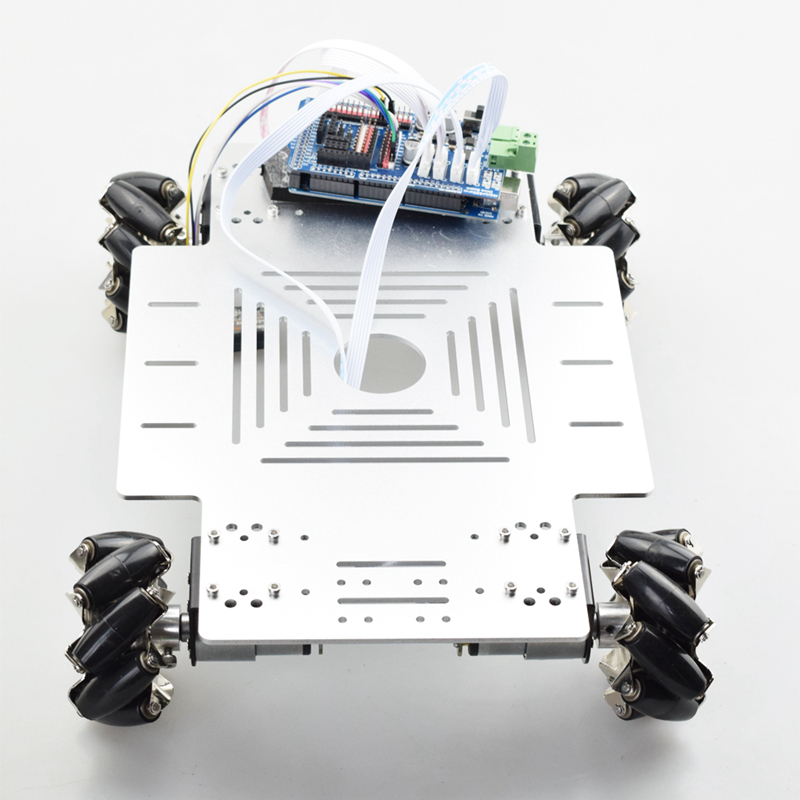

20KG Load RC Robot Car Chassis Mecanum Wheel Robot Platform Unassembled w/ Controller For Arduino
Parameters:
- Size: 320*228*80mm (L*W*H)
- Weight: 2.1kg
- Payload: 20kg
- Motor: 12V 178rpm
- Wheel Diameter: 78mm Steel Mecanum wheel

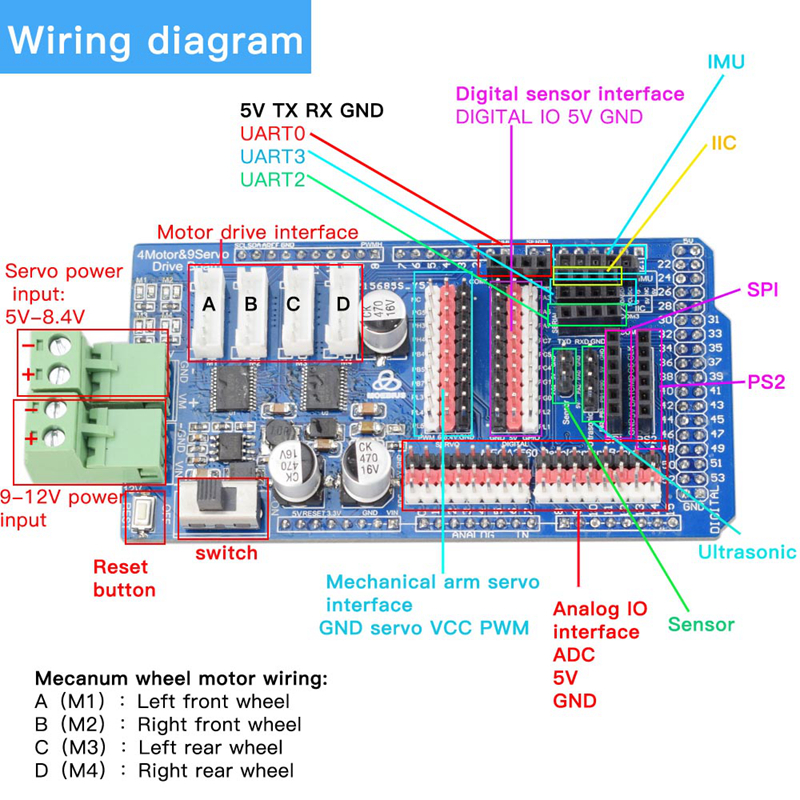

Controller Features:
- Motor driver chip: TB6612

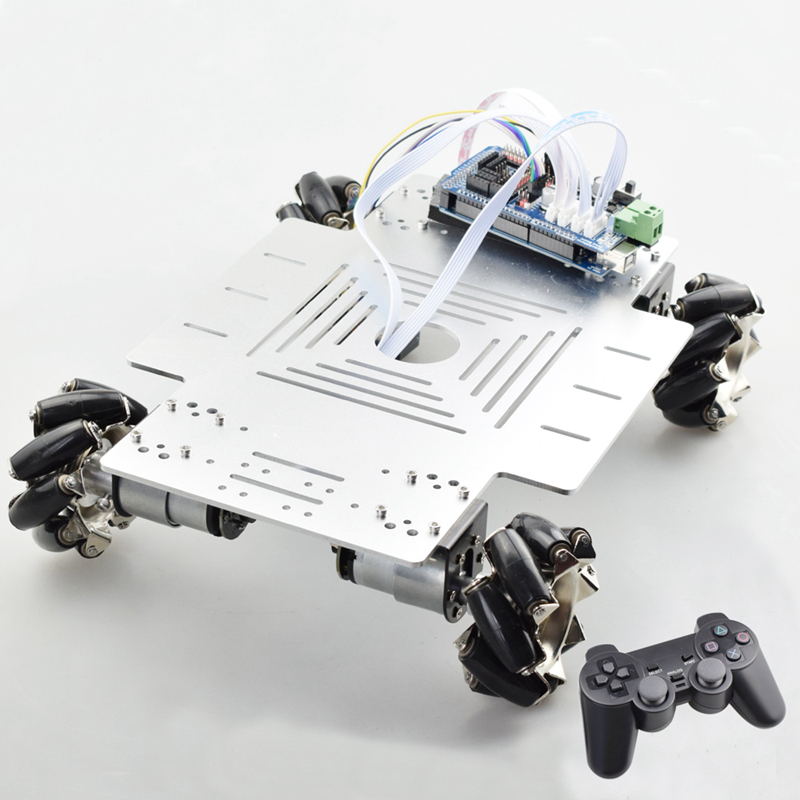

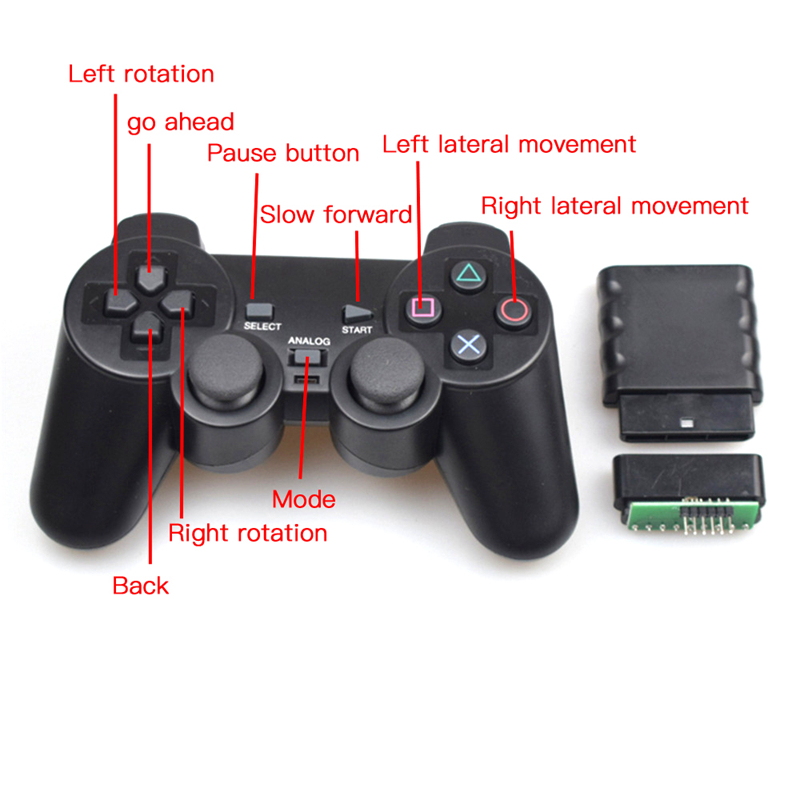

- For PS2 control distance: about 15 meters

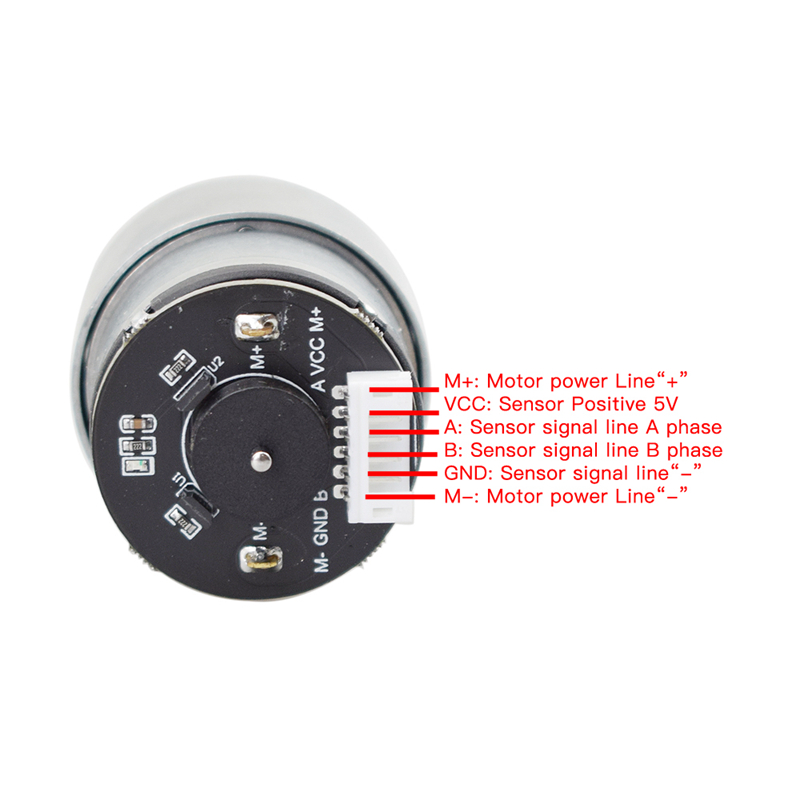

- You can use the encoder of the motor and read the data, can control the speed by Joystick
- Can drive the 2/3/4wd smart robot car, Mecanum wheel robot and robot arm
- Four channel motor drive board, can be used in two- and three-channel robot car
- Reserve WIFI/Bluetooth/for PS2 interface, reserve 9pcs robot arm servos interface
- Provide motor drive source code and for Arduino development study materials
Package Included:
- 1 x Set of Robot Chassis
Note:
- The product is unassembled. We offer the PDF manual and source code.
