20M-3GHz RF Amplifier LNA Low Noise Amplifier Noise Figure 1.3DB Gain 40DB For GPS Receiver System
Application Scenarios:
1. For Beidou/GPS receiver
2. Receiver system (FM radio receiving, radar receiving, etc.)
3. Electromagnetic compatibility receiving system
4. Software radio receiver
Index Parameters:
1. Power supply: TYPE-C cable
2. Module frequency range: 20M-3GHz
3. Noise figure: NF=1.3dB (refer to the measured curve for different frequencies)
4. Gain: 40DB (refer to the measured curve for different frequencies)
5. Volume: 4.5*3*1.4cm (excluding sizes of protruding SMA); Product weight: 66g (including host + TYPE-C cable)
6. Current: <150mA
7. P1dB=200dBm at 2GHz
8. Output interface: SMA female, input and output impedance: 50 ohms
Package Included:
- 1 x RF Amplifier w/ Aluminum Alloy Shell
- 1 x Type-C Cable

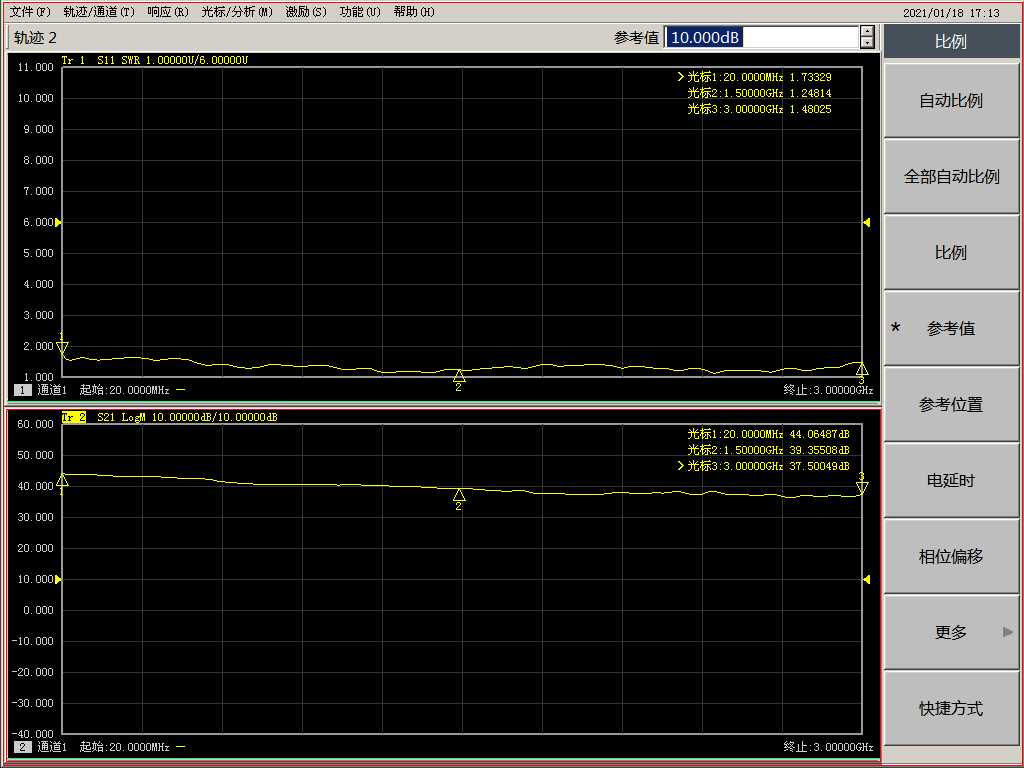

Measured S Parameters:
