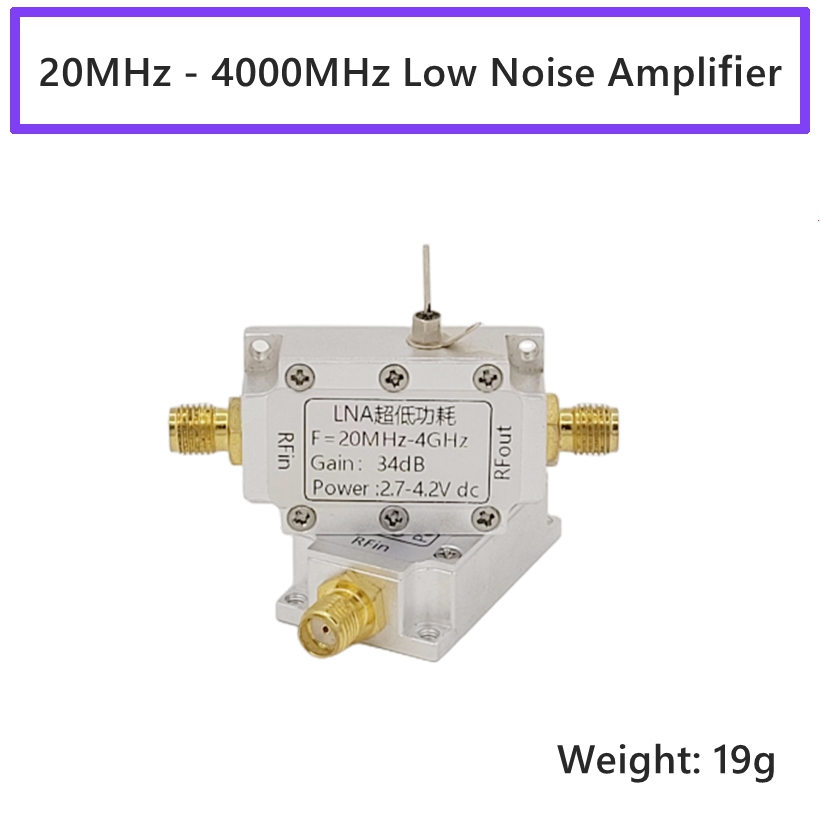

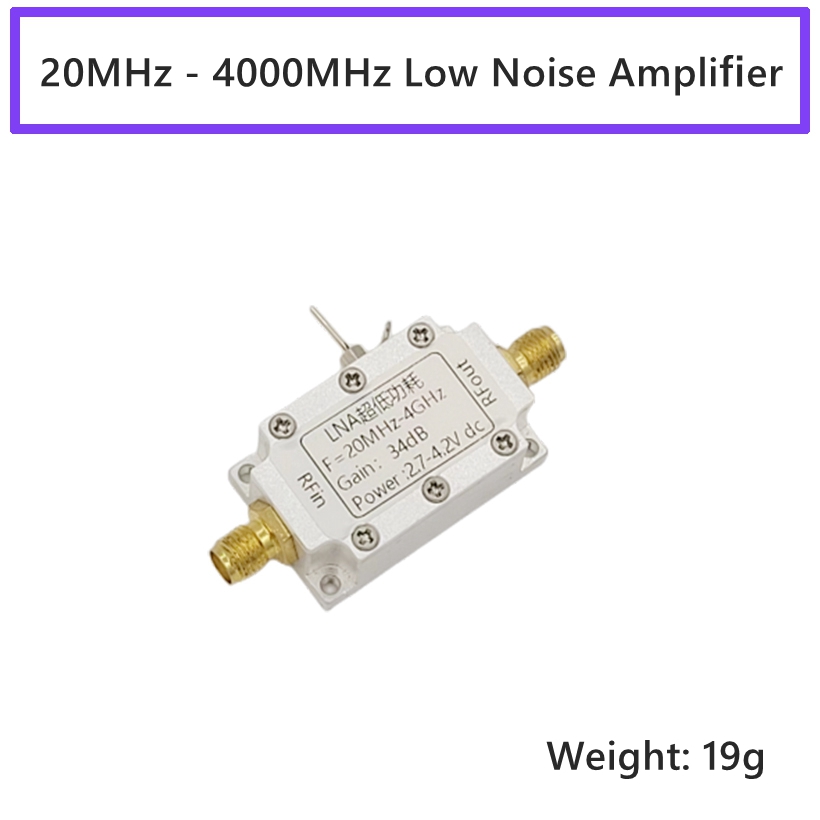

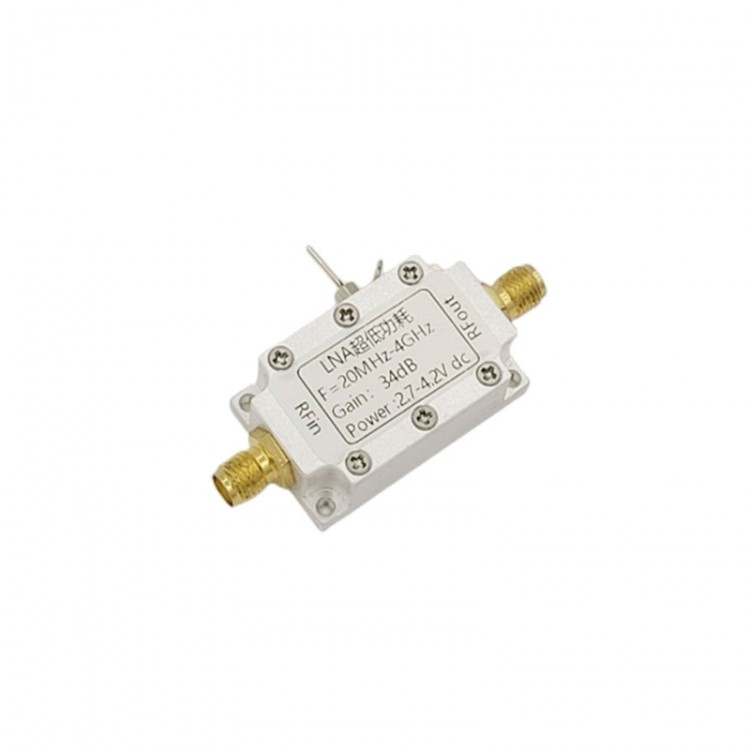

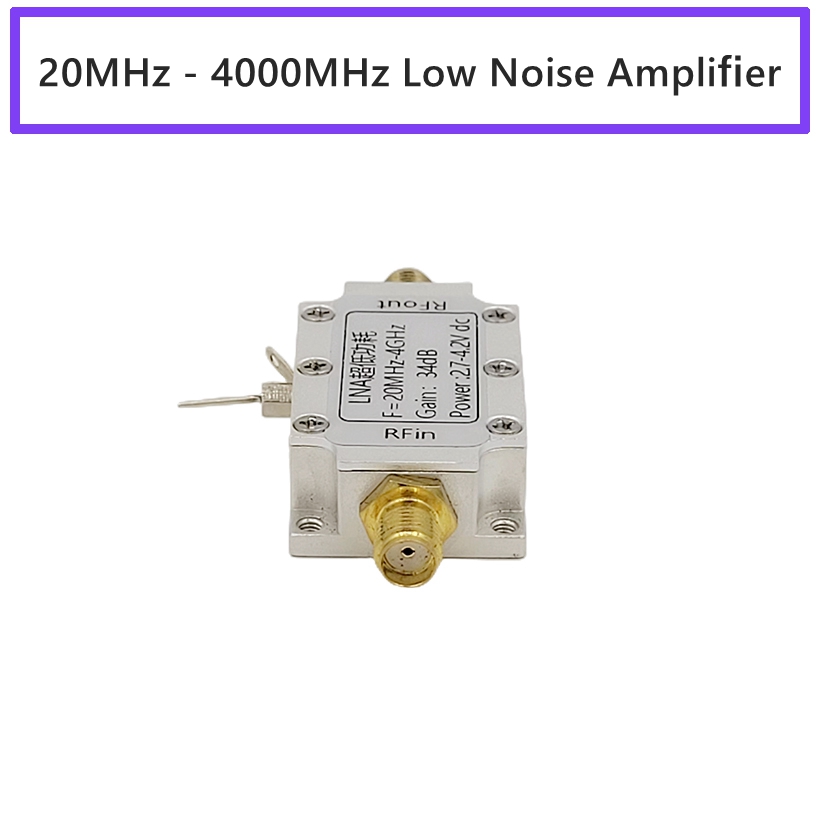

20MHz - 4000MHz LNA Low Noise Amplifier High Gain RF Amplifier Module for Beidou VHF UHF VTX Navigation
Description:
- It is a low-power, high-gain low noise amplifier, which can be used for general frequency band such as VHF, UHF, for Beidou, positioning, navigation, VTX, etc.
Precaution:
- It is recommended to use 3.7V lithium battery for power supply. It can also be powered by solar panels of corresponding voltage.
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.
Specification:
- Bandwidth: 20MHz - 4000MHz
- Power supply: 2.7V - 4.2V/10mA

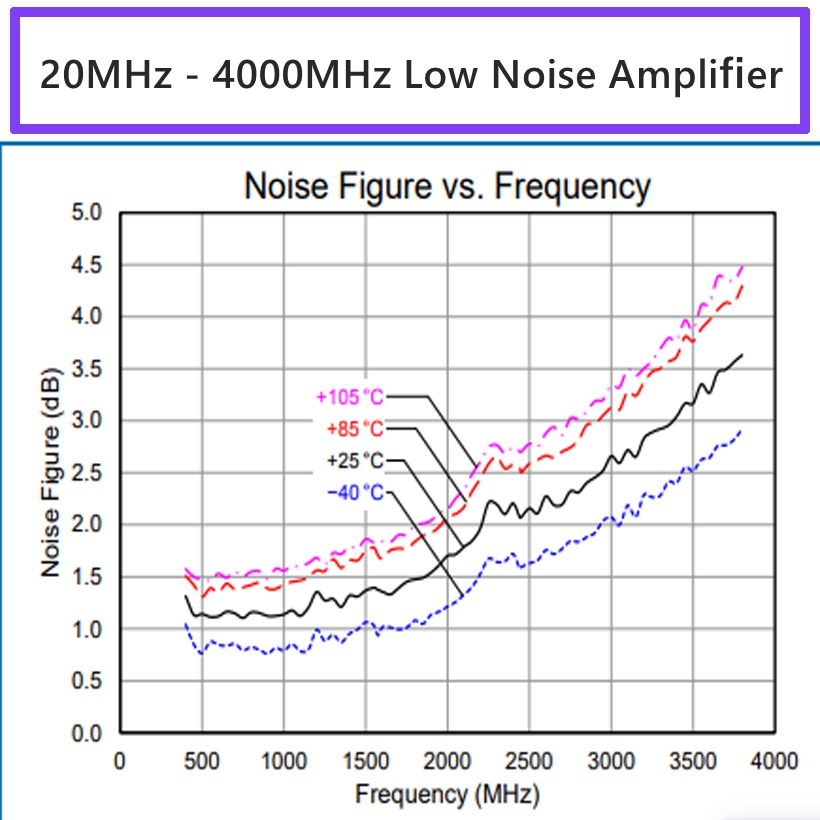

- NF: <1.4dB (typ.)
- Maximum input power: ≤-10dBm
- Maximum output power: 5mW (7dBm)
- Input and output impedance: 50ohm
- Connector type: SMA Female connector

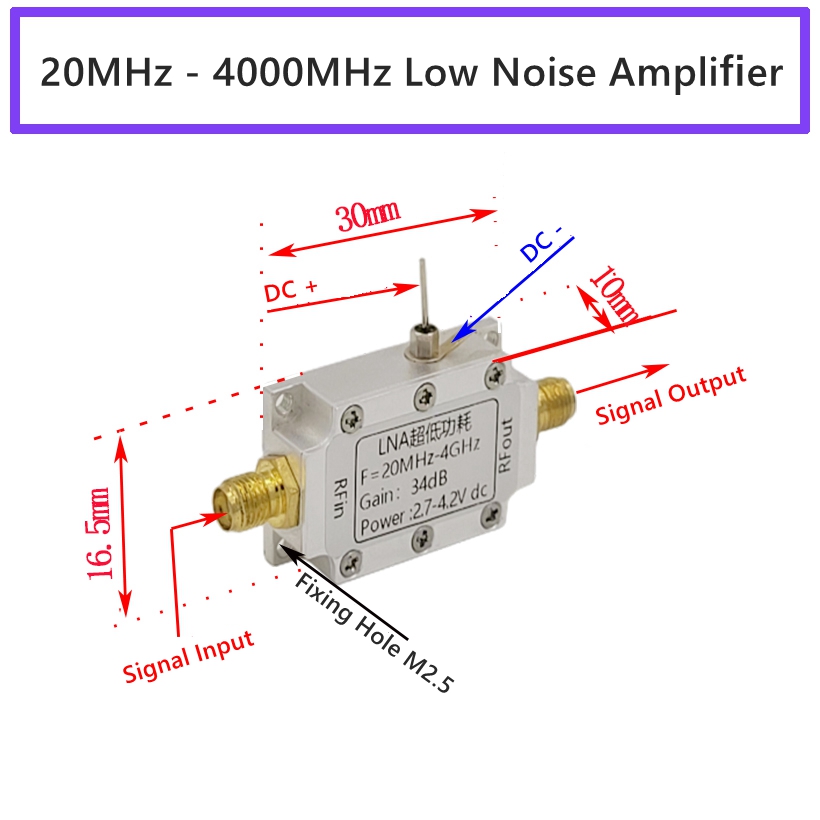

- Size: 33 x 21 x 10.5mm
Instruction:
- RF in: signal input
- RF out: signal output
- GND: DC power supply negative
- DC: DC power supply positive
Package Included:
- 1 x Low Noise Amplifier
Note:
- Battery is not included.
- The maximum power supply voltage should not exceed 4.2V, otherwise it will burn out.
