220V OLED T12 Digital Soldering Iron Station Temperature Controller 72W 150-480 Degree C

220V OLED T12 Digital Soldering Iron Station Temperature Controller 72W 150-480 Degree C

Specifications:
- Working AC voltage: 100-240V
- Temperature setting range: 150-480 degree C, the actual temperature can be 500 degrees
- Sleep Time 1-30 minutes freely adjust
- Built-in power supply: 24V 3A, 72w.
- SIZE:88MM * 40MM * 138MM

Special note:
OLED soldering station on a new heater installed being given issue beeps, it does not matter ,two or three minutes will be ok,like a new heater will have a process of adaptation, If you use the aged or used T12 Tips ,will not have the error and beeps,new heater temperature is within 5 degrees of beating is normal. After beating aging will be within 1 degree

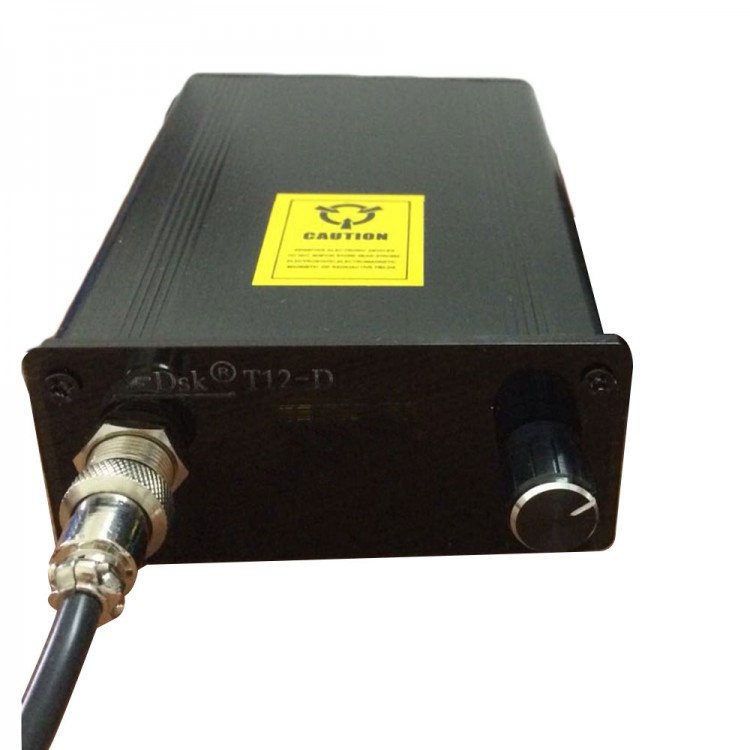

The controller Words with English Display ,5 seconds fast tin, excellent workmanship, quality and stability, strong power, freely adjust the sleep time to 30 minutes, black brushed aluminum casing, black acrylic panels, beautiful appearance, large joints is no longer a problem.

The color of OLED is blue now.

Not include soldering iron stand.

Basic operation
-  Normal mode, the rotary encoder to adjust the temperature, slow turn, every 1 degree grid, fast forward 5 degrees per division.
- Under normal mode,short-press the encoder to enter dormancy, any encoder operation quit ,if the vibration mode is enabled, then the vibration handle to exit Hibernation.
- Normal mode, double-click on the encoder to enter the enhanced mode, any action the encoder exits.
- Sleep mode, press the Mid-button off, power on again or press the power button.
- Normal mode, press the encoder to enter the menu setting mode.
- A long time without entering sleep mode, if not longer into shutdown mode, the two times can be set to enter the menu.

Detailed menu settings meanings:
Tips:The English version of the menu options from the following fourth start, the first three parameters are fixed, so removed.

- The reference voltage, the system in mV. Corresponding to the control board TL431 voltage is consistent, it is recommended to keep the factory parameters.
- The offset voltage. Corresponding to the control board op amp offset voltage, software correction value, the control board using the op amp offset is small, it is recommended to keep the factory parameters.
-Gain adjustment. Corresponding to the control board amplifier magnification, it is recommended to keep the factory parameters.
- The temperature calibration. System for 350 degrees, the global temperature calibration. Other points based linear temperature correction after entering the temperature calibration, corresponding to a professional temperature measurement equipment, slow adjustment parameters until the temperature is 350 degrees for the actual measurement calibration is finished, press Exit.
- The wakeup setting. 0 Do not allow wakeup, 1, vibrations at the handle and encoder operations can wake up the system to sleep. 2, allowing only wake up the system hibernation encoder.
-Sleep time. No action, the system automatically sleep time, in minutes.
- The shutdown time. Sleep, no automatic shutdown wait time in minutes.
- Temperature strengthened. After entering the temperature set to strengthen, increase the temperature set value at the current temperature, in degrees Celsius.
-Strengthening time. After entering the temperature corresponding to strengthen, how long automatic withdrawal temperature enhanced mode. In seconds.
- The alert setup. 1, allowing beep, 0, turn off the buzzer.
- To restore the default. 1 to restore the default parameters, 0 no recovery parameters

Packaging:
- OLED Digital controller with Aluminum case x1
