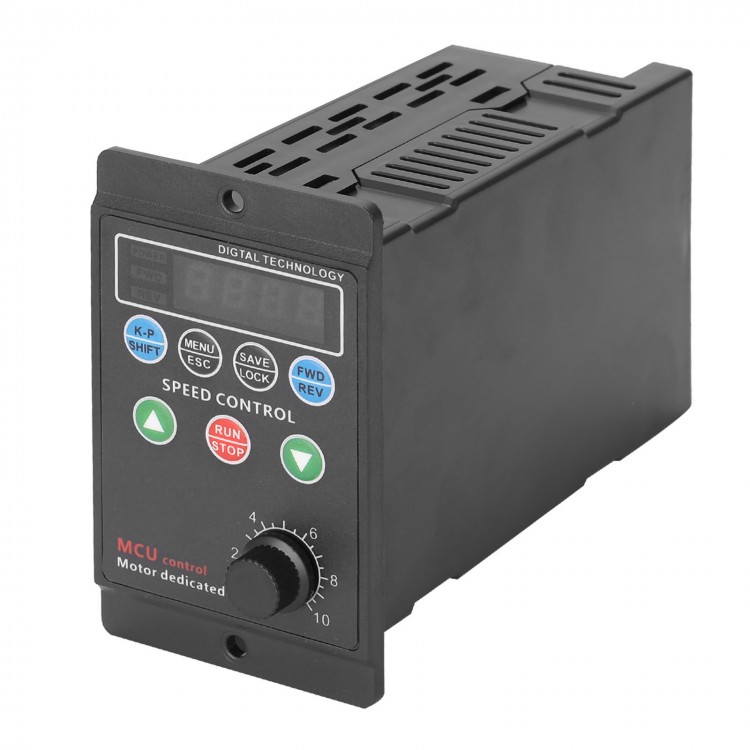

220V Single-phase Input Three-phase Output Motor Driver Frequency Converter with Four-digit Digital Tube Display SVPWM

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.39
  • Price in reward points: 394 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.60 $37.81 $36.63 $35.06 Contact US
Quantity:

220V Single-phase Input Three-phase Output Motor Driver Frequency Converter with Four-digit Digital Tube Display SVPWM


Description:
- The is a single-phase 220 V voltage input frequency converter to drives a three-phase motor (be sure to convert the connection method into a t-riangle type). Four-digit digital tube display, output 1.0-99.0Hz, in order to improve the output voltage, this product uses SVPWM modulation mode, carrier-frequency 8.0KHz. Suitable for motors below 750W, the maximum output power is 1100W.

Features
:
- The is a single-phase 220 V voltage input frequency converter to drives a three-phase motor (be sure to convert the connection method into a t-riangle type).
- Four-digit digital tube display, you can see the data clearly.
- Support display radiator temperature value, current current value, direct current master voltage value, motor speed, operating frequency value.
- Output 1.0-99.0Hz, in order to improve the output voltage, this product uses SVPWM modulation mode, carrier-frequency 8.0KHz.
- The frequency converter can arbitrarily change the V/F curve by setting the V/F compensation frequency and the voltage ratio at the frequency.
- By setting the maximum value of V/F curve, according to the load situation, to maximize the use efficiency of electric energy, reduce the heat of the motor, prolong the servicelife of the motor and frequency converter.
- Low frequency high torque, 220 V single-phase input, 220 V three-phase output, energy saving and electricity saving.
- Overheating and over-voltage protections.

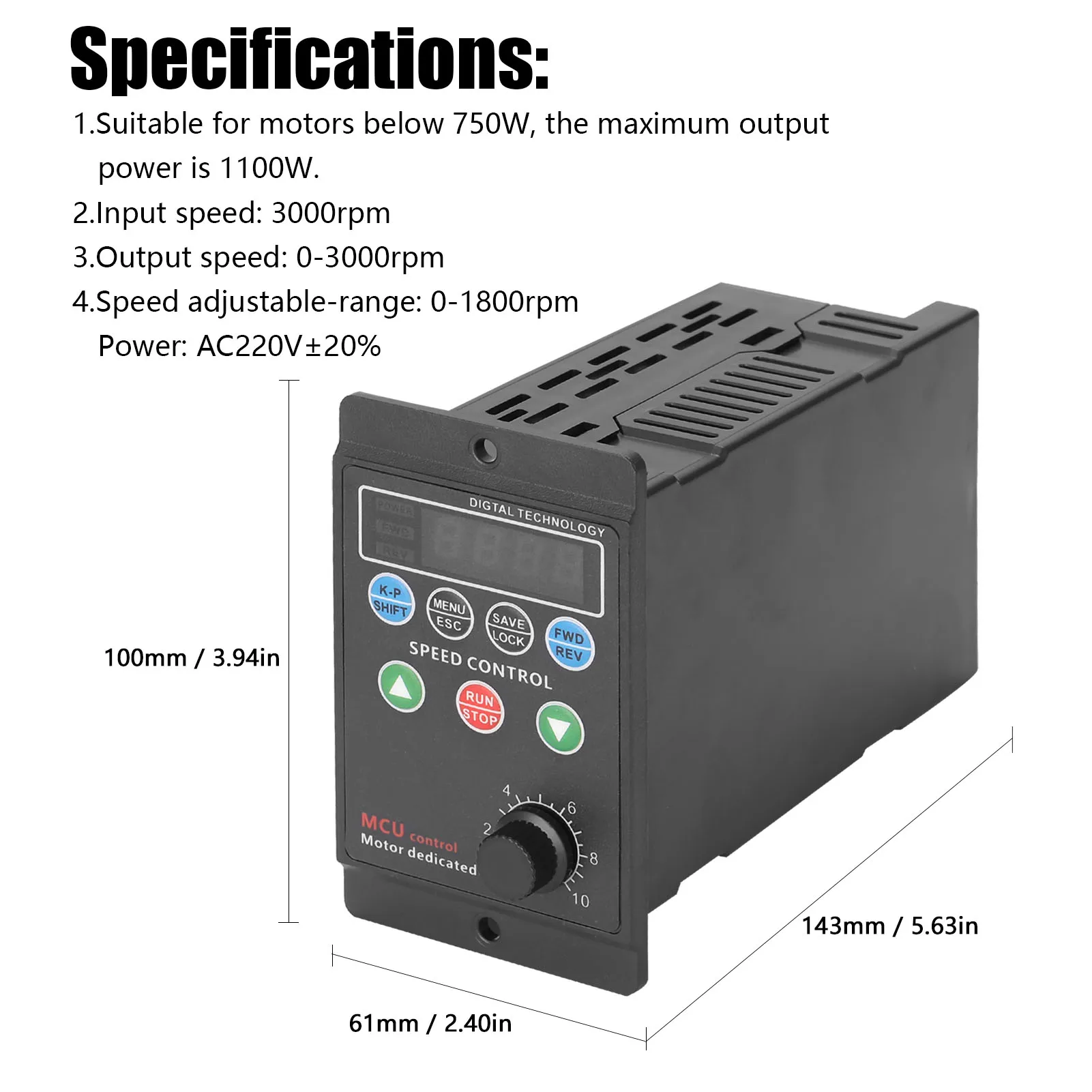

Specifications:
- Name: Frequency Converter
- Material: ABS
- Power: AC220V±20%
- Input speed: 3000rpm
- Output speed: 0-3000rpm
- Speed adjustable-range: 0-1800rpm
- Rated power: 0.75KW
- Temperature: -10℃ to 55℃
- Humidity: 0-65%
- Item size: 143 * 100 * 61mm / 5.63 * 3.94 * 2.40in
- Item weight: 362g / 12.77ounce / 0.80lb
- Package size: 175 * 125 * 78mm / 6.89* 4.92 * 3.07in
- Package weight: 442g / 0.97lb

Packing List:
- 1 * Frequency Converter
