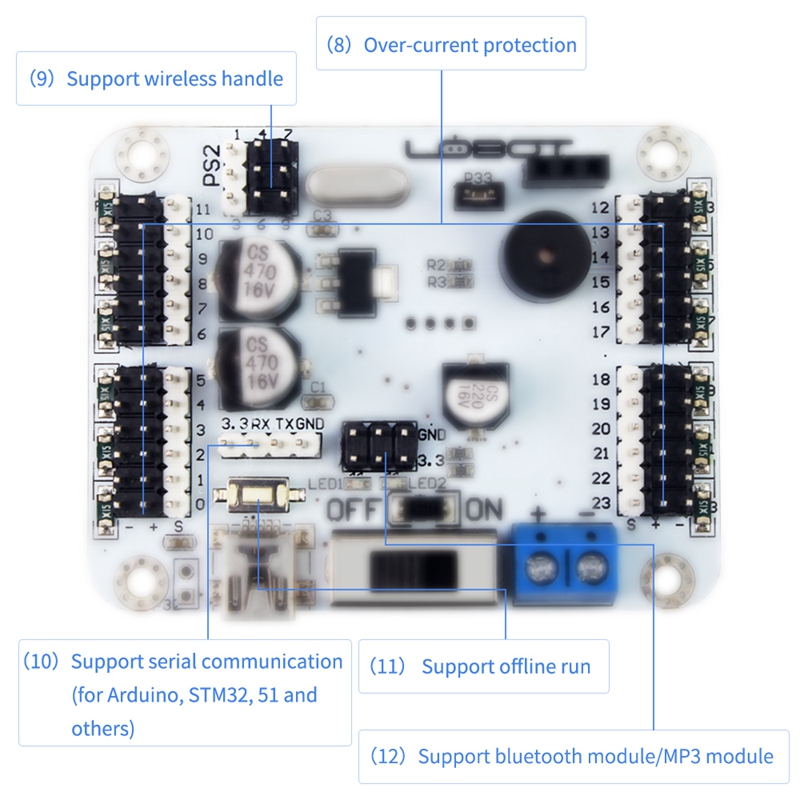

24 Channel Servo Controller Board Offline Operation Support for PS2 Bluetooth MP3 Module

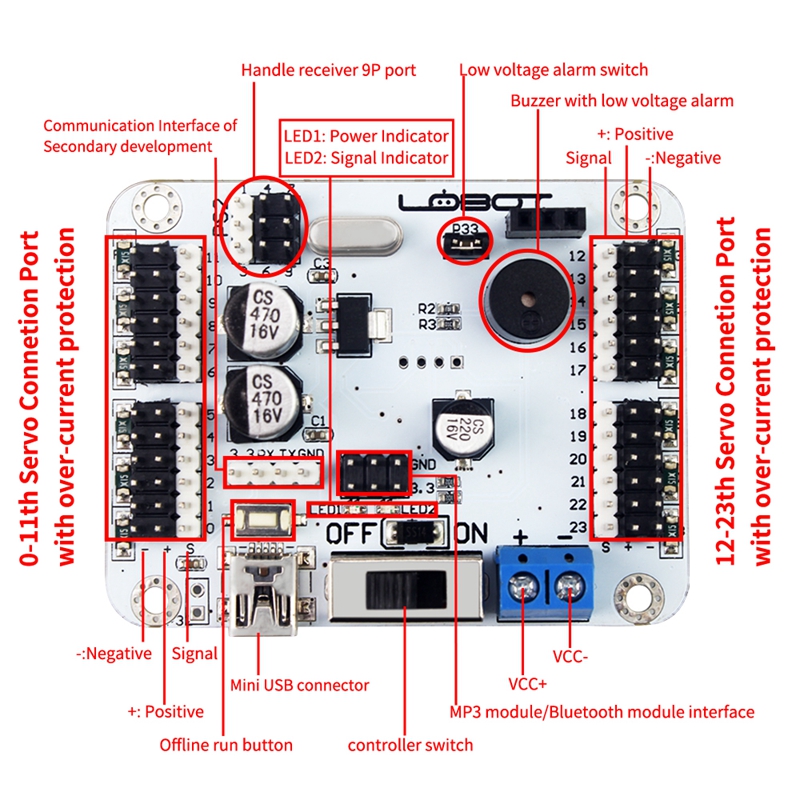

Features:

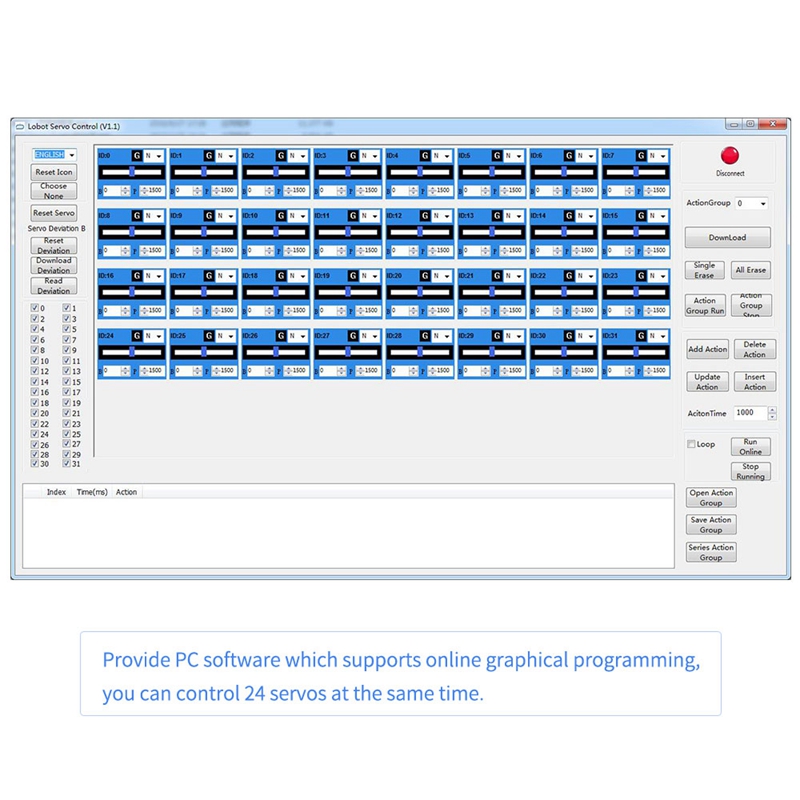

- Support PC online graphical debugging
- 24-Channel over-current protection
- Support TTL communications via serial ports
- Drive-free on PC

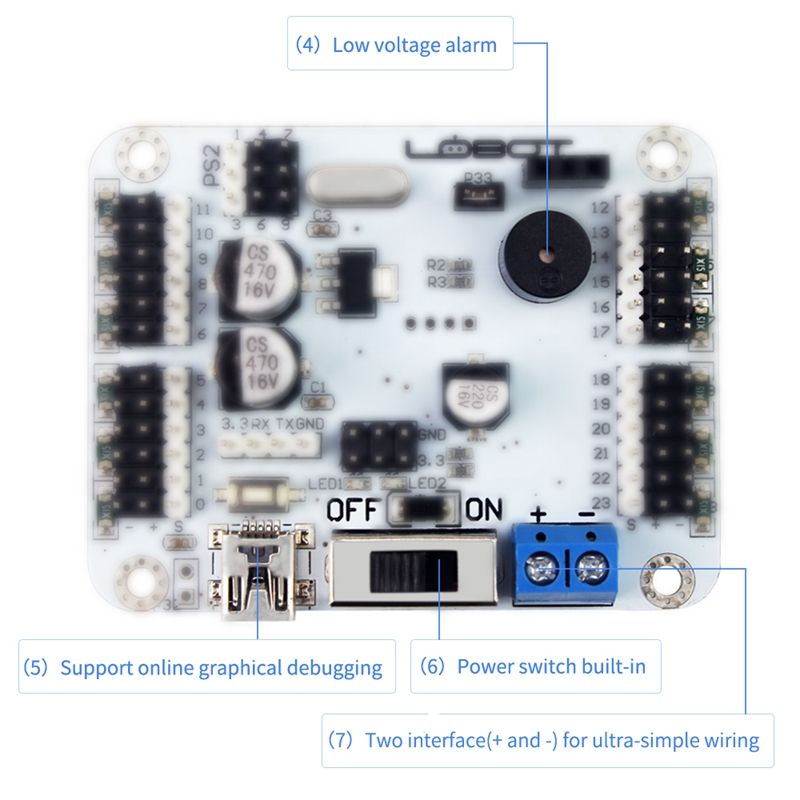

- Low-Voltage Alarm: When the voltage is lower than 5V, a buzzer will remind you of recharging
- Support for offline running: Supports offline operation for one time and offline operation for several times

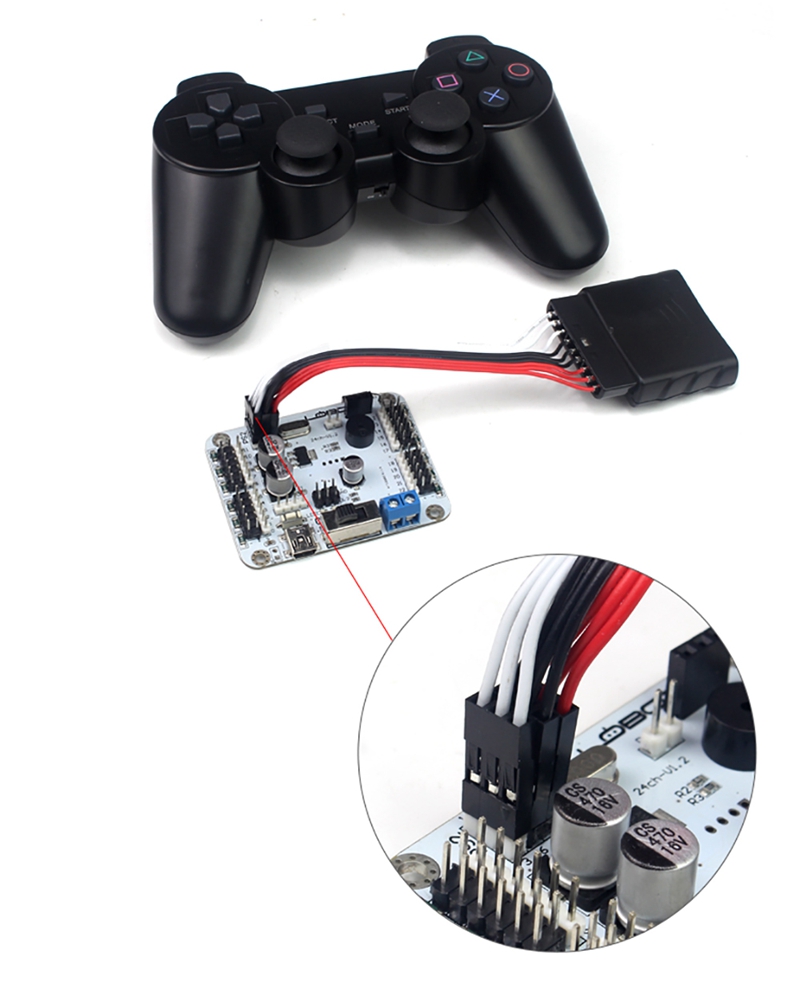

- Support for remote control through PS2 joystick within 10m
- Compatible with external Bluetooth and MP3 Modules
- Abundant learning materials

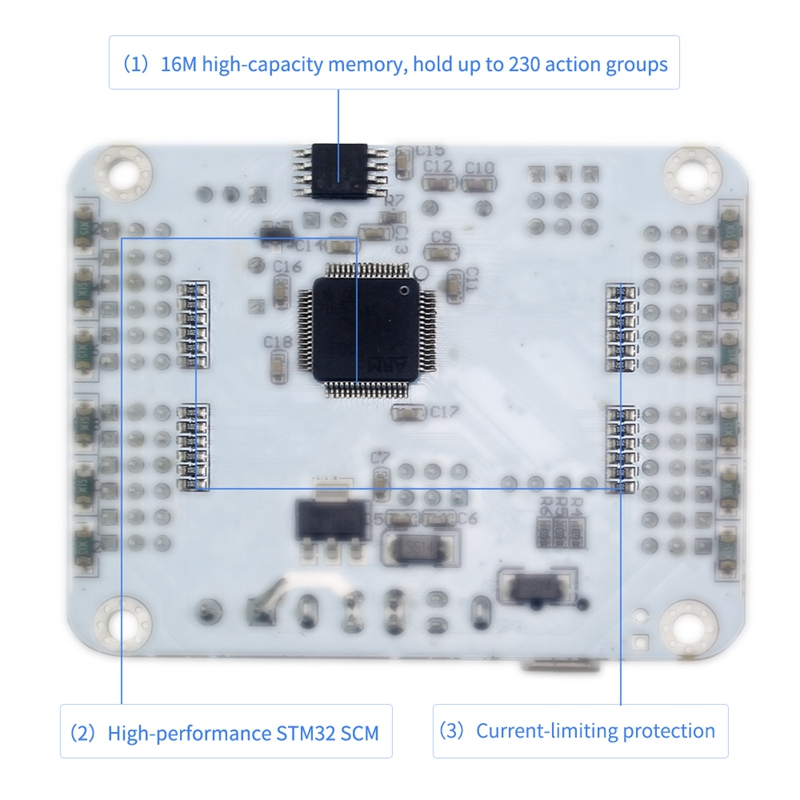

- Precise Control: Quality STM32 micro-controller for accurate control and adjustable speed of servos
- Easy wiring: Just connect it with the positive and negative ends of your power supply

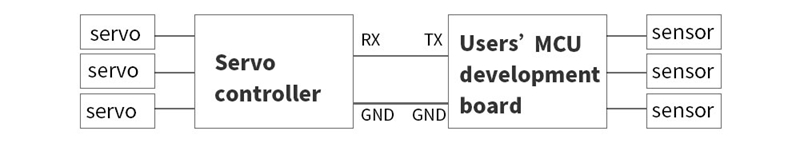

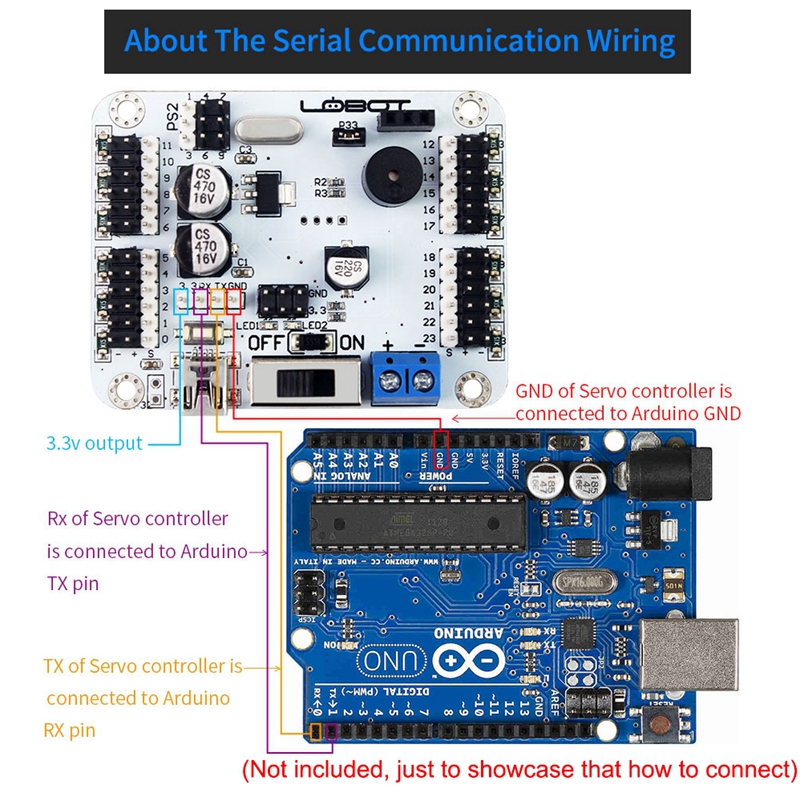

- Serial-Port Communications: The controller is suitable for 51, STM32, Arduino micro-controllers. Some tutorials are provided for secondary development
- 16M memory enables storing action groups up to 230 and each group with 510 actions
- Signal Isolation Protection: It protects CPU from being damaged by current surge
- Languages: Switchable among Simple Chinese, Traditional Chinese, and English
- Full communications protocol is provided, with baud rate 9600 for secondary development
Specifications:
- USB Control: Support
- For PS2 Joystick : Support
- Number of Controlled Servos: 24
- Memory: 16M
- Signal Isolation Protection: Support
- External Micro-controller (Secondary Development): Support
- Low-voltage Alarm: Support
- Built-in Switch: Support
- Over-current Protection: Support
- External Bluetooth Module: Support
- External MP3 Module: Support
- Size: 65 x 50mm
- Hole Spacing: 54 x 44mm
- N.W.: 26g
Package Included:

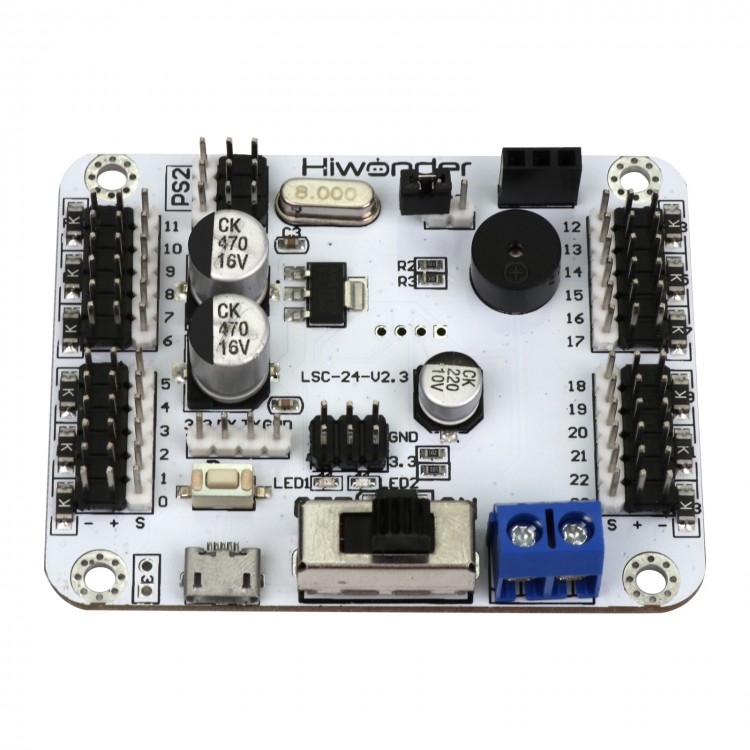

- 1 x 24-Channel Servo Controller Board
Note:
- Provide PC software + operation video + communications protocol!

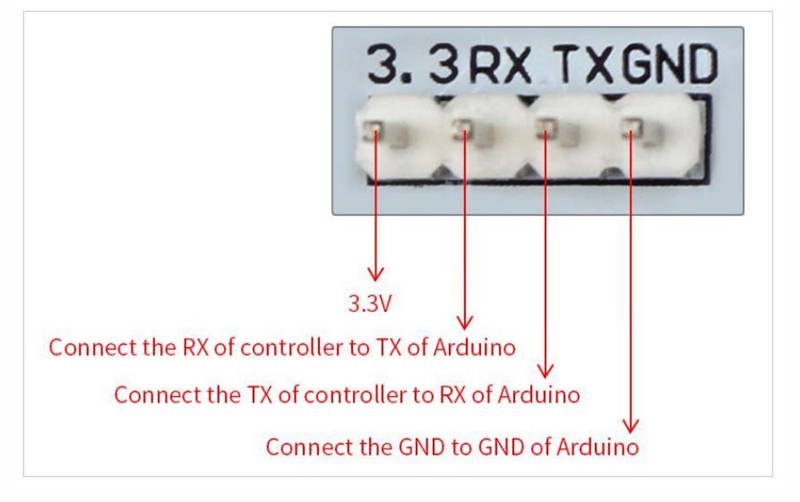

- Provide serial communications learning routines for 51, Arduino and STM32 MCUs!
- Only a servo controller board is included in this package. Others in the the pictures are only for demonstration purposes.
