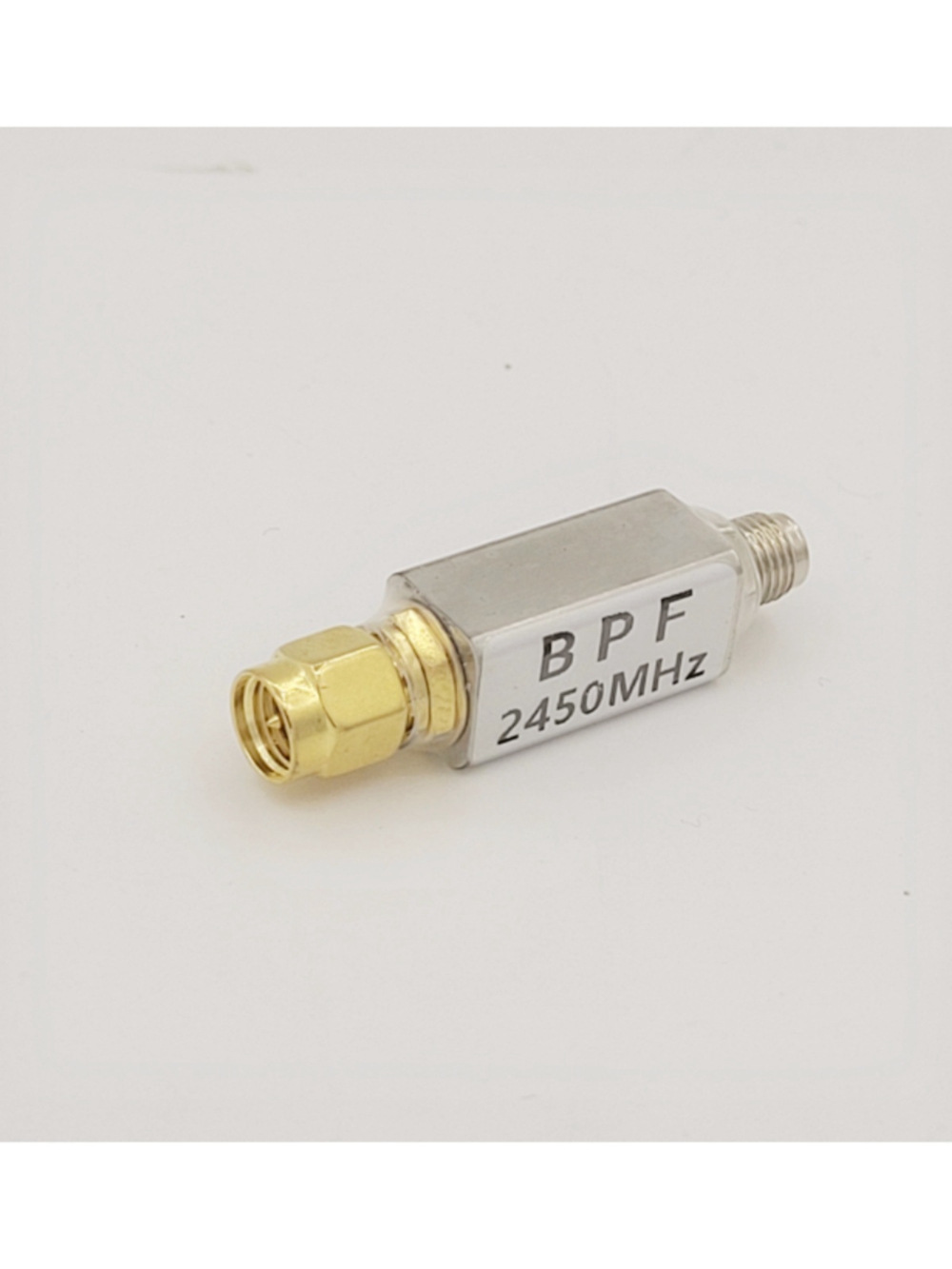

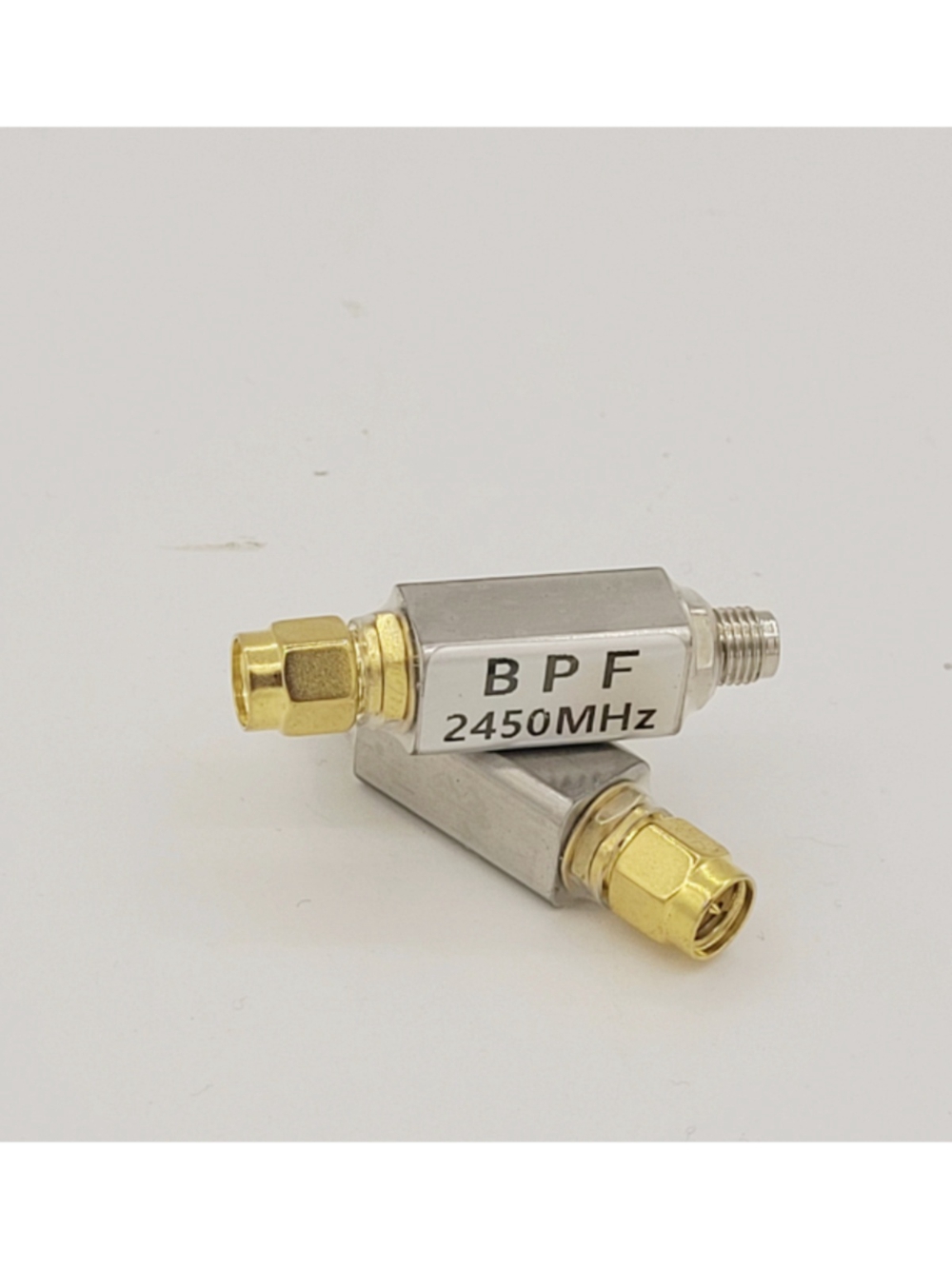

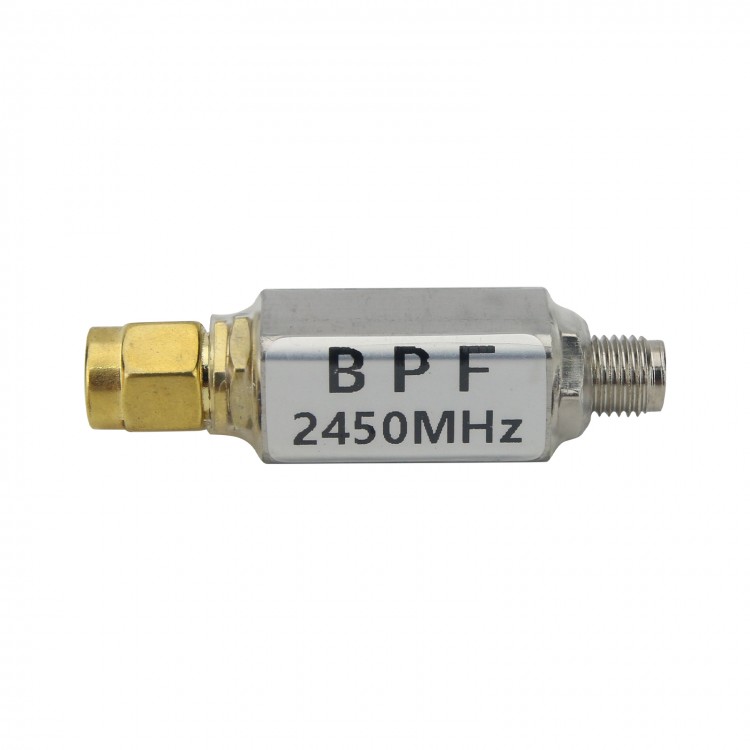

2400MHz/2450MHz BPF Bandpass Filter VTX WiFi Remote Extended Range 2400 - 2483SAW SMA Male + Female Connector
Description:
- This filter has a center frequency of 2450MHz and a bandwidth of 85MHz. It is used for performance optimization of 2.4GHz receivers, and is specifically designed for anti-interference in WiFi, Bluetooth, and for Zigbee systems. It can effectively filter out of band signals, reduce noise, and increase dynamic range.
Specification:
- Impedance: 50ohms
- Centre frequency: 2450MHz
- 1dB bandpass: 2400 ~ 2583MHz
- Distortion: <2dB at 2400 ~ 2583MHz
- Maximum withstand power: 100mW (20dBm)
- Interface: SMA male + female connector
Package Included:
- 1 x Bandpass Filter
