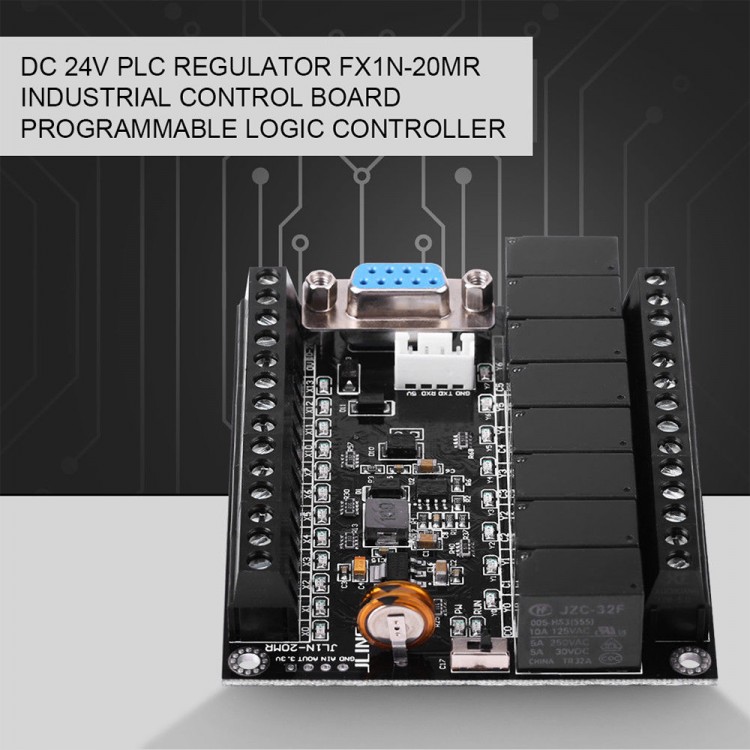

24V PLC FX1N-20MR Industrial Control Board Programmable Logic Controller 32Bit

24V PLC FX1N-20MR Industrial Control Board Programmable Logic Controller 32Bit

Features:
- This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed.
- High quality chip, stable performance, on-line download, on-line monitoring, automatic save when power off.
- Program is written in ladder logic programming language, supports for GX-Developer, GX-work2.
- Programming port is the port for program upload, download, test and monitor.
- It is reusable, stable, easy to learn. The PLC transmission baud rate is 9600.


Specifications:
- Model: FX1N-20mr
- Working Voltage: DC24（V）
- Wide Power Supply Voltage: 10-28VDC
- Baud Rate: 9600
- Programming Software: for GX-Developer, for GX-work2.
- Size: Approx. 86 x 73 x 20mm / 3.4 x 2.9 x 0.7inch
- Weight: 120G

Package Included:
- 1 x PLC Board

Chinese programming software download address:Pan.baidu.com/s/1nty5XXn
PLC data download address: Pan.baidu.com/s/1eRNhn3O

Module function:
- This module is programmable control, can achieve thousands of functions, stable and reliable working performance, built-in watchdog timer circuit, to ensure that the module for a long time to run!!!
Some of the common features are shown as follows:

    Turn on the power supply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds.
    When the power supply is turned on, the relay 1 is switched off after N seconds, and then the relay 2 is closed for N seconds and then is turned off.
    The power supply is switched on, the relay 1, 2 have no action, when a signal or trigger button, relay 1 closed off after N seconds; then relay 2 closed off after N seconds, until the next trigger, repeat the same action.
    Through the signal 1, 2 programming, the control can be achieved on the relay 1 and 2 arbitrarily.
    When the signal 1 has a signal, the relay 1 is closed, the relay 2 is disconnected; when the signal 2 has a signal, the relay 1 is turned off, and the relay 2 is closed.
    Can be connected to the NPN sensor signal, the sensor signal programming, to achieve arbitrary control of the relay.
    When the signal 1 is triggered, the relay 1 is controlled, and when the signal 2 is triggered, the relay 2 is controlled.
    Turn on the power supply, the control motor is turning N seconds, and then reverse N seconds, followed by the cycle.
    When the signal 1 has a signal, the motor is controlled to rotate; when the signal 2 has a signal, the motor is reversed.


These are just some examples, modules can achieve far more than these functions

-  Input high speed pulse C235, C251 and FX1N compatible.
-  Output relay 1A output, Rated current 5A, can directly drive DC solenoid valve, AC solenoid valve, AC contactor, AC motor, etc,.


Precautions for use:

-  The PLC with two programming port. The 232 interface, you can directly use the USB-232 serial port with a computer to download the program directly. The TTL interface.
-  Built-in Analog input AD, corresponding to internal data register D5030.(Not D8030)
- Built-in Analog output DA, corresponding to internal data register D5101.
-  When the PLC need to connect with the touch screen or text, can be used to connect 232 programming port.
