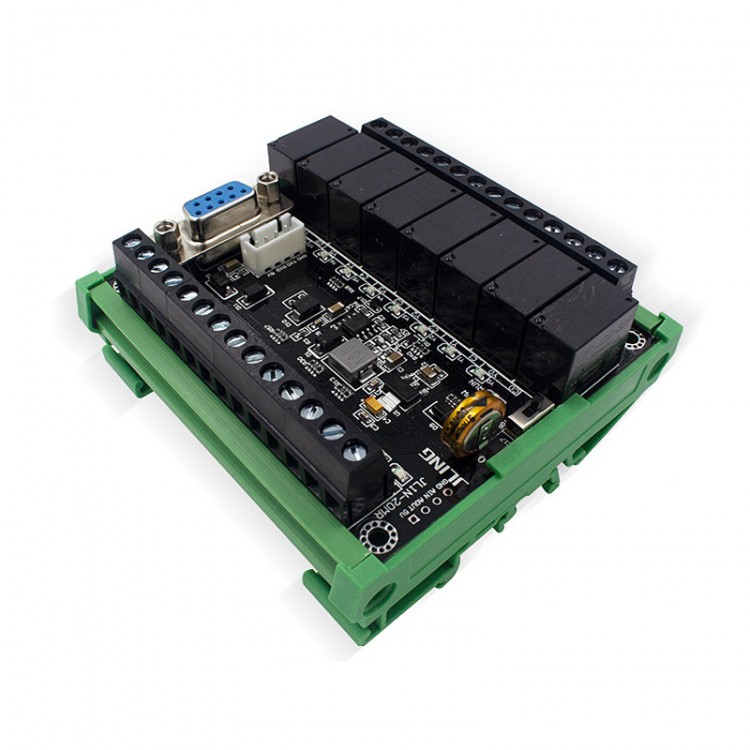

FX1N-20MR-10 PLC Controller Programmable Logic Controller Relay Module Delay Module (With Base)

FX1N-20MR-10 PLC Controller Programmable Logic Controller Relay Module Delay Module (With Base)

Features:
- Original chip
- Stable performance
- Online download
- Online monitoring
- MR Relay: Not support pulse. Can connect AC220 or 28V DC load. Output current up to 5A
- Can be used in various industrial automation control
- Suitable for metallurgy, printing, chemicals, plastics, building materials, home furnishing, packaging, textiles, food

Product Parameters:
- Product name: industrial control board
- Product number: 06000
- Output type: Relay output
- Input points: 12 points
- Output points: 8 points
- Supply voltage: 28V DC
- Output current: 5A
- Analog input: None
- Analog output: None
- High-speed counting: 2-channel 10K
- Pulse output: None
- Floating point: Not support
- Stepper motor: Not support
- Memory capacity: 8000 steps
- Download method: Direct download
- RS485 communication port: None
- For MODBUS: None
- Connect text screen: support
- Connect the touch screen: support
- Programming software: For GX Developer or GX Works2
- Installation method: fixed isolation column installation

Soft Element:
- Intermediate relay M: M0-M3071, power-down storage range can be set
- Step point S: S0-1023, power-down saving range can be set to S0-S1023
- 100MS timer: T0-T199, accumulative power-down save T184-T199
- 10MS timer: T200-T249, accumulative power-off save T246-T249
- 1MS timer: T250-T383, of which T250-255 is cumulative
- 16-bit counter: C0-C199, save C100-199 when power off
- 32-bit counter: C200-C219, save C220-C234 when power off
- 32-bit high-speed counter:
C235-255; C235-240 is a single-phase counter without frequency multiplication;
C241-240 is a single-phase counter, 2 times the frequency;
C247-249 is a two-phase counter without frequency multiplication;
C250-252 is a two-phase counter, 2 times the frequency;
C253-255 is a two-phase counter, 4 times the frequency;
- Register D: D0-D7999, the saving range can be set to D0-7999 after power-off
- Indirect addressing pointer V, Z: V0-7, Z0-7
- P subroutine jump number: P0-63
- I Interrupt: X0-5 external interrupt. Timer interrupt (1MS as a unit). The counter is interrupted.
- Special M element: M8000 is normally closed when running, M8002 is power-on pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse, M8013 is 1s pulse, and M8014 is minute pulse.

Package Included:
- 1 x Set of PLC Relay Module

Note: Programming cable is not included. Please purchase separately. Thank you!



How To Fix:
The installation method of PLC: The installation method used is to fix the rubber particles on the drill hole. Each PLC board has holes on the four corners for installation. Each board is equipped with 4pcs PC board isolation columns.
