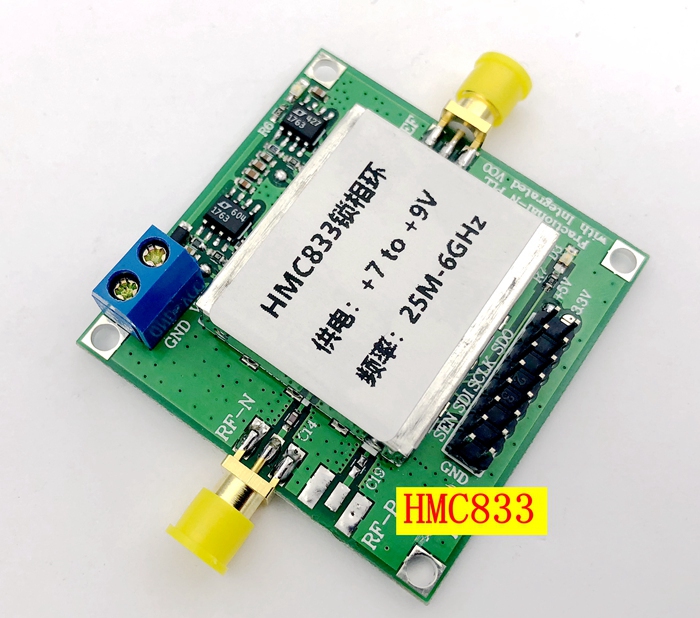

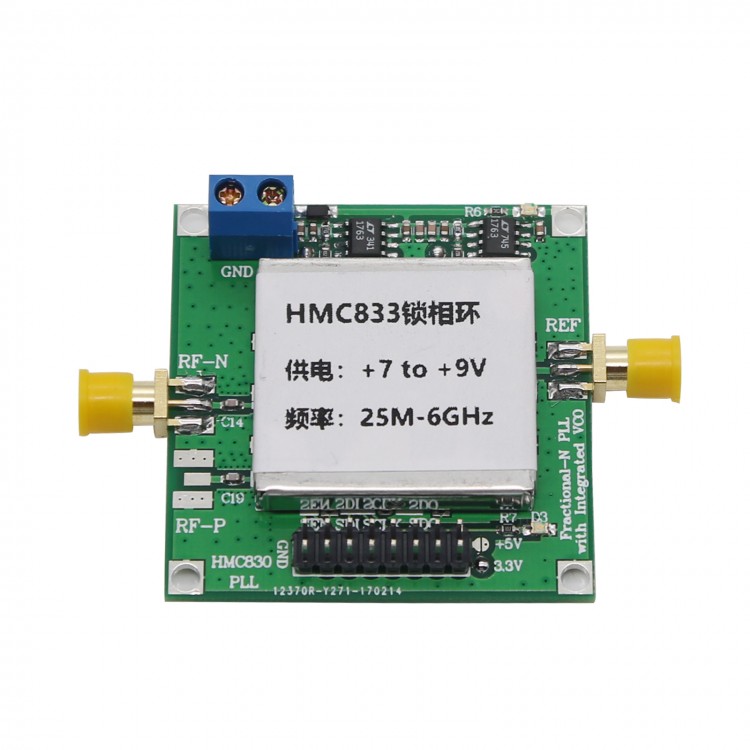

25MHz-6GHz HMC833 Phase-Locked Loop Module RF Signal Generator 7V to 9V HMC833 Core Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$64.45
  • Price in reward points: 645 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.16 $61.87 $59.94 $57.36 Contact US
Quantity:

25MHz-6GHz HMC833 Phase-Locked Loop Module RF Signal Generator 7V to 9V HMC833 Core Board

Description
:
The HMC833LP6GE is a low noise, wideband, fractional-N phase-locked loop (PLL) with an integrated voltage-controlled oscillator (VCO) with a fundamental frequency range of 1500 MHz - 3000 MHz and an integrated VCO output divider (1/ 2/4/6.../60/62 divided by frequency) and frequency multiplier. The HMC833LP6GE is supported to generate frequencies from 25 MHz to 6,000 MHz. Integrated phase detectors (PDs) and sigma-delta modulators operate at frequencies up to 100 MHz for wider loop bandwidth and superior spectral performance.

The HMC833LP6GE delivers industry-leading phase noise and spurious performance at all frequencies to minimize blocking effects and improve receiver sensitivity and transmitter spectral purity. The HMC833LP6GE has excellent performance (< -170 dBc/Hz) and is ideal for a variety of applications, such as LO for RF mixers, clock source for high frequency data converters, or ultra-low spurious applications like tunable voltage reference.

Other features of the HMC833LP6GE: RF output power control from 0 to 9 dB (3 dB steps), output mute function, andΔ-Σmodulator. The device's precise frequency mode allows the user to generate an output frequency with a 0 Hz frequency error.

Application:

- Cellular Communications Infrastructure
- Microwave Radio
- For WiMax, WiFi
- Communications Test Equipment
- Cable TV Equipment
- DDS Replacement
- Military
- Tunable Reference Source for Spurious Free Performance

Package Included:
- 1 x HMC833 Core Board
