| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $170.77 | $167.28 | $162.05 | $155.08 | Contact US |

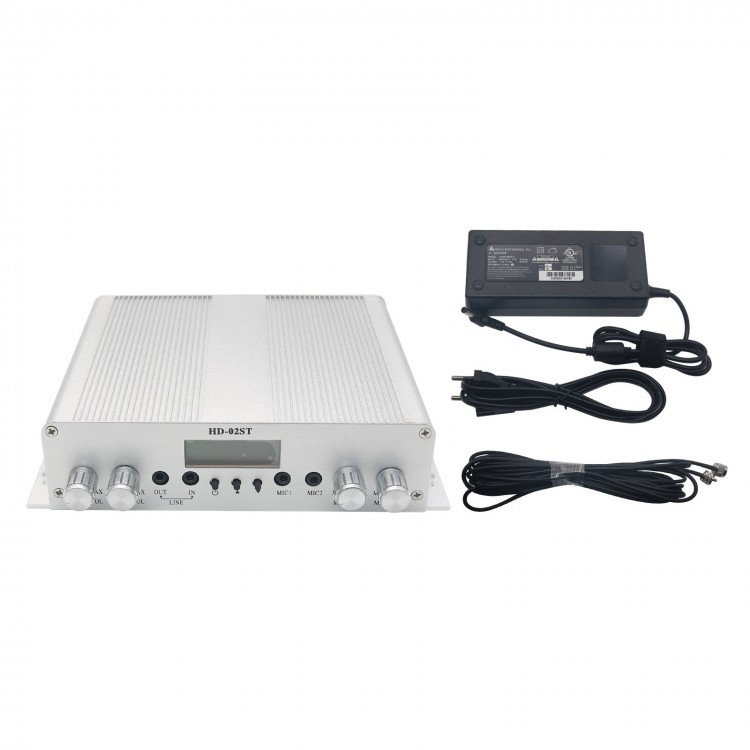

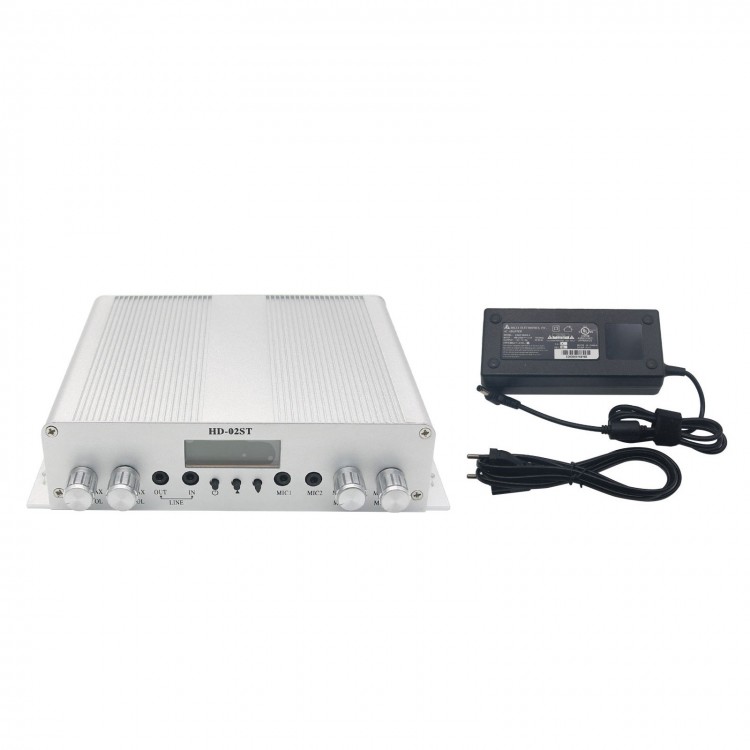

25W Professional FM Transmitter Stereo PLL Broadcast Radio Station with DC Power Supply
Description:
- 15W-25W FM stereo PLL broadcast transmitter radio station + DC Power
- Connector: There are 3 types antenna interface for this product, BCN, TNC & NJ interface.
- Default shipping item is with BNC interface.
- To make sure you can use this product, before your purchasing, please tell us your transmitter's model number so that we can send you the right item with correct antenna interface. Many thanks! e.g:
CZH-05B, CZH-5C, CZH-7C, CZH-15A: BNC type interface;
CZH-01A, CZH-15B: TNC type interface;
CZH-10A: NJ type interface.
Specification:
- Dual MIC / 4-way adjustable volume /
- DC input: 2.5mm
- Input voltage: DC12V - 13.8V
- Operating current: 2.5A
- Frequency: 88.0 ~ 108.0MHz
- Modulation: WFM
- Frequency step: 0.1MHz
- Frequency stabilization method: PLL
- Deviation: ±75KHz
- RF output: 15W-25W (Max 25W )
- Output impedance: 50Ω
- Harmonic radiation: -60db
- Frequency response: 50 ~ 1500Hz
- Distortion: 0.2%
- Pre-emphasis delay: 50us
- Stereo separation: 40db
- Input level: -15dbV
- Input impedance: 50KΩ
- SNR: 65db
- Match the microphone: ECM mice
- Size: 197 x 122 x 45mm
- Color: Silver
Package Included:
- 1 x FM Transmitter
- 1 x Power Supply
