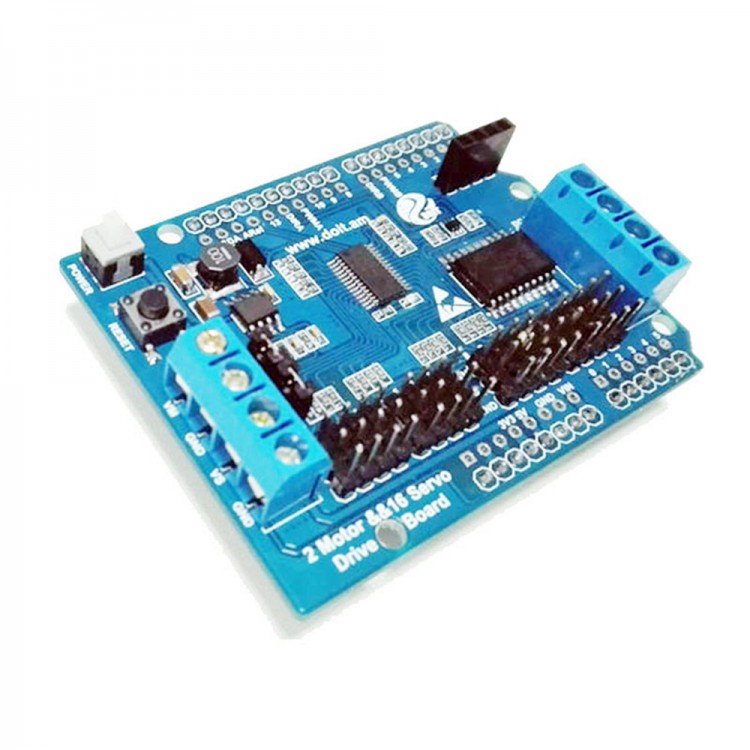

2CH Motor + 16CH Servo Drive Shield for Arudino UNO Robot Mechanical Arm Car Chassis

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.48
  • Price in reward points: 155 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.17 $14.86 $14.40 $13.78 Contact US
Quantity:

2CH Motor + 16CH Servo Drive Shield for Arudino UNO Robot  Mechanical Arm Car Chassis

Description:

2 Motor & 16 Servo Drive Shield is motor and servo drive module compatible with Arduino UNO and ESPduino. Can be directly connected to the Arduino UNO board or ESPduino board.It can control 2 channels DC motor (4.5-36V) and 16 channels servo (5-18V), for mechanical arm  robot.

Full bridge hip L293DD, can drive directly 2 cahnnels DC motor or 1 channel stepper motor. The drive curret is up to 1.2A.

The module adopts IO port of Arduino UNO and ESPDUINO as control port. For smart robot control, or wifi control.

More information: Click here

Specification:
- Power Supply: Motor Power(VM):4.5V-36V;
- Servo Power(VIN):5-18V;
- Single Power:Short VM and VIN,(Motor control only,6-18V);
- Short circuit VS and VIN, control servo only(6-18V);
- Short circuit  VM and VIN,and short circuit  VS and 5V. control (6-18V)and 16 channels 5V servos  .
- Motor drive current:≤1.2A;
- Power:4W(T=90 deg C)
- Control Signal input level:High level:2.3V≤VIH≤VIN;Low level:-0.3V≤VIL≤1.5V
- Operating Temperature:-25-125 deg C
- DriveType:Dual channel H-Bridge
- Weight: About 46g

Package List:
- 1 x 2CH Motor + 16CH Servo Drive Shield
